Groundnut oil making plant machine

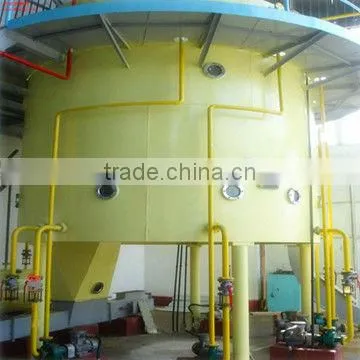

Rotocel Extractor Process Features
1.adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good extraction effect;
2. The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;
3. The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level, which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.
4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal, improve the miscella concentration and save energy by reducing the evaporation capacity.
5. The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella, improve the quality of crude oil and reduce the evaporation system scaling.
6. Specially suitable for the extraction of various pre-pressed meals.
Main Economic and Technical Parameters of Rotocel Extractor (take 300T groundnut extraction as an example)
Capacity | 300T/D |
Residual oil in meal | ≤ 1% |
Solvent consumption | ≤ 2Kg/T (No.6 solvent oil) |
Crude oil moisture and volatile matter | ≤ 0.30% |
Power consumption | ≤ 15KWh/T |
Steam consumption | ≤ 280KG/T (0.8MPa) |
Finished meal moisture | ≤ 13% (adjustable) |
Residual solvent in finished meal | ≤300PPM (qualified detonated experiment) |
Groundnut Oil Extraction Equipment
Groundnut oil Towline ExtractorProcess Features
1) The material is divided into several independent units on the material bed, which can effectively prevent miscella at all levels from fleeing hither and thither on the material layer and ensure the concentration gradient between several sprays.
2) Immersion area appears in each lattice, which can help achieve better immersion effect.
3) The chain box is supported by track and can prolong the service life of screen deck by not touching it.
4) The towline extractor is driven by world leading double-shaft hydraulic motor, with balance force, reliable operation and less maintenance cost.
5) Specialty suitable for the extraction of high oil and high power materials, and better immersion effect can be expected for ordinary oil plants.
Main Economic and Technical Parameters of Towline Extractor (take 500T/D as an example)
Steam consumption | ≤ 280kg/t (groundnut) |
Power consumption | installed capacity 320KW |
Solvent consumption | ≤ 4kg/t (No.6 solvent) |
Residual oil in meal | ≤ 1.0% |
Moisture in meal | 12~13% (adjustable) |
Solvent in meal | ≤ 500ppm |
Urase activity | 0.05-0.25 ( meal) |
Total volatile matter | ≤ 0.3% |
Residual solvent | ≤ 300ppm |
Mechanical impurities | ≤ 0.2% |
Interested in groundnut oil making plant machine ?
Xin Xiang JinXin Chemical Equipment Co .,Ltd will provide best professional SOLUTION
and high quality groundnut oil making plant machine for you.
any groundnut oil making plant machine,please call us.
