Specifications
Oil Mill Plant1. Fully automated operation PLC
2. Installation and training included
3. Solvent condensing rec
Full Automatic Oil Mill Plant Line of Corn Oil Machine with ISO9001
Contact Me
Name: Sarah
Skype: goldjinxin05
Mobile: 86 15824871876
About us

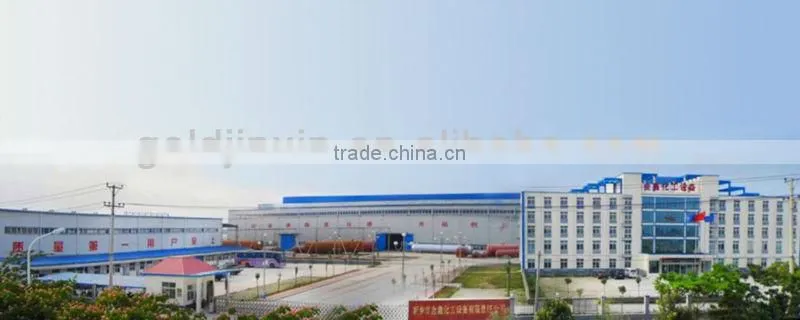

Our company is a manufacturer of all kinds of oil production line equipment; Our company was established in 1989. We have a big plant and have rich experience in this field. We have exported to many countries like Egypt, Chile, Argentina, Ethiopia, Zambia, Nigeria, Russia and Turkey ect.
Introduction of Corn Oil Machine
Our production complete line adapts to many kinds of oil seeds. We can provide all the plants include oil pre-treatment/ presser/ oil leaching technology, refining and packing line;

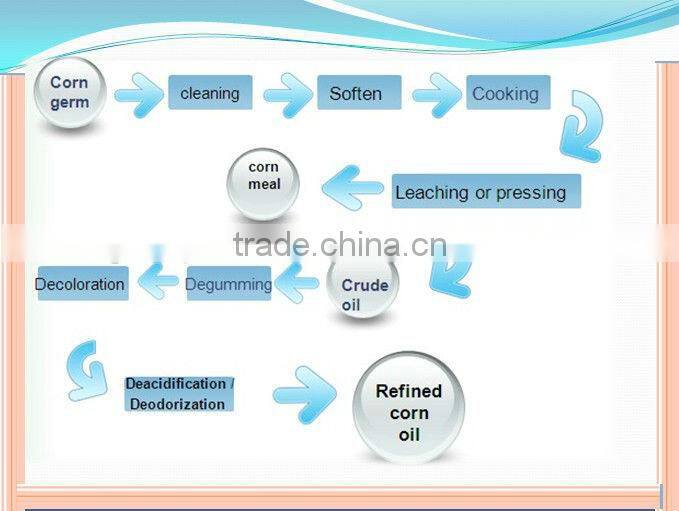

Technology Process of Corn Oil Machine :
Palm fruit, palm kernel, coconut, cashew, avocado, tiger nut, peanuts, rapeseeds, soybeans, castor oil plant, sesame seeds, benne seeds, sunflower seeds, cotton seeds, tea seeds, Tung seeds and etc.

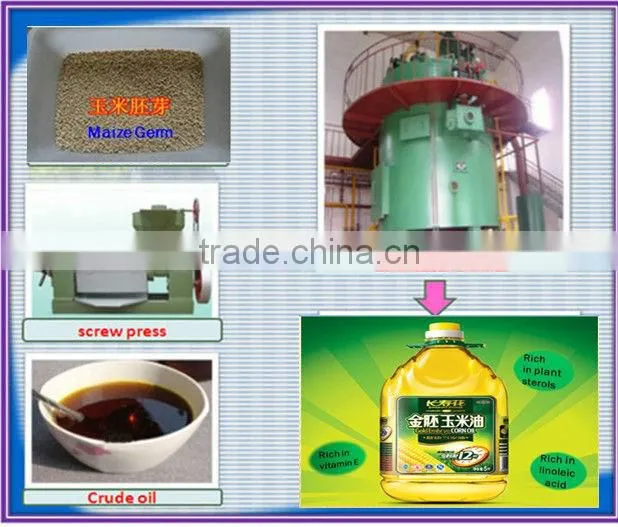

Raw material ---degerming ---cleaning (magnetic separation removing ironstoning machine) ---soften---flaking---cooking---pressing
Main parts of Corn Oil Machine
1. Leaching Section Processing of Corn Oil Machine :
(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.
(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.
(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.

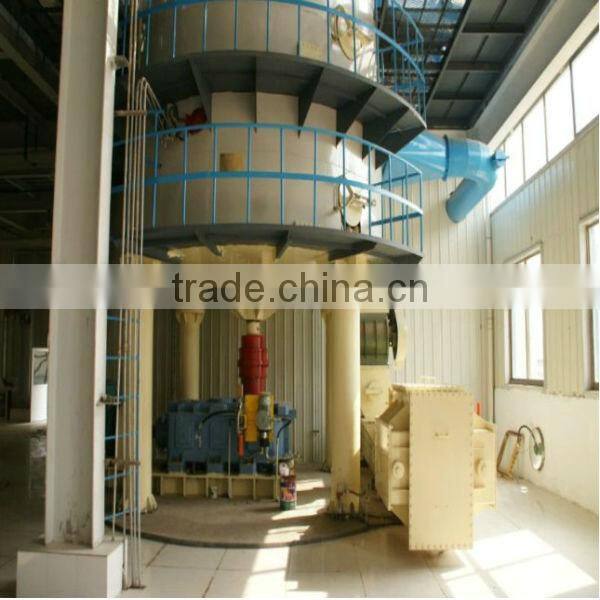

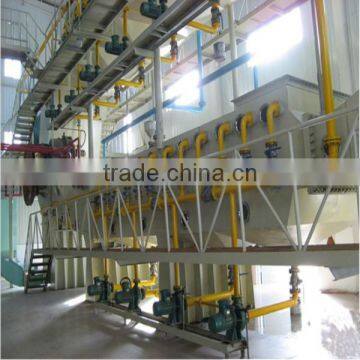

Extraction Equipment of Corn Oil Machine
2. Refining Section of Corn Oil Machine

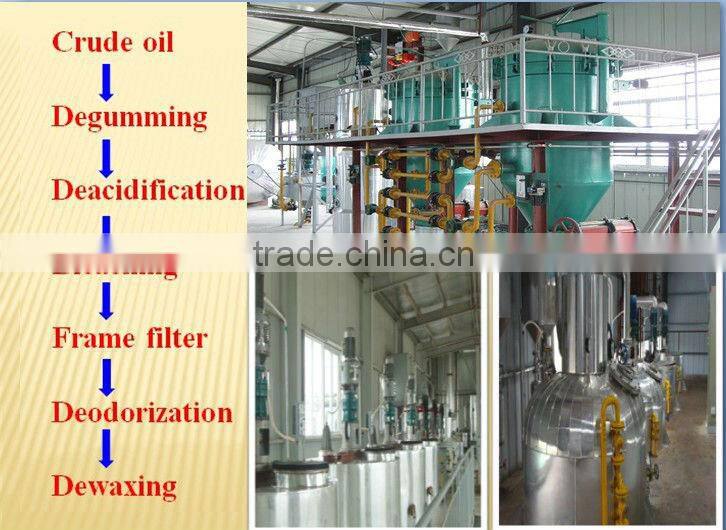

The main processing of Corn Oil Machine

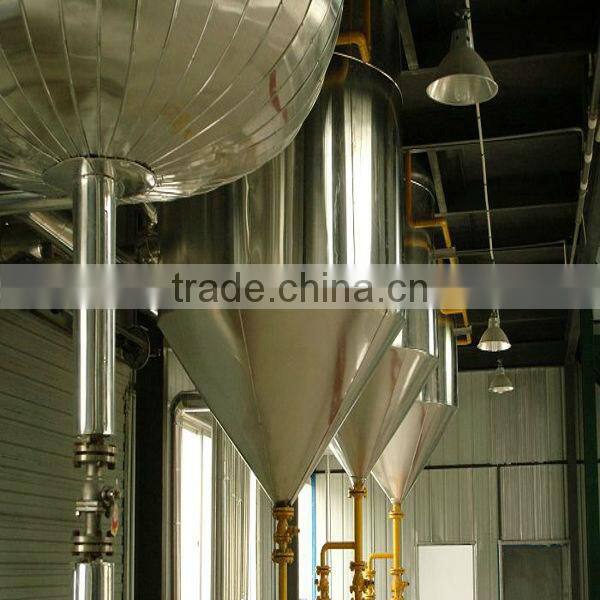

The refining section main parts of Corn Oil Machine
1. Deacidification tank, used for acid refining, alkali refining and hydration
2. Bleaching pot, used for removing off pigments, bleaching oils and grease dehydrate
3. Deodorization pot, used for removing fatty acid and other rare delicacy high efficiently
4. Conduction oil heater, used for providing the heat energy
5. The vacuum pump, used for providing vacuum for bleaching, deodorization which can reach 755mmHg or more
6. Air compressor, used for drying bleaching earth
7. Pressure filter, used for filtering bleaching earth
8. Steam jet ejector pump, providing steam for Deodorization and distillation
At last these kinds of corn oil making machine make the oil reach the standard level national edible oil.
3. The Main Technical Date of Corn Oil Machine
Capacity | 300T/D |
Residual oil in meal | Less than 1% (soybean) |
Solvent consumption | Less than 2Kg/T (No.6 solvent oil) |
Crude oil moisture and volatile matter | Less than 0.30% |
Power consumption | Less than 10KWh/T |
Steam consumption | Less than 500KG/T |
Finished meal moisture | Less than 13% (adjustable) |
Residual solvent in finished meal | Less than 300PPM (qualified detonated experiment) |

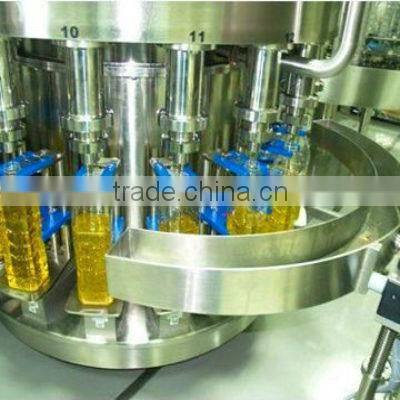

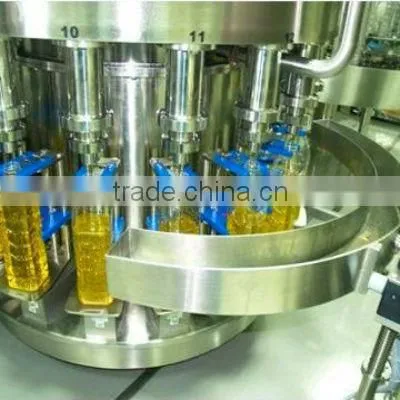

4. Full automatic filling
5. Nutritional Value of Corn Oil
l Rich in rich in vitamin E.
l Rich in plant phytosterols to reduce cholesterol levels
l Rich in linoleic acid. The efficacy of linoleic acid to the human body is softening blood vessels, promoting blood circulation, lowering blood pressure
6. After sale service
l Product quality assurance
Products from the quality of raw materials, production, process design, parts processing, production processes, quality control, assembly quality inspection, all-round quality management to ensure that the factory pass rate of 100%.
l Manufacturers supply spare parts
Long-term provision of spare parts according to the factory ,the company has specialized accessories Sales Department ,through a variety of channels of logistics and the post office ,timely and accurate will you need accessories delivered to you .
l Provide support
Company technical personnel arrangements free on-site installation and commissioning of the machine, Provide technical training and free, Allows you to easily get started.
Our factory mainly produce edible oil refinery machine,
edible oil solvent extraction machine, etc.
Any questions about the machine pls contact me!
