Best Price Automatic machine for crude sunflower oil price
Raw material of crude sunflower oil price
Parameters of crude sunflower oil price :
Steam consumption | 450KG/T oil |
Electric consumption | 28Kwh/T oil |
Phosphoric acid | 2~3 kg/T oil |
Circulating water cooling water yield | 150m³/H
|
Bleaching earth consumption | 5~50Kg/T oil |
Waste bleaching earth oil content | <35% |
Deodorization loss consumption | ≤0.5% |
Main parts of crude sunflower oil price :
(1)Solvent pumps:continuously spray solvent to the rotary-type extractor

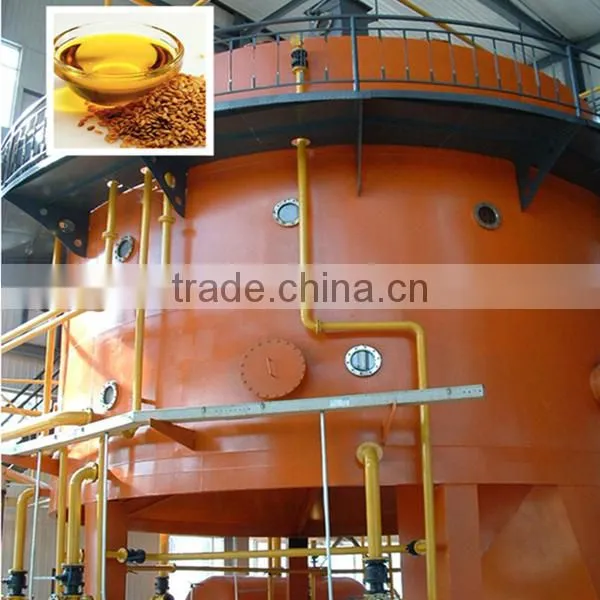

(2)Roary extractor:Spray and soak the prepressed cake with solvent so that oil fats can be dissolved in solvent(form miscella). After processing, you can get wet meal and micella (mixed oil).
(3)DTDC:Used to separate the solvent from the wet meal.
(4)Miscellanous tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10
saline water to it. The phospholipid and impurities in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying
.
(5)Miscella tank 2nd: the purified miscella will be pumped into it.
(6)Miscella stripping:it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
(7)Condensers:used to cooling the solvent gas separated from the wet meal and miscella for recycling.
Instruction of crude sunflower oil price :
a. Cleaning device:remove the raw material peanut in various impurities, such as: iron,
stones, clump, such as the plant leaf, clean up till impurity content does not exceed 0.2%.
b.Crushing machine: peanut is crushed into 6-8 pieces. In order to meet the requirements
of crushing, the peanut is suitable for crushing with the moisture of 7% to 12%.
c. Softening process:the purpose of softening is to adjust the moisture and temperature
of oil, and make it soft.
d.Flaking process: rolling raw material into flakes, and the purpose is to increae surface
area, destroy the peanut cell tissue, shorten the way of oil out from cake.
e:Cooking process: use steam cooking, inject direct steam and cook the flakes to meet the
requirement of oil press.
f.Pre-press: press the flakes to leave about 16%-18% in the cake. The cake will go to extraction
process.

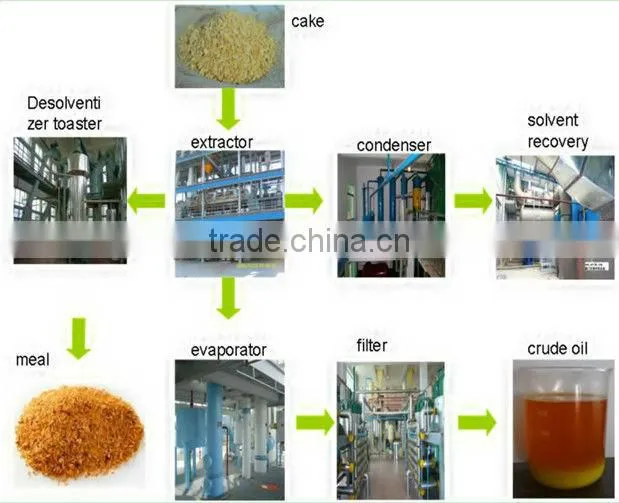

Extraction process:
1. Solvent pumps: continuously spray solvent to the rotary-type extractor
2. Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be diss-olved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).
3. DTDC: usd to separate the solvent from the wet meal.
4. Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st, then add saline
water to it. The phospholipid in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5. Miscella tank 2nd: the purified miscella will be pumped into it.
6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be
discharged to condenser for recycling.
7. Condensers: to cooling the solvent gas separated from the wet meal and miscella for recycling.

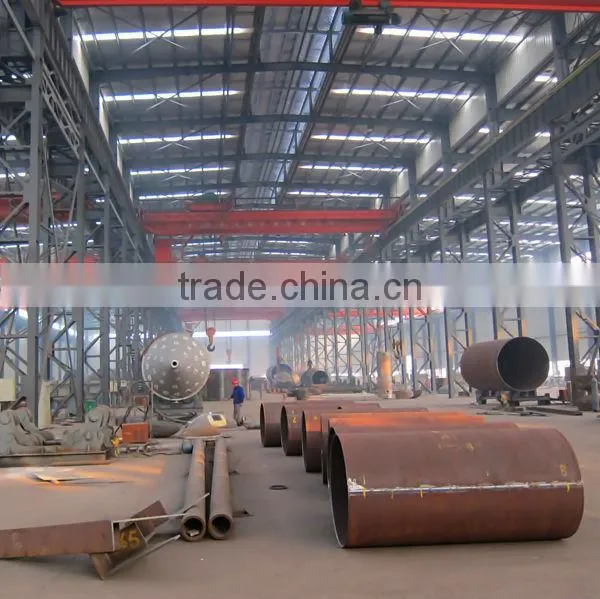

Our workshop
Packaging site
If you are interested in our machine, Please click "SEND" to contact with us, or email me by above information.
