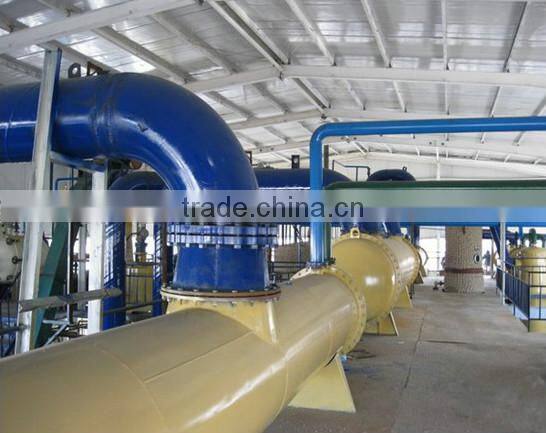

50-200TPD China cotton oil mill in gujarat with CE Approved

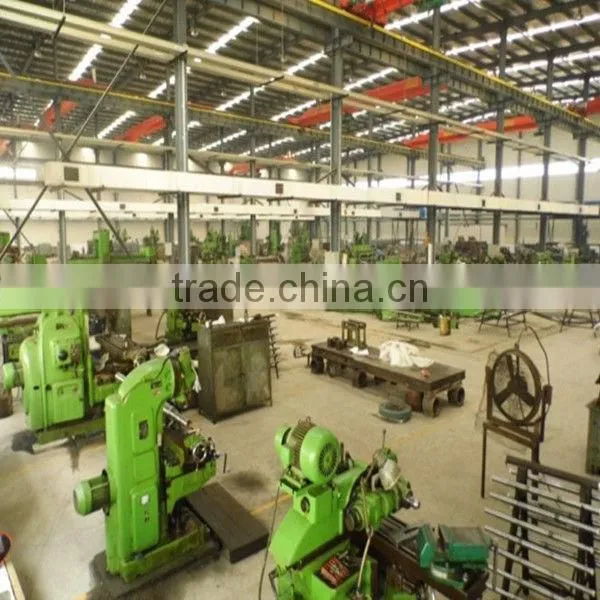

Our workshop
Our company is a manufacturer of all kinds of oil production line equipment; Our company was established in 1989. We have a big plant and have rich experience in this field. We have exported to many countries like Egypt, Chile, Argentina, Ethiopia, Zambia, Nigeria, Russia and Turkey ect.
Click Here learn more about our factory
Introduction
1) Function: Cotton Seed Oil Extraction Machine is an oil extractor through soaking or spraying pre-pressed cake by a certain organic solvent. The principle of this part is the different solubility of solvent.
2) Use range: Cotton Seed Oil Extraction Machine fits for pre-press extraction of high-oil- content materials and direct once time extraction of low-oil-content materials.
3) Main parts: Cotton Seed Oil Extraction Machine series includes rotary extractor, toaster, 1st evaporator, 2nd evaporator, stripping tower, condenser, etc.

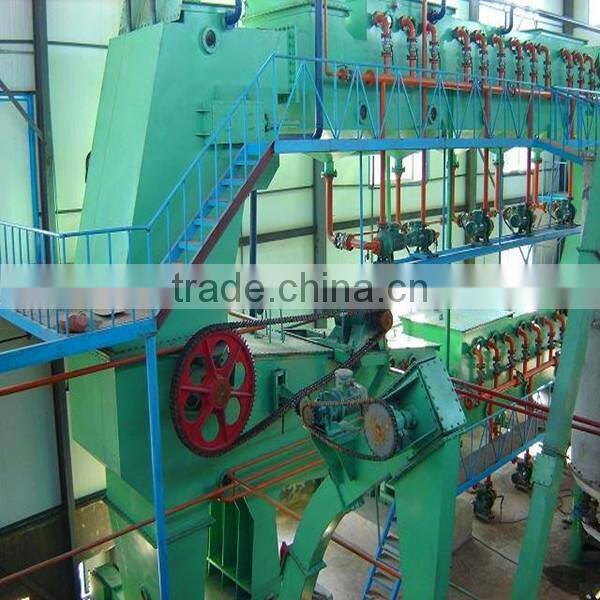

2. Main parts of Cotton Seed Oil Extraction Machine 1) Solvent pumps: continuously spray solvent to the rotary-type extractor.
2) Rotary extractor: spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent (form miscella). After processing, you can get wet meal and miscella (mixed oil).
3) DTDC: used to separate the solvent from the wet meal.
4) Miscella tank 1st: pump the miscella (oil with solvent) into the miscella 1st, then add 10% saline water to it. The phospholipids and impurities in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.
5) Miscella tank 2nd: the purified miscella will be pumped into it.
6) Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
7) Condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.
Main Process
1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
2) Meal is send to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.
3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.
4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.
Advantages
1) High oil yield, obvious economic benefit.
2) Less residual oil rate in the dry meal.
3) Improving the quality of the meal.
4) Low processing cost, high labor productivity.
The oil quality outcome standard:
1. Grade one for salad oil
2. Grade two for high quality cooking oil
3. Mixture and volatile less than 0.25%.
4. Impurity less than 0.2%.
5. AV (mgKOH/g) less than 7
6. FFA less than 3.5%.
Oil expeller
1. Company strength :
a. More than 35 years manufacturing experience.
b. More than 30% of the 200 personnel are professionals.
c. ISO 9001, CE Certification
d. Turnkey products and overseas service
2. Business scope:
a. Oil seeds press production line: 10-1000 t/d.
b. Vegetable cooking oil extraction production line: 10-1500 t/d.
c. Edible oil refinery production line: 1-800 t/d
3. Oil seeds our machine can process:
Sunflower seeds, cotton seeds, soybean, rapeseed, castor, peanut, palm, corn, rice bran, canola, coconut etc.
4. Commitment:
1.Product quality assurance: Products from the quality of raw materials, production, process design, parts processing, production processes, quality control, assembly quality inspection, all-round quality management to ensure that the factory pass rate of 100%.
2. Manufacturers supply spare parts : Long-term provision of spare parts according to the factory ,the company has specialized accessories Sales Department ,through a variety of channels of logistics and the post office ,timely and accurate will you need accessories delivered to you.
3. Provide support: Company technical personnel arrangements free on-site installation and commissioning of the machine, Provide technical training and free, Allows you to easily get started.
packaging site
shiping
customer visiting
our lab
any question please contact me
we hope to establish a growing, healthy and mutually beneficial trade relationship with you!
If you are interested in our machine, Please click "SEND" to contact with us, or email me by above information.
