Best Price Professional soybean oil pressing machines plant from China
- 30 Set / Sets per Month
- Qingdao Shanghai Ningbo Guangdong
- T/T L/C D/P D/A Credit Card
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Soybean Oil | Type: | Other, edible oil solvent extraction machine, soybean oil pressing machines |
Automatic Grade: | Automatic | Production Capacity: | 100% | Place of Origin: | Henan, China |
Brand Name: | Jinxin | Model Number: | 300TD | Voltage: | Local Voltage |
Power(W): | Capacity | Dimension(L*W*H): | according to capacity | Weight: | according to capacity |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Best Price Professional soybean oil pressing machines plant from China
ybean Oil material pretreatment process
The oil material pretreatment process includes the cleaning section,breaking section,flaking
section ,softening section and oil pressing section.
1.1. Create a good product environment.
1.2. Minimize the total fat loss ,increase oil yield and output and improve the quality of oil and
cake meal.
1.3. Comprehensively utilize impurities and offal.
1.4. Perfectly match extraction production line ,design different .
2.Solvent extraction process of soybean oil
1.1.Solvent pumps: continuously spray solvent to the rotary-type extractor
1.2.Roary extractor: Spray and soak the prepressed cake with solvent so that oil fats can be dissolved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).
1.3.DTDC: usd to separate the solvent from the wet meal.
1.4.Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline wter, at last the reactant precipitate, reaching the goal of purifying.
1.5.Miscella tank 2nd: the purified miscella will be pumped into it.
1.6.Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
1.7.condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.
The paratemer of 300TPD soybean oil mill manufacturers in malaysia
Capacity | 300T/D |
Residual oil in meal | ≤ 1% (soybean) |
Solvent consumption | ≤ 2Kg/T (No.6 solvent oil) |
Crude oil moisture and volatile matter | ≤ 0.30% |
Power consumption | ≤ 15KWh/T |
Steam consumption | ≤ 280KG/T (0.8MPa) |
Finished meal moisture | ≤ 13% (adjustable) |
Residual solvent in finished meal | ≤300PPM (qualified detonated experiment) |
3. Refining process of soybean oil mill manufacturers in malaysia
1. Continuous alkali refining shortens contact time between oil and lye ,reduces grease saponification ,lowers refining consumption ,and improve efficiency.
2. Decolorization adopts the technology of combining premixing and steam mixing bleaching , which
improves the efficiency ,saves the consumption of bleaching clay , and it is simple and convenient to
operate ,and negative pressure state avoids oxygen in the air from contacting with hot oil , thereby
ensuring oil product quality ,inhibiting acid value to rise again and lowering peroxide value.
3. Deodorization adopts new type continuous deodorization equipments which is applicable for plant
oil deacidification and deodorization of high acid value and low resin content , the actual production
proves its most obvious advantages are strong deacidification ability, excellent hot bleaching effect,
high refining rate ,steam economization ,good oil quality and the like.
4. The process has multiple heat exchange, which makes full use of heat energy system, effectively
reduces steam consumption, and also has the advantages of adjustable production process.

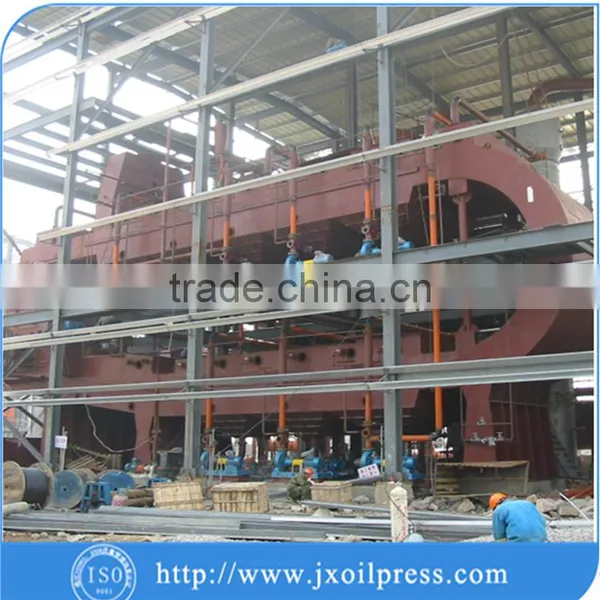

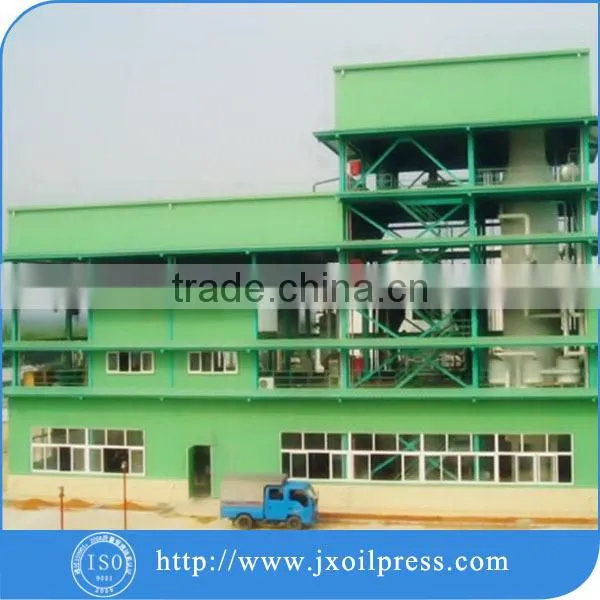

Picutures of soybean oil mill manufacturers in malaysia taken from our factory
