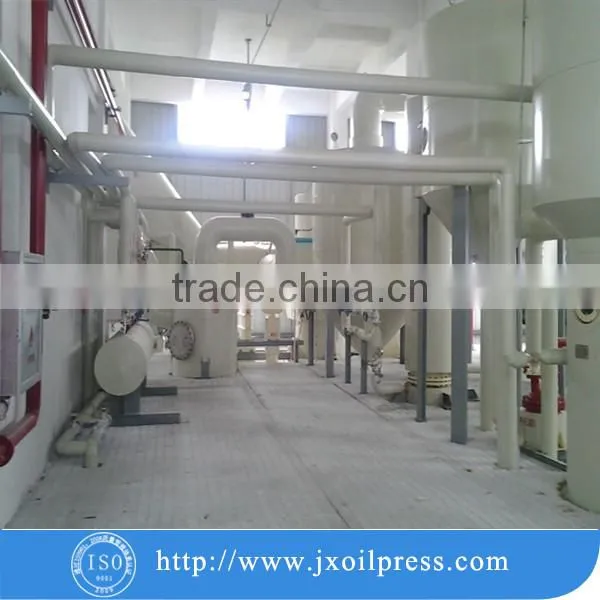

Hot Sale Commercial Plant Oil Extraction Distillation

Most common types of oil-bearing seeds and nuts are Canola, Castor, Coconut, Corn (Maize), Cottonseed, Mustard, Olive, Palm, Palm-Kernel, Peanut (Groundnut), Rapeseed, Safflower, Soybean, and Sunflower. Other major specialty oils are obtained from Almond, Avocado, Cashew, Grapeseed, Jatropha, Pecan, Pine, Shea, and Walnut. There are literally hundreds of other seeds and nuts that are available regionally around the world.

Plant Seed and Animal Oils and Fats have impurities such as Moisture, Solids (Insolubles), Gums (Lecithins), Free-Fatty Acids (FFA), Waxes, and Compounds of Sodium, Potassium, Magnesium, Calcium, and other metals. These impurities must be removed to improve the functionality of the oils. Other characteristics of oils (such as Color, odor, and taste) are also considered impurities by modern consumers. These impurities are removed in a series of steps such as degumming (to remove gums), neutralizing (to remove FFA), bleaching (to remove color), deodorizing (to remove odor and taste), and dewaxing or winterization (to remove waxes).

 1) Weighing: Material is firstly stored in buffer tank which is for adjusting the material seed flow. By means of weighter the processed

Material is weighted and the imputing quantity is accumulated.

 2) Leaning and Impurities separating: By means of Vibrating Sieve the larger and smaller size impurities in material are removed out.

 3) Gravity De-stoner & Magnetic Separating: some impurities which are as almost same size as material are still mixed in material,but as their gravity or nature properties are different, by means of Gravity De-stoner and Magnetic Separator, the heavy stone and ferric impurities are separated out from material.

 4) Crushing & De-hulling: In order to increase protein content in Meal, the de-hulling process is very significant. De-hulling system is composed of Cracking by two Crushing Mill which breaks material into small pieces, and twice separating by Aspirators which separates Hull out from Meal.

 5) Flaking: Flaking Machine is adopted for flaking Meat into thin Flake, during which cell tissue is destroyed.

 6) Pressing: Making the material have the suitable thickness to convient extraction or improve the oil yield.

  Main technical parameters of plant oil extraction distillation

1) Processing Capacity: 30~100TPD

2) Processing Flow: please see below flow chart

3) Application Range: various oil seeds, cake

4) Processing Feature

(1) High oil yield, low residual oil of meal

(2) High quality meal, improve meal's nutrition and use value, the meal can be directly used for food or additives

(3) Low processing cost

(4) High level of automation

(5) Good environmental conditions

(6) Adopt negative pressure evaporation, production at low temperature,Oil quality good

(7) Extraction system with very strong adaptability, can adapt for different materials for production

(8) The unique tail gas recycle system, ensure safe production and source recycle

(9) Sufficient energy saving design, many times of heat energy using, save steam consumption

Oil refining is according to the different usage and requirements, utilizing the physical methods and chemical

processes to get rid of the harmful impurities and needless substance in the crude oil, getting standard oil.

The crude vegetable oil from above mentioned two ways of extracting, oil pressing and solvent extraction,

will be pumped into oil refinery units to produce cooking oil at various grades.

These processes include neutralization (removing free fatty acid), degumming, decolorization (bleaching),

deodorization.Then you can get first grade vegetable oil .

XinxiangJinxin Chemical engineering equipment co,. Ltd is mainly focused on all kinds of pressure vessel and machine manufacturing .It is established in 1978 and has much rich experience in this field . .And our best seller is peanut oil machinery .We produce the complete oil production line ,and sell to all the world ,such America , Middle east ,Africa ,Europe etc.

If you are interested in our machine, Please click "SEND" to contact with us, or email me by above information.
