Home > Products > Corn Germ Oil Process Line > High Quality Commercial Corn Oil Extraction Method for Getting Edible Oil
High Quality Commercial Corn Oil Extraction Method for Getting Edible Oil
- Qingdao Shanghai Ningbo Guangdong
- T/T Credit Card
You May Like
Product Details
| Condition | New | Usage | Other, Corn oil | |
| Type | Other, For corn oil extracter usage | Automatic Grade | Automatic | |
| Production Capacity | 10-3000 ton | Place of Origin | Henan, China | |
| Brand Name | Jinxin | Model Number | JX 546 | |
| Voltage | 380v 440v | Power(W) | 30KW | |
| Dimension(L*W*H) | 1200*2800*1200mm | Weight | 500Tons | |
| Certification | ISO9000:2008 ,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High quality commercial corn oil extraction method for getting edible oil

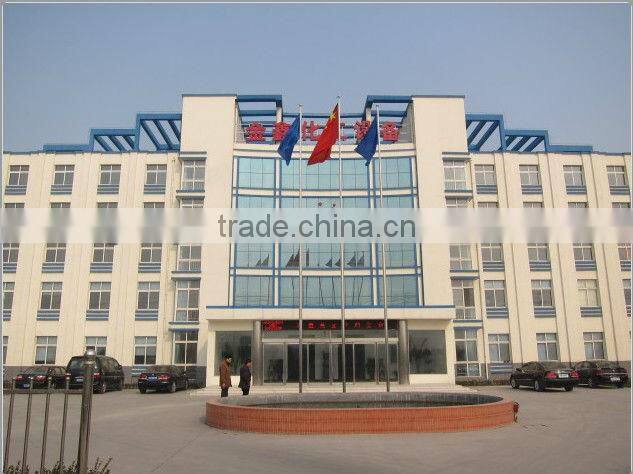

Company image
Learn more about our factory:Xinxiang Jinxin Chemical Engineering Equipment Co., Ltd.

We have a big plant and have rich experience in this field. We have exported to many countries like Egypt, Chile,
Argentina, Ethiopia, Zambia, Nigeria, Russia and Turkey ect.
Introduction of corn oil extraction method
Our production complete line adapts to many kinds of oil seeds. We can provide all the plants include oil pre-treatment/ presser/ oil leaching technology, refining and packing line;
Technology Process of corn oil extraction method
Palm fruit, palm kernel, coconut, cashew, avocado, tiger nut, peanuts, rapeseeds, soybeans, castor oil plant,
sesame seeds, benne seeds, sunflower seeds, cotton seeds, tea seeds, Tung seeds and etc.
Raw material ---degerming -- cleaning (magnetic separation removing ironstoning machine) ---soften---flaking---cooking---pressing

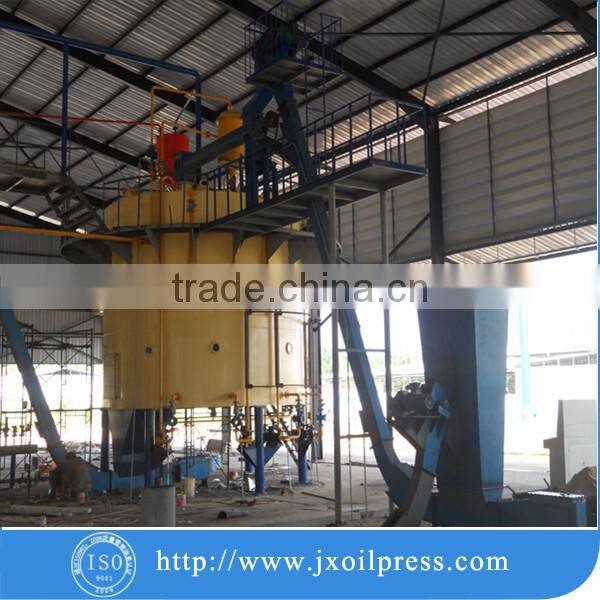

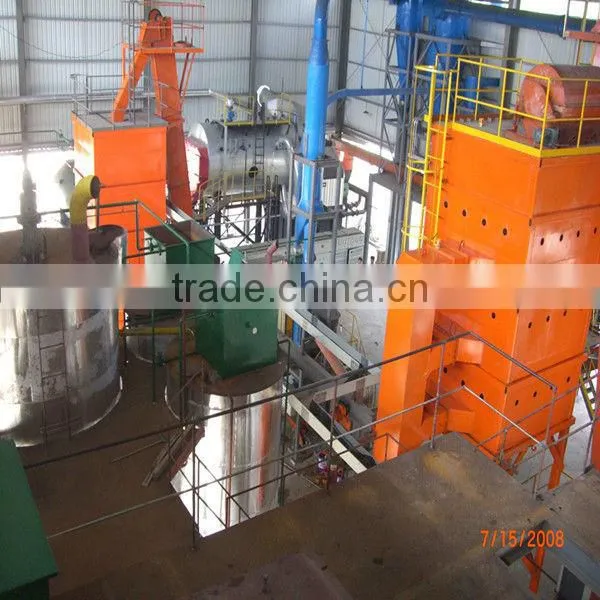

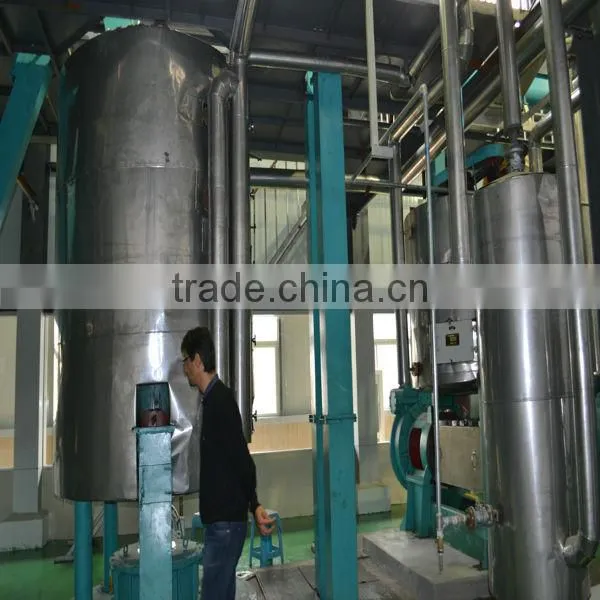

Leaching Section Processing of corn oil extraction method
1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.
3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.
4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.
Material embryos→Extraction→Wet
meal→Evaporation→Cooling→Product meal packing
↓
Mixed oil→Filter→Negative pressure evaporation → Crude oil
↓
Solvent recovery
After sale service
lProduct quality assurance
Products from the quality of raw materials, production, process design, parts processing, production processes,
quality control, assembly quality inspection, allround quality management to ensure that the factory pass rate of 100%.
lManufacturers supply spare parts
Longterm provision of spare parts according to the factory ,the company has specialized accessories Sales Department ,through a variety of channels of logistics and the post office ,timely and accurate will you need accessories delivered to you .
lProvide support
Company technical personnel arrangements free onsite installation and commissioning of the machine, Provide technical training and free, Allows you to easily get started.
Contact information
If you are interested in our machine, Please click "SEND" to contact with us, or email me by above information.
Welcome to order from us
