Help CenterExtracting Tank JFCQ-2
Related Products

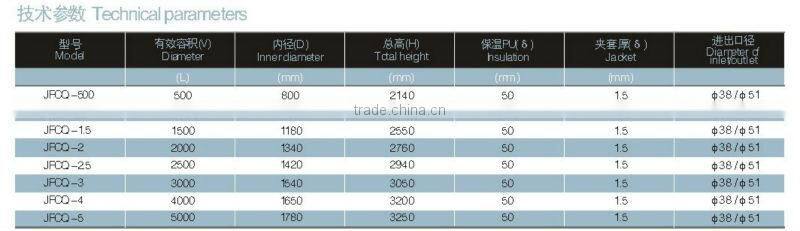

Specifications
This extracting tank is used to extract tea from tea leaves or make medcine from herbel medicine.
This extracting tank is used to extract tea from tea leaves or make medicine from herbel medicine.
All the tank wall is made of high quality SUS304-2B or 316L stainless steel,the jacket adopts high density of PU as insulation and was made out of new procedures.This tank can use steam to heat the product inside with steam or hot water inside the dimple pad,the paddle type agitator is mounted from top at the centre,other standard attachments such as:airtight manhole,high and low level probe,temperature sensor,the extracted liquid product is discharged from bottom outlet,dregs are also discharged from bottom where a net is fixed to separate the dreg from the liquid products,the top cover is elliptical typ and bottom base is of conical types.Pneumatic discharge device can be added according to the customers' requirements.
