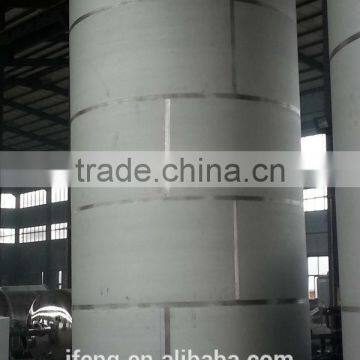

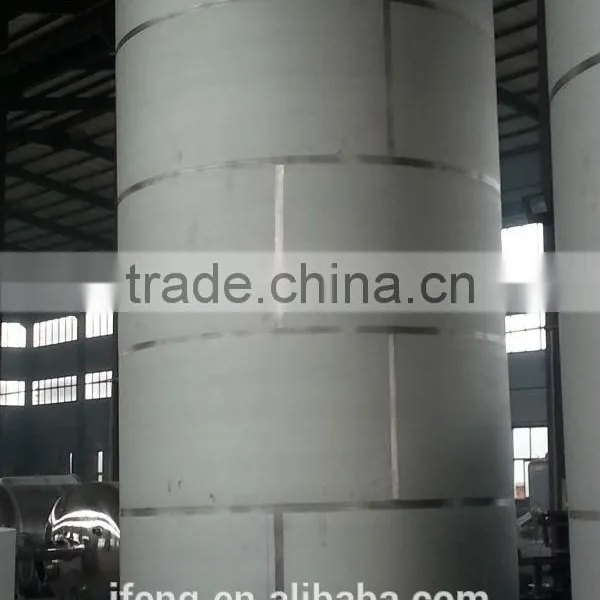

Large outdoor storage equipment

Specifications

Applicable for large milk collection centre,or for milk outdoor storage at large milk production plant

Usage

Applicable for large milk storage centre,or for milk outdoor storage at large milk production plant ; also used at other food and pharmacy factory for storage of liquid product.This equipment is equipped with cleaning system ,agitator,sight and view devices,also have attachments of thermometer and level indication meter.



Specifications

 Material:all material used high quality SUS304 or SUS316L stainless stell

Structure:cylindrical shap,conical top cover of 15 degree,with skirt base,PU heat insulation,honeycomb cooling jackt at wall and base of the tank.



Volume range:



5,000L~120,000L



Standard attachments



a.one air tight side hole on the base of tank

b.one side agitator on the base of tank

c.one PT 100 thermometer,temperature range:0~100 degree

d.two CIP cleaning ball

e.one aseptic sample valve

f.anti butterfly and dirt air vent

duct inlet /outlet hole

oling medium inlet / outlet hole

i.lever sensor

j.labber with circle protection and protection fence at tank top



Note

It can be made according to customers' requirements.As the weight of tank is over 120T,considered frome the transportation we will recommend manufacturing on the feild.
