Home > Products > SPARE PARTS > Sanitary butterfly valve

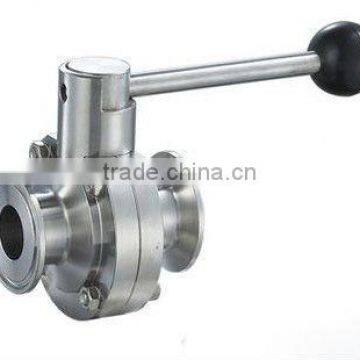

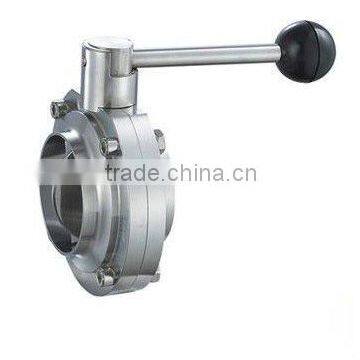

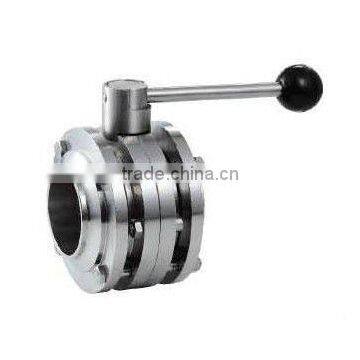

Sanitary butterfly valve
- 2000 Piece / Pieces per Month
- SHANGHAI OR NINGBO
- T/T
Product Details
Standard or Nonstandard: | Standard | Structure: | Butterfly | Pressure: | Medium Pressure |
Power: | Pneumatic | Material: | Stainless Steel | Temperature of Media: | Medium Temperature |
Media: | Water | Place of Origin: | Jiangsu, China | Model Number: | XH |
Product Description
Application
As as anitary pneumatic butterfly valve,XH is applied in stainless steel.
Working principle
XH has tree types:AFJ,AFJ-2 and AFJ-F.
AFJ is used in ISO standard pipelines,AFJ-2 is in DIN standard pipelines and AFJ-F in flange connection.
XH butterfly valve is consisted of two half-body valve,butterfly valve plate,valve lever and sealed ferrule.Additionally,XH-F has two more flages and two flange sealed ferrules.AFJ butterfly valve is assembled by screws and nuts.The driving deviec of butterfly valve has two specifications:85mm and 133mm,whic suits for all kinds of valve.And there are two types driving device:LKJ-A and LKJ-B.XH butterfly valve can be equipped with position indicator located on the fixed parts between the driving device and the valve.This positon indicator is mounted with micro-active switch,gradual switch or hall switch.
Technical parameter
Valve:
Max.Product Pressure:1000kPa(10 bar)
Min.Product Pressure:vacuum
Range of temperature:-10~95 degree
Material
Valve:
Parts touching with the medium:AISI304 or AISIL
Other parts:AISI304
Class of rubber:silicon rubber(Q),Ethylene-Propylene-Diene Monomer(EPDM) or Fluoride Propylene Monomer(EPM)
Surface treatment:Calender
Contact Us
- Jiangsu Jufeng Machinery Co., Ltd.
- Contact nameVincent wei
- Phone86-0517-88293789
- AddressNo. 18, Tianquan Road, Xuyi Economic Development Zone
