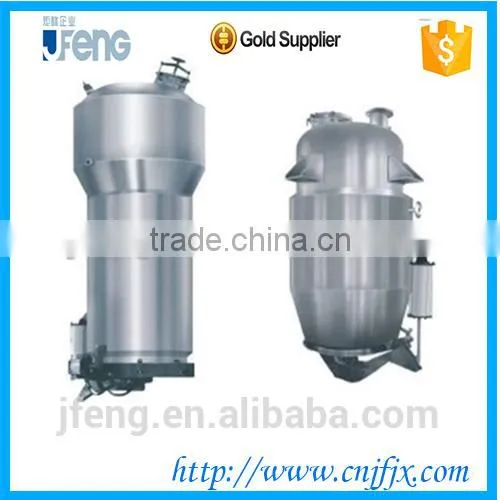

Help CenterTQ-Z Series Herbal Extraction Equipment
Related Products
Application:
The equipment for a variety of herbal and plant extracts the active ingredient,
concentration, solvent recovery and collection of aromatic oils.
Product Overview:

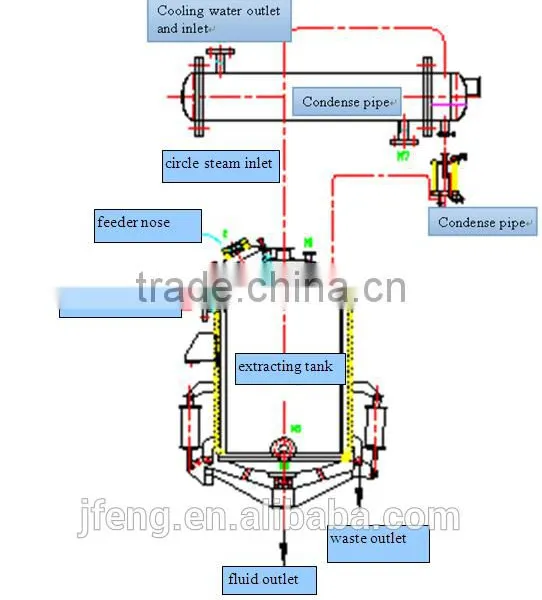

1, This equipment is mainly extracted from the tank, the outer loop single-effect concentrator and other ancillary equipment, composition, structure compact, easy to operate, set extraction, concentration, solvent recovery in one.
2, the entire production process carried out in a confined state, one-time to complete the extraction, concentration operations. Ability to handle large, less solvent, extraction time and so on.
3, the temperature can be freely controlled at 48-100 °C, can achieve low temperature extraction, heat reflux, low back, low temperature concentration and other process operations, particularly suitable for processing heat-sensitive materials, and can configure the PLC control system.
Technology parameter
Model and specification |
TQ-Z-1 |
TQ-Z-2 |
TQ-Z-3 |
TQ-Z-4 |
TQ-Z-6 |
TQ-Z-8 |
Volume(L) |
1200 |
2300 |
3200 |
4300 |
6300 |
8500 |
Designed pressure inside pot(Mpa) |
0.09 |
|||||
Jacket design pressure(Mpa) |
0.3 |
|||||
Material imputting diameter(mm) |
400 |
400 |
400 |
500 |
500 |
500 |
Heating area(m2) |
3 |
4.7 |
6.8 |
8 |
10 |
12 |
Condensing area(m2) |
4 |
5.4 |
8 |
10 |
10 |
15 |
Cooling area(m2) |
1 |
1 |
1 |
1 |
2.2 |
2.2 |
Filtering area(m2) |
0.25 |
0.25 |
0.25 |
0.25 |
0.3 |
0.3 |
Residue exhausting diameter(mm) |
800 |
800 |
800 |
800 |
1000 |
1000 |
Steam cost(kg/h) |
285 |
346 |
570 |
660 |
718 |
903 |
Water cost(t/h) |
2.1 |
2.5 |
4.2 |
4.5 |
5.5 |
6.7 |
Heating steam orifice(mm) |
32 |
32 |
40 |
40 |
50 |
50 |
Gas exhausting orifice(mm) |
100 |
100 |
125 |
125 |
150 |
150 |
Cooling water pipe atifice(mm) |
40 |
40 |
50 |
50 |
50 |
65 |
Motor power(KW) |
2 |
3 |
4 |
5.5 |
5.5 |
7.5 |
Agitating speed(r/min) |
24 |
24 |
24 |
36 |
36 |
36 |
Note: The above data is in standard type, can be customized according to user specific requirements. When the steam pressure> 0.1Mpa, press the pressure vessel design and manufacture.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
About Delivery time
Q-----What’s the delivery term for making business with us?
A----- FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;
About Lead Time
Q------What’s the lead time after placing order?
A------Usually it takes about 25~30 days after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What’s the Payment Term?
A------ By T/T in Advance, or Irrevocable L/C at Sight.
Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
