Specifications
DZ series molecule distillation equipment is used for the soft separation of heat sensitive material or high material.Usage
DZ series molecule distillation equipment is also called as short distillation equipment,whic is used for the soft separation of heat sensitive material or high boiling poin material.It is widely applied in the technologies of deodorization,purification and concentration etc.For petrochemical industry,fine chemical industry,medicine,agriculture chemicals,food,grease and environmental protection industry etc.
1.The operation of molecule distillation has high vacuum degree,which can reach about 1 PA.
2.The evaporation temperature of molecule distillation is low which is lower than the boiling point of material.
3.The material heating time of molecule distillation is short.
4.The separation degree of molecule distillation is high.

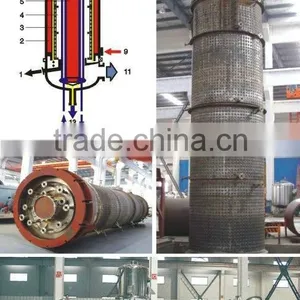

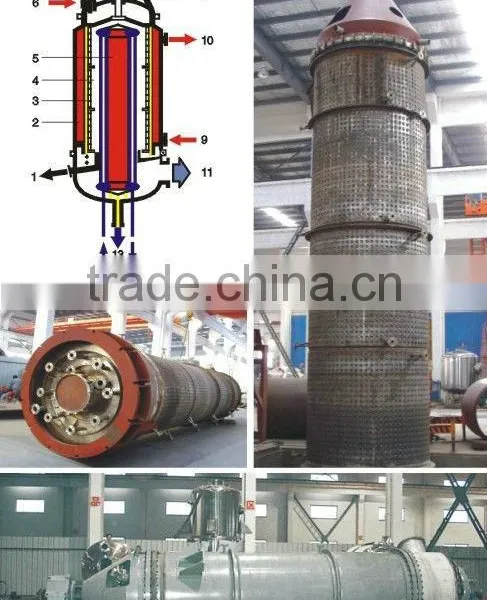

The matching facilities include:
1.weight component material outlet
2.heating jacket
3.film formation system
4.vacuum module
5.interior condensor
6.material inlet
7.electric motor
8.drive shaft with material distrilution plate
9.hot oil inlet
10.hot oil outlet
11.vacuum
oling medium outlet
13.light component material outlet
oling medium inlet
