US$ 40,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tire Machine
Tire Machine Type:
Tire Recycling Machine
Contact Supplier Request Quote Chat Now
Xinxiang Doing Renewable Energy Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tire Machine
Tire Machine Type Tire Recycling Machine
Place of Origin Henan, China
Brand Name DOING
Model Number DY-10
Voltage 220V,380V
Power(W) 19.9KW
Dimension(L*W*H) 9.2*3.14*3.17m
Weight 35TONS
Certification CE,SGS,ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

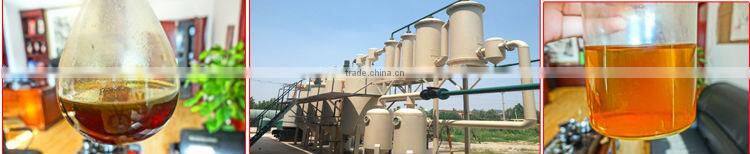

  no pollution automatic welder pyrolysis oil distillation plant/machine recycling rubber

Product Description



2 workers need automatic old tyre pyrolysis plant  with CE / ISO/SGS
no pollution automatic welder pyrolysis oil distillation plant/machine recycling rubber/pyrolysis oil distillation plant

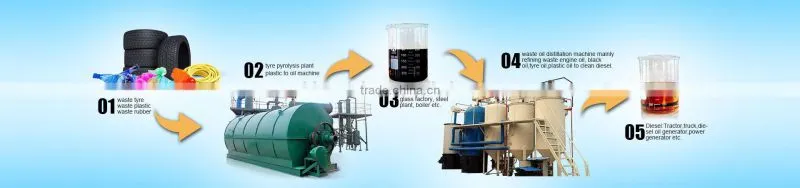

Automatic old tyre pyrolysis plant Process

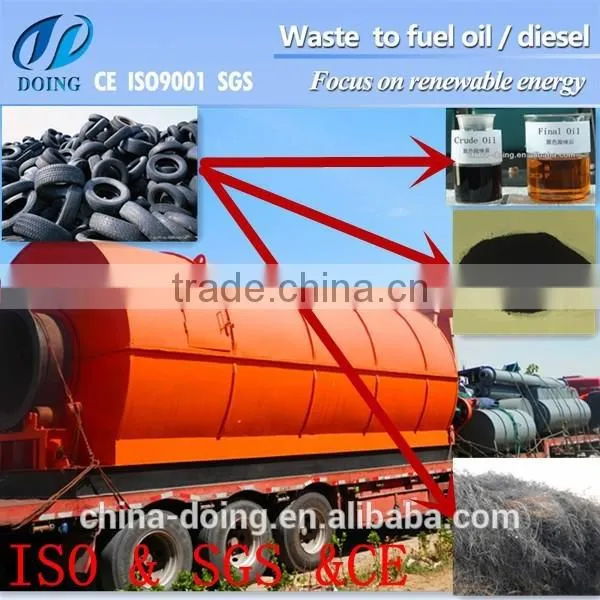

  • Pyrolysis can be used to reprocess the tyres into fuel gas, fuel oil, solid residue (steel wire) and carbon black.
  • A pyrolysis method which produces activated carbon and high-grade carbon black.
  • The waste tyres are mainly composed of long chain of C-H molecules.
  • The major source is from process of pyrolysis, separation and compounding of Oil.
  • The technology of pyrolysis, cracking, monomerisation of used tyres is always a hot topic.

no pollution automatic welder pyrolysis oil distillation plant/machine recycling rubber/pyrolysis oil distillation plant

Tyre pyrolysis
  • The pyrolysis method for recycling used tyres is a technique which heats whole or shredded tyres in a reactor vessel containing an oxygen free atmosphere and a heat source.
  • In the reactor the rubber is softened after which the rubber polymers continuously breakdown into smaller molecules.
  • These smaller molecules eventually vaporize and exit from the reactor.
  • These vapors can be burned directly to produce power or condensed into an oily type liquid, generally used as a fuel.
  • Some molecules are too small to condense. They remain as a gas which can be burned as fuel.
  • The minerals that were part of the tyre, about 40 to 45 % by weight, are removed as a solid.
  • When performed well a tyre pyrolysis process is a very clean operation and has nearly no emissions or waste.
  • The properties of the gas, liquid and solid output are determined by the type of feed stock used and the process conditions.
  • For instance whole tyres contain fibers and steel. Shredded tyres have most of the steel and sometimes most of the fiber removed.
  • Batch wise Process is done by tyre pyrolysis.
  • The steel can be removed from the solid stream with magnets for recycling. The remaining solid material, often referred to as "charcoal".
Variety of polymer waste material is suitable as a raw material. Given below is the list of suitable raw materials for pyrolysis:
  • Waste tyres
  • Rubber or rubber parts from vehicles
  • Electronic scrap
  • Mixed waste from waste paper mill
  • Mixed (HDPE, LDPE, PE, PP, Nylon, Teflon, PS,ABS,FRP etc)
  • Multi layered
  • The choice of feedstock and process can impact the value of the finished products
Input-output ratio of waste tyre pyrolysis

Input Material

Input Quantity

Output quantity

Nylon scrap tyres

1000kgs

-400 to 450 lit of Pyrolysis oil
-50 to 80 kg of Hydrocarbon Gas
-300 to 350 kg of Carbon Black



Yield(End product) of pyrolysis process:
  • Pyrolysis oil (Fuel oil)
The essential product of tyre pyrolysis process is pyrolysis oil referred as fuel oil(40 to 45 % of total quantity feed) which is used as a fuel component for heating oil’s and as a component in vessel fuels.Purest quality of pyrolysis oil comparable to industrial diesel: selling price comparable to industrial diesel LDO( light diesel oil).
  • Carbon Black
The vital product of pyrolysis plant is carbon black referred as "charcoal"(30 to 35% of total quantity feed ).carbon black has Industrial and commercial use.
  • Steel wire
For instance whole tyres contain fibers and steel. Shredded tyres have most of the steel and sometimes most of the fiber removed.
The steel wire(10 to 15%) can be removed from the carbon black with magnets for recycling after pyrolysis process & sold to the steel dealer.
  • Gas
The smaller molecules eventually vaporize and exit from the reactor. These vapors can be burned directly to produce power or condensed into an oily type liquid, generally used as a fuel. Some molecules are too small to condense. They remain as a gas( 5 to 8% of total quantity feed) which can be burned as fuel.

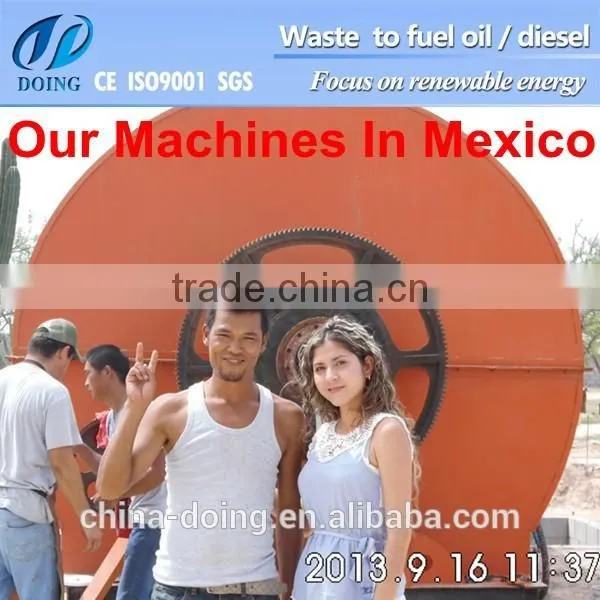

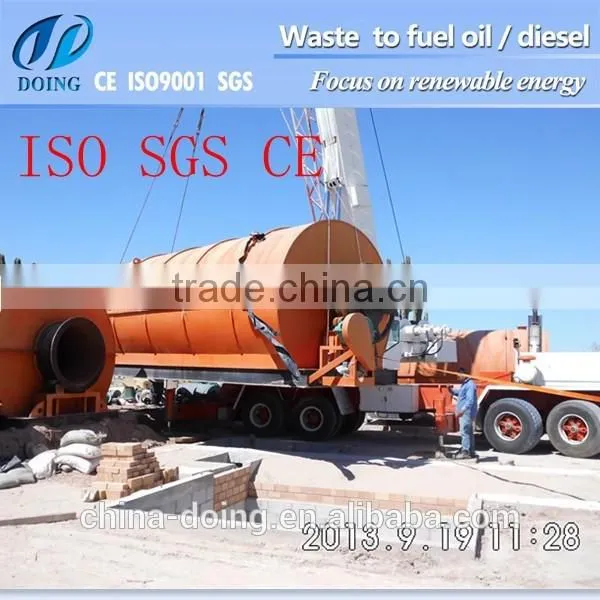

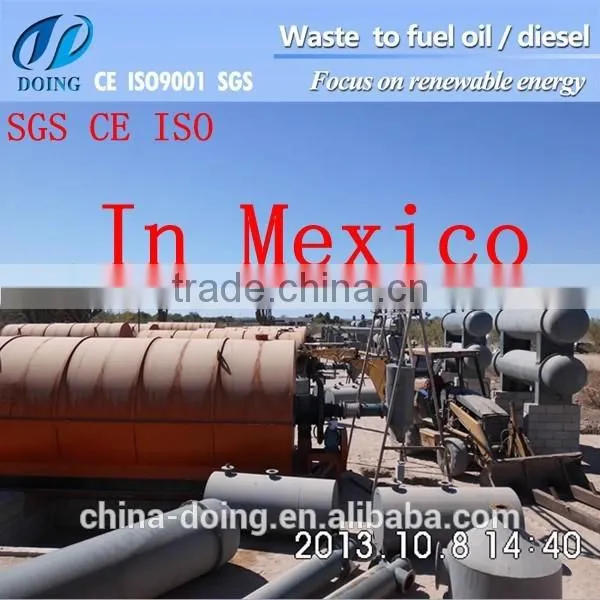

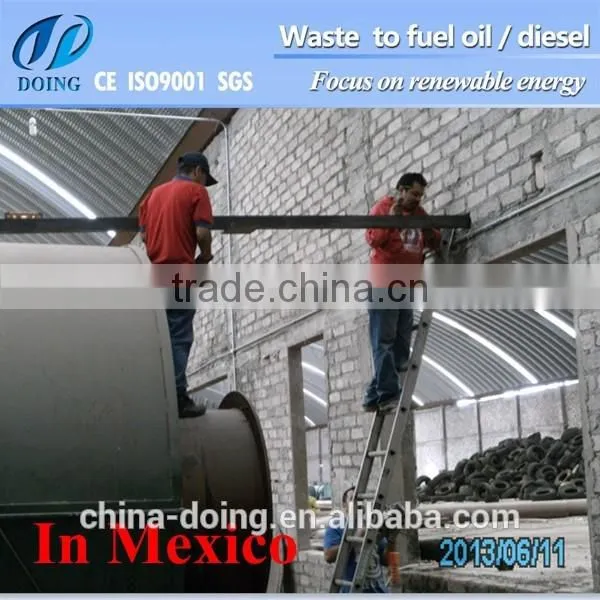

 Automatic old tyre pyrolysis plant customer Project:
no pollution automatic welder pyrolysis oil distillation plant/machine recycling rubber/pyrolysis oil distillation plant



Company Information

 Who we are?

Henan DOING Mechanical Equipment Co.,ltd is a leading manufacturer specialized in large and medium-sized oil-related machineries, including waste tire/plastic/rubber to fuel oil pyrolysis machine, waste oil(black oil) refinery machine to get diesel oil, cooking oil production line as well as biodiesel production line.
Our business is related to diesel oil and cooking oil industry. We provide the turn-key project for  a variety of edible oil pretreatment, pre-pressing, extraction, refining, fractionation and by-products further processing; bio-diesel production, waste tire pyrolysis machine and by-product oil further processing oil refinery machine, including equipment design, process design, power distribution design, instrument control design, civil construction design, installation and commissioning,etc.
Our oil project has been set up in 23 foreign countries and regions in the world and achieve a good customer reputation.
DOING is always trying to serve customers well by providing highest quality products and best after sales service. We are doing at any time.

no pollution automatic welder pyrolysis oil distillation plant/machine recycling rubber/pyrolysis oil distillation plant

 Why always us?
  • We have 9 years experiences in the machinery market, 5 years domestic trade, 4 years freign trade.
  • Exported to almost 30 countries, have customers all over the world.
  • Have demo machine and running machine for customer visiting.
  • Certificated by ISO, CE, SGS, BV, TUV, EPA

no pollution automatic welder pyrolysis oil distillation plant/machine recycling rubber/pyrolysis oil distillation plant

no pollution automatic welder pyrolysis oil distillation plant/machine recycling rubber/pyrolysis oil distillation plant

 If you have a plan to setup this green project- automatic old tyre pyrolysis plant . Kindly leave us your message.We will reply you ASAP. Thanks.
