Environmental Protection Waste Plastic Pyrolysis Plant/waste Tyre Recycling Machine

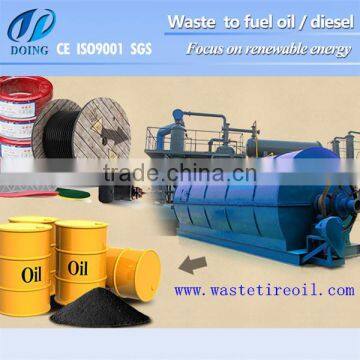

Environmental Protection Waste Plastic Pyrolysis Plant/waste Tyre Recycling Machine photo-1

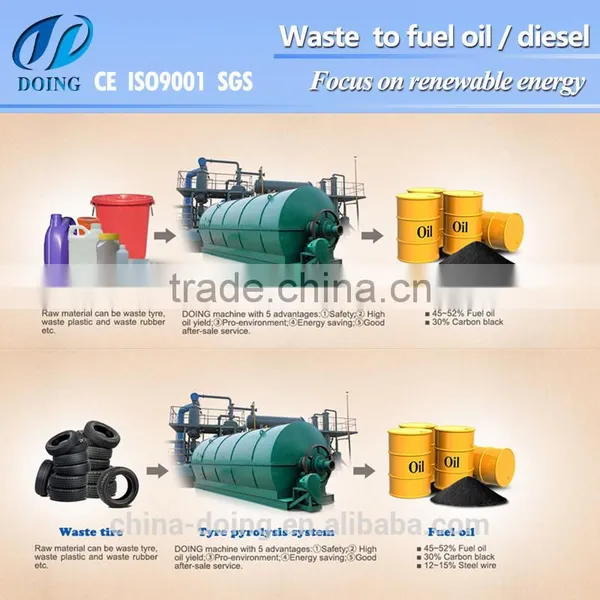

Environmental Protection Waste Plastic Pyrolysis Plant/waste Tyre Recycling Machine photo-2

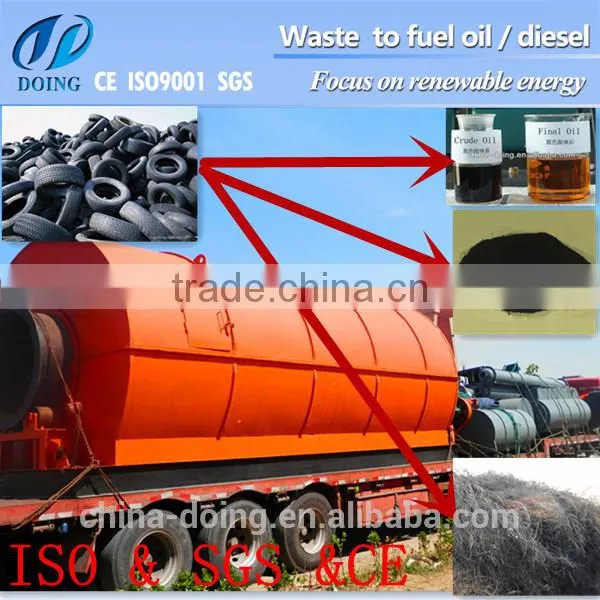

Environmental Protection Waste Plastic Pyrolysis Plant/waste Tyre Recycling Machine photo-3
Environmental Protection Waste Plastic Pyrolysis Plant/waste Tyre Recycling Machine photo-4

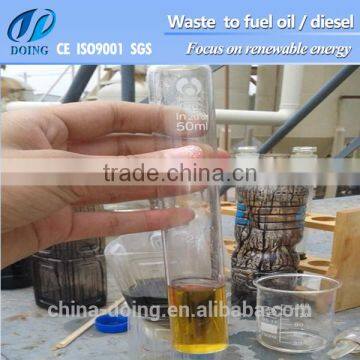

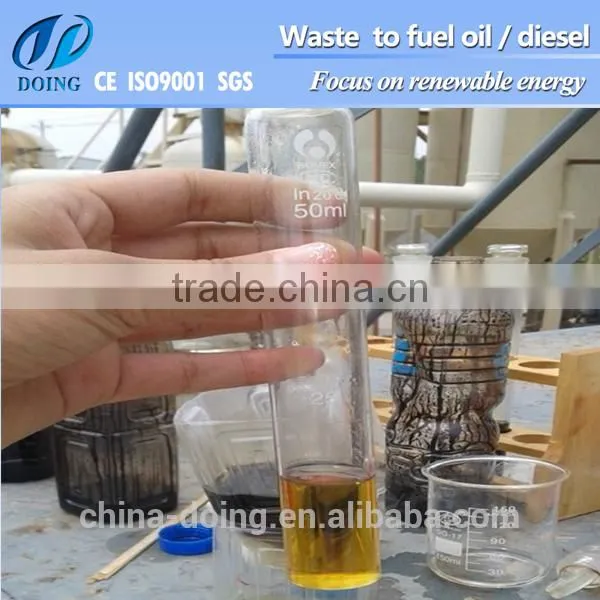

Environmental Protection Waste Plastic Pyrolysis Plant/waste Tyre Recycling Machine photo-5
US$ 42,555 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Usage:
Other
Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Tianjn
Delivery Detail:
Delivery time depends on order quantity.
Usage Other
Type Other
Automatic Grade Automatic
Place of Origin Henan, China
Brand Name DOING
Model Number DY-1-10
Voltage 220V 380V
Power(W) 30KW
Dimension(L*W*H) 2.6m*2.6m*6.6m
Weight 35tons
Certification CE,SGS,ISO
After-sales Service Provided Engineers available to service machinery overseas



Environmental protection waste plastic pyrolysis plant/waste tyre recycling machine

Congratulations,You have found a profitable business opportunity when you view this page,and also you have got a fine supplier who can support you on this field.

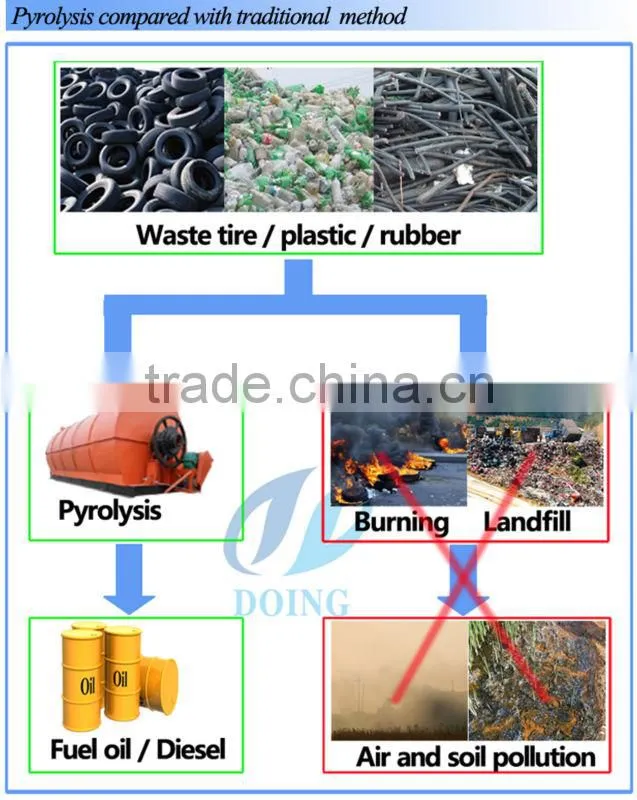

Waste tire/plastic/rubber becoming more and more serious,Many governments of the countries are trying to deal with this thorny problem.



Traditional processing method is burning or landfill.But there is serious pollution to air and soil,it was not right way.

Pyrolysis,not only averts the serious pollution but also has profit.





The principle introduction of


Environmental protection Plastic Pyrolysis Oil Refining Machine with best aftersales service




High temperature pyrolysis raw material into oil gas, after cooling system, oil gas cooling down to liquid oil.



Working process of




Environmental protection Plastic Pyrolysis Oil Refining Machine with best aftersales service


1. Processing time

Model

 Load tires  into reactor

(hour)

 Preheating

time

(hour)

Oil gas output time

(hour)

Reactor cooling time

(hour)

Carbon black

steel wire discharging

(hour)

DY-1-10

2

 2

8-10

3-4

2



2.Main parts of


Environmental protection Plastic Pyrolysis Oil Refining Machine with best aftersales service



 Auto-

Feeder



With 60 tons hydraulic pressure can feed tire automatically, save time, save labour and save energy.







Reactor





1. 16mm Q245R /Q345R boiler plate

2. Use auto welding  to keep weld strong, use X-ray    test to inspect weld defects.





Buffer Chamber









1. Reduce speed of oil gas, keep whole

 system running safely.

2. Purify oil gas.









Oil Water Separater





1. Prevent gas reflux.

2. Wash oil gas.







Condenser





By using recycling water to cool oil gas, totall cooling area is 74 square meters.



Negative Device





Negative pressure garantee the whole system under negative pressure.









Water Sealing









Prevent gas reflux.









Dedusting System









Reach the international purification standard.





Advantage of DOING company

1.Our belief :Doing is better than thousands of ideas.Our success comes from do it immediately.

2.Rich experience:equipment had exported to more than 18 countries.

3.With ISO9001:2008,CE Certificate.

4.Strict requirements for quality:

    IQC:Incoming quality control,main raw material;

    PQC:Process quality control,All the reactor is inspection by X-ray.

5.Running machine available for customer visit.

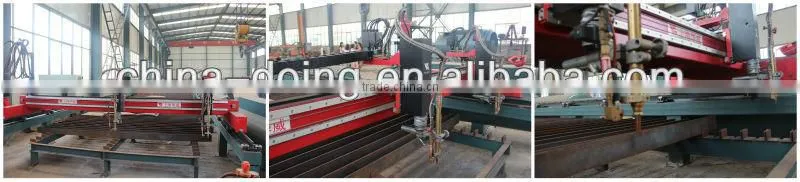

6.Factory area : 20000 square meter.

7.Production capacity:20 sets/month.





After-sales of

Pyrolysis Oil Refining Machine with best aftersales service

1. Delivery time- It will be 10-15 days after we receive the deposit.

2. Warranty- The warranty period for reactor and other parts except spare parts is 1 year.

The problem caused by wrong operation of workers shall not be responsible by our company.

3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your workers.

During the installation period, buyer should pays $50.00 pry day to our technician;

And buyer should take charge of technician round trip air tickets and accommodation during

installation.
