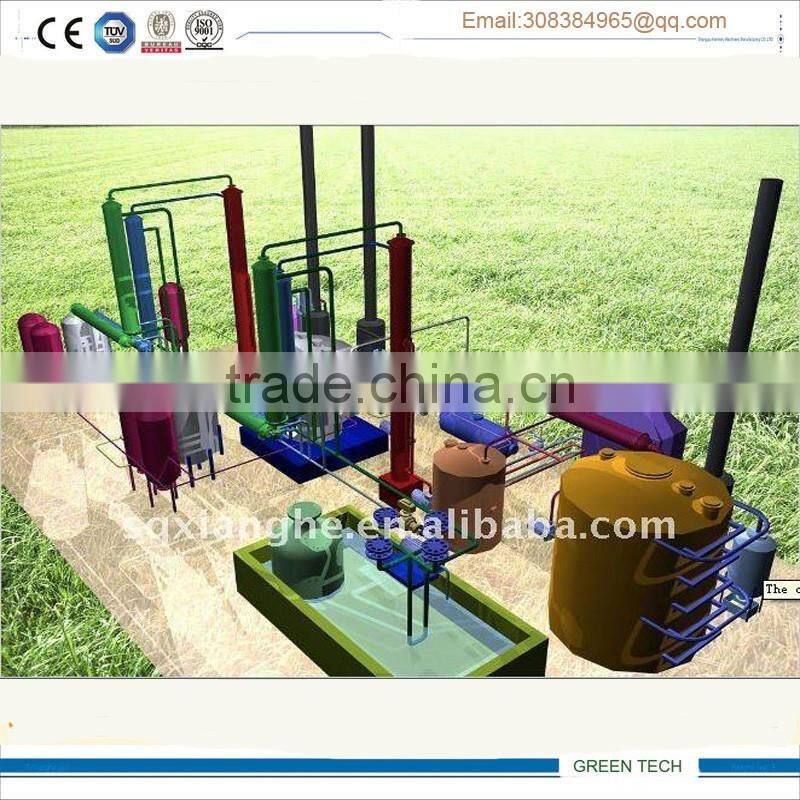

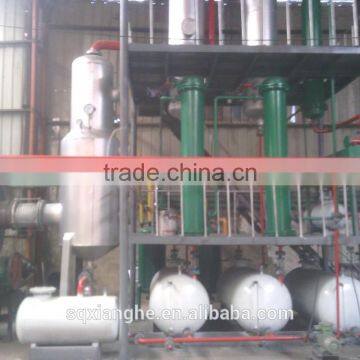

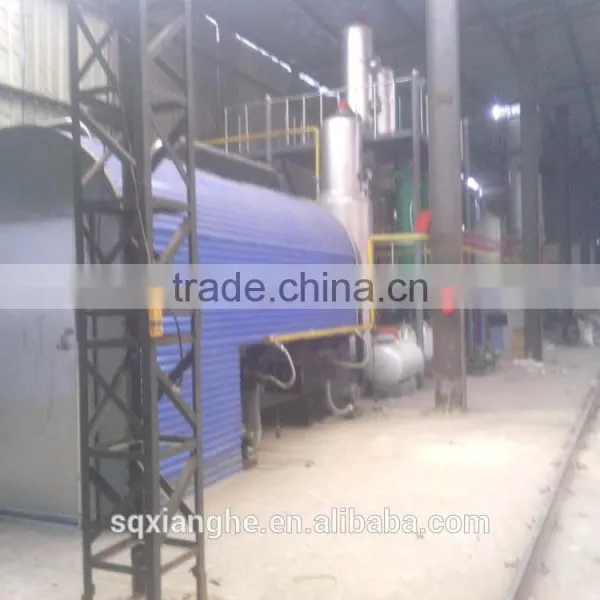

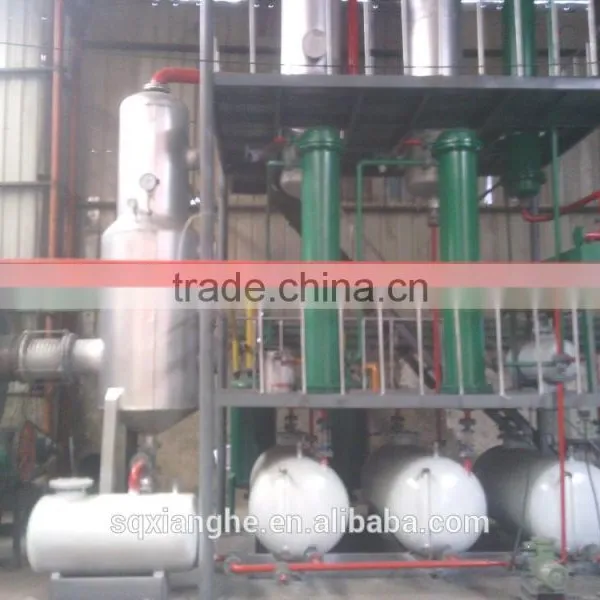

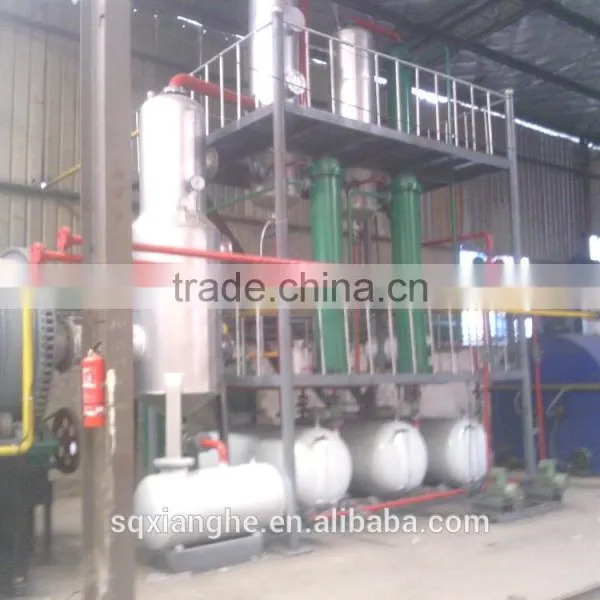

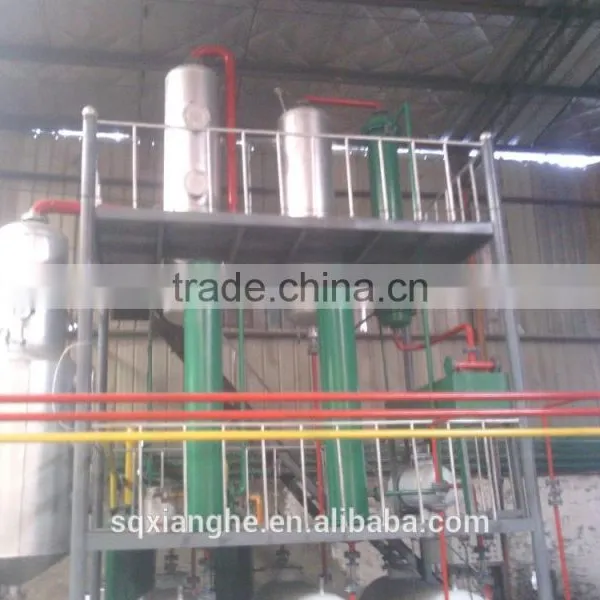

Continuously Oil Distiller Tyre Oil to Diesel Oil Refining Plant 10-15tpd per Day

Waste Oil Refinery Machine with CE,ISO

1. Distillation machine list

1) reactor

2)catalyst

3)condenser

4) cooling system

5)oil-water separator

6)filter

7)agitator tank

8)water seal

9)vacuum device

10)buffer tank

11)heavy oil tank

12)heat exchanger

13)strong spray tower

14)chimney

15)activated carbon absorbent tower

16)draft fan

17)oil tank

18)cooling tower

19)temperature meter

20)temperature sensor

21)pressure meter

22)pressure sensor

23)security valve

24)electric cabinet

2. Raw material:

 fuel oil, waste engine oil, tyre oil, waste plastic oil, waste rubber oil

3. With high configuration and high technology.

4. The waste oil after distillation can be used directly in the cars after 30%-50% mixed with standard diesel.

5. Without pollution:

a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.

b> Waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis

c> Bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.

d> Emission controller: there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis

6. Get more profit from the purified oil

7. Safety system:

 There are safety alarms in the temperature gauge and pressure  when the temperature and pressure is abnormal, the alarms will ring. then you should do some safety precautions in time.

8. Terms of payment:

 By T/T(30% deposit will be prepaid, 65% will be paid before loading, the balance 5% will be paid after installing and debugging).

9.Delivery time:

 We will deliver the machine within 25days after receiving deposit.

10. After-sale service:

 1) The warranty time: we guarantee the main reactor 3years, other parts one year expect the wearing parts.

 2) Beyond the warranty time, if the buyer need the seller's technician to repair equipment, the buyer should provide the accommodation and round-trip ticket.

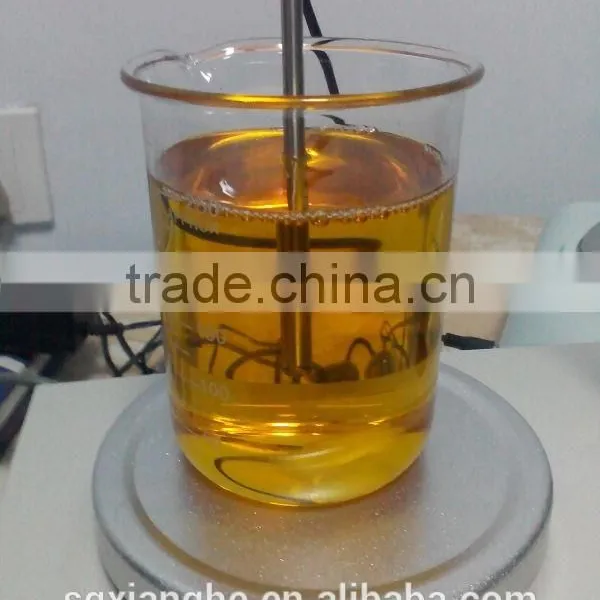

 11.Oil we get
