Help Center2016 Latest Small Oil Distillation Plant Convert Black Oil to Diesel Good Oil 3TPD
Related Products
-
10 TPD Black Oil to Diesel Oil Refinery Machine Fast InstallationUS$ 56,000 - 88,000MOQ: 1 Set -
Large Capacity Oil Refinery Distillation Equipment 40tpd for Diesel OilUS$ 350,000 - 480,000MOQ: 1 Set
-
Continuous 30 TPD Oil Refinery Plant of Waste Engine Oil Distillation MachineUS$ 350,000 - 480,000MOQ: 1 Set
-
USED Diesel Oil Disposal Refinery Equipment With CE 20TPDUS$ 150,000 - 200,000MOQ: 1 Set
-
Used Engine Oil Refining Plant Getting Good Yellow Color OilUS$ 45,000 - 60,000MOQ: 1 Set
About us:
- specialized in manufacturing used tire pyrolysis plant, waste plastic pyrolysis machine, scrap rubber pyrolysis equipment, waste tire recycling machine, scrap plastic recycling machine, waste engine oil recycling machine, crude oil refining equipment.

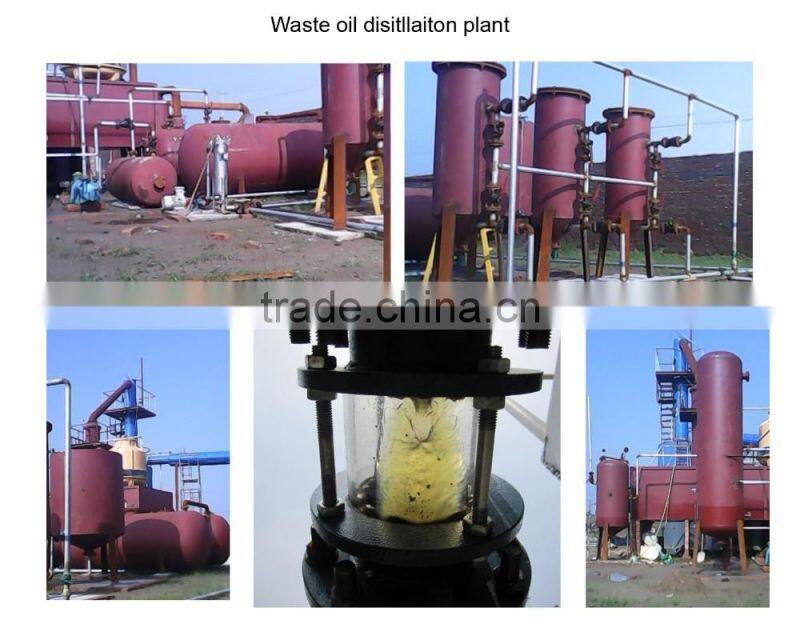

Domestic initiation of Waste oil distillation machine :
a. The complete set of unit produces no smoke and smell with favourable
effects of environmental protection.
b. The pressure release device operates through water circulation, which
greatly improves the security of the system.
c. The release of pressure during the production dramatically increases
the output within certain time and meanwhile improves the quality of oil.
d. The heating system adopts hot air heating technology, which improves
the safety performance of production and heating efficiency.
e. High efficiency fuel gas heating system. When the heated gas reaches
150 during refining, a large amount of gas will be generated: through
methane to butane, which cannot be liquefied under normal temperature.
A large quantity of energy will be generated after these gases fully burn
within a specially designed gas burner. Then energy will be saved greatly.
f. Flue dust collecting system; Equipped with ceremic dust collecting room,
which makes sure the discharged flue gas reach national emission standard.
The advantages:
a. Continuous operating for 90 days without coking.
b. Latest tubular heating system which can save fuel 20--30%.
c. All sealed and auto feeding and slag discharging system, available in 350degree
temperature condition.
d. This model is for processing waste engine oil into diesel oil.
e. The output should be above 75%, water percent affect the data obviously.
About the consumption of production:
a. Power: 138kw/hour in total (but it is not every device start at the same time).
b. Cooling circuit water: 50m3/hour in total (the water can be circulatory and the faster
the water flow,
the better the cooling down effect).
c. Fuel for heating:
30—40KG coal is needed on average, processing one ton raw oil.
20—30KG diesel is needed on average, processing one ton raw oil.
d. Space for machine: 3000----3500m2 (the smallest space).
e. Workers: 4 to 6 workers which can be divided by two groups.
Delivery site:
After-Sales of Waste Scrap Tire Pyrolysis Recycling Plant To Furnace Oil
1. Delivery time- It will be 10-15 days after we receive the deposit.
2. Warranty- The warranty period for reactor and other parts except spare parts is 1 year.
The problem caused by wrong operation of workers shall not be responsible by our company.
3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation,
testing the machine and training your workers.
During the installation period, buyer should pays $50.00 pry day to our technician;
And buyer should take charge of technician round trip air tickets and accommodation
during installation.
Technical parameter:
NO. |
Name |
Parameter |
1 |
The raw materials: |
Tire oil /fuel oil/crude oil |
2 |
Out put |
Base oil/diesel |
3 |
Daily capacity: |
3 ton /day |
4 |

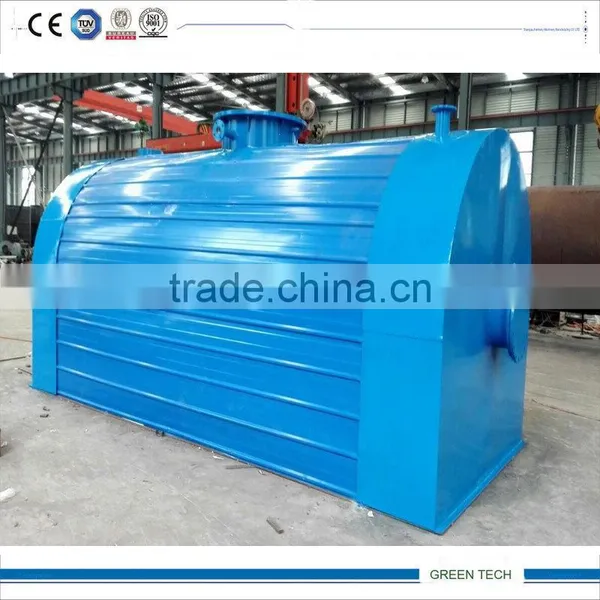

The size of reactor(D*L) |
1400*3000mm |
6. |
Reactor material |
Q345R |
7. |
Final oil out rate |
85 % |
8. |
Feeding way |
continuous |
9 |
Slag out |
Auto continuous |
10 |
Working area |
500-600 square meters |
11 |
Cooling way |
By water |
12. |
Heating way |
Direct/indirect |
13 |
Working presure |
Normal/slightly negative |
14 |
Effective working temperature |
280-400℃ |
15 |
Power |
12 kw |
16 |
voltage |
220v/380v |
17 |
Fuel to heating |
Coal wood, gas oil, etc |
18 |
type |
Pollution free |
