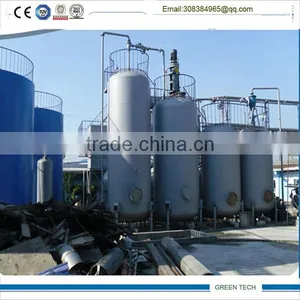

Help Center2016 Newest Black Oil and Pyrolysis Oil Refining to Diesel Distillation Plant
Related Products
-
Oil Sand Refining Machine Extract Oil by Pyrolysis and Distillation PlantNegotiableMOQ: 1 Set -
High Effeciency Used Oil Refinery Plant Vacuum Distillation Machine Without PollutionUS$ 35,000 - 58,000MOQ: 1 Set
-
24hours Non-stop 5 Tpd Tyre Oil to Diesel Distillation PlantNegotiableMOQ: 1
-
Used Ship Engine Oil Refining to Diesel Base Oil Distillation Machine 15tpdUS$ 55,000 - 86,000MOQ: 1 Set
-
10tpd Pyrolysis Fuel Oil Refinery to Diesel Fraction Oil Distillation Plant 2016 Hot SaleUS$ 48,000 - 76,000MOQ: 1 Set
| 1.SAFETY |
We have many safety devices like safety valves, alarming ring,automatic decreasing pressure device, oil-water separator, anti-back fire device, negative pressure device.these devices can guarantee the oil gas can not be back to the reactor and the distillation machine is working under the normal pressure.
| 2.ENERGY SAVING |
1)Flame path is designed as spiral so that quantity of heat can be fully used.
2)Tail gas recycle use by the reactor
3)catalyst helps to improve the oil quality
| 3.OUR ADVANTAGES |
a. we use the underground dedusting system , the main part of the dedusting system is called strong spray tower which is made from stainless steel .
b. the security system is composed of two water seals, pressure sensors, temperature sensors and safety valves

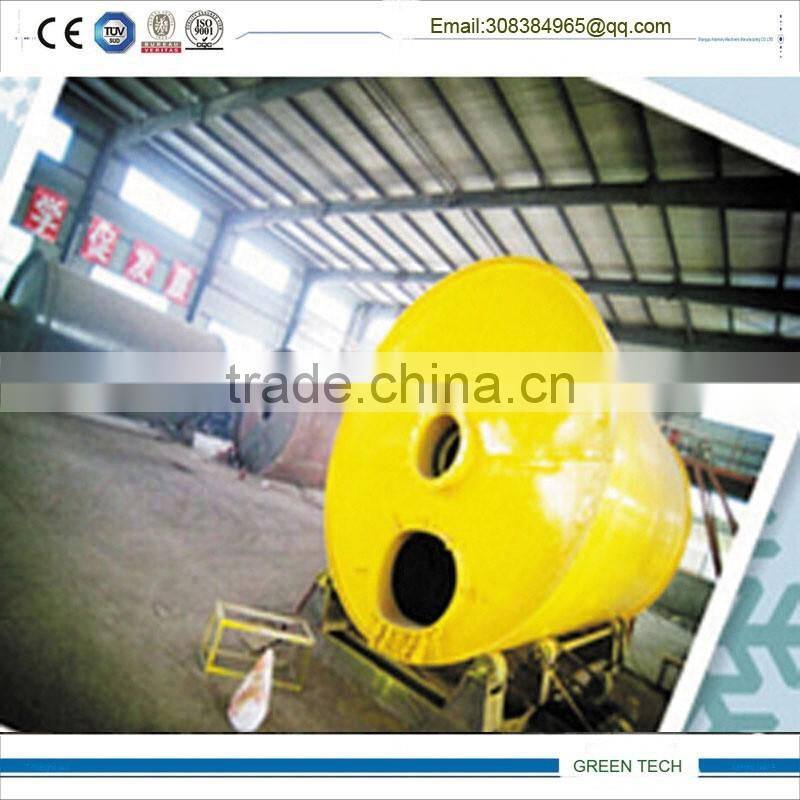

c. we use 2 condensers and one set of calandria cooling system to make the cooling line longer and cooling surface wider to get more oil. d. the bottom of the main reactor is also made from stainless steel
e. the filter system can help to get good quality of oil

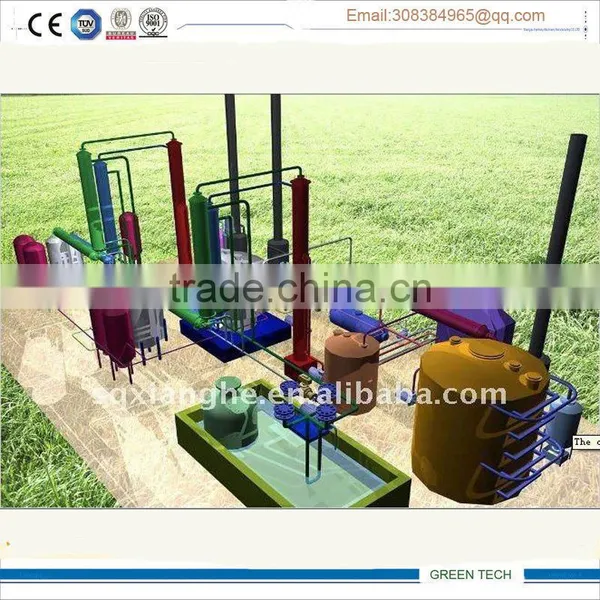

| The main parts of distillation plant |
| 4.SPECIFICATIONS | |
| Items | Contents |
| Raw materials | Heavy oil,fuel oil, furnace oil, pyrolysis oil,crude oil ,used engine oil |
| Average oil yield | 85%~90% |
| Material of Reactor | Q345R boiler steel plate |
| Thickness of Reactor | 16mm |
| Mode of cooling | Water Cooling |
| Power Consumption | 15KW |
| Heating materials | Coal, firewood,oil,natural gas |
| Model | D1500mm*L3000mm (3ton) |
| D2000mm*L5000mm (5ton) | |
| D2800mm*L6000mm (10ton) | |
| Rotate speed | 0.4 |
| Operating pressure | Normal |
4.2. Fuel:coal, oil, gas & firewood,electricity

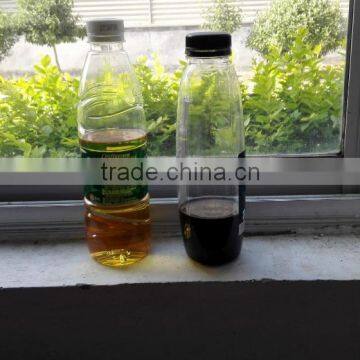

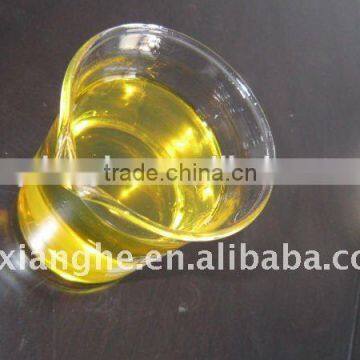

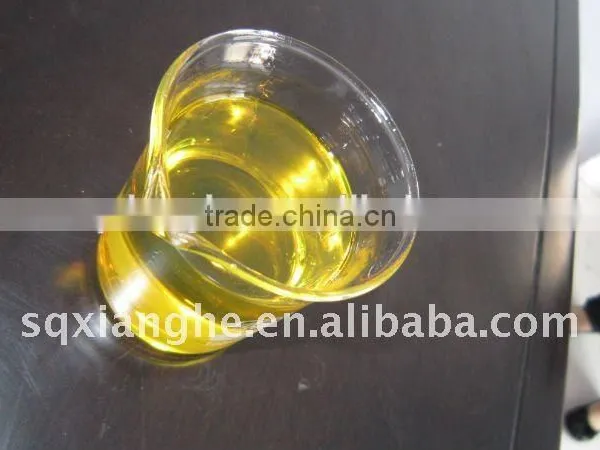

4.3. End product percentage:Diesel base oil,engine base oil
4.4. feeding:continuous feeding
4.5.Working pressure:positive and negative pressure
4.6. Cover land:around 200Square meters
4.7. Delivery time:20-25days after we receive deposit.
| 4.8.Shipment and container |
Model | Reactor material | Capacity | Container |
XHZT-DE05 | 316L stainless steel | 3-5tons | 2*40HQ |
XHZT-DE10 | 316L stainless steel | 6-10tons | 2*40HQ |
XHZT-DE15 | 316L stainless steel | 10-15tons | 2*40HQ |
XHZT-DE20 | 316L stainless steel | 15-20tons | 3*40HQ |
XHZT-DE25 | 316L stainless steel | 20-25tons | 3*40HQ |
XHZT-DE30 | 316L stainless steel | 25-30tons | 4*40HQ |
| 4.9. FOB Port (China) |
FOB lianyungang port, Jiangsu Province,China!
We can also arrange port according to customer
| 5.0. after-sales service |
(1)We will provide the foundation drawings and catalyst formular once we receive deposit
(2)installation:we will send 1-2 engineer to your local for guide installation and debugging
Need more information, contact me freely, any time for you!!!
