full automatic waste rubber continuous pyrolysis machine

FOB Price

USD $250,000 - $360,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port lianyungang qingdao shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tire Machine
Tire Machine Type	Tire Recycling Machine	Place of Origin	Henan, China
Brand Name	XHZT	Model Number	XHLX-40-60
Voltage	220/380V	Power(W)	230kw
Dimension(LWH)	1200025002000MM	Weight	45000KGS
Certification	ISO,CO	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

40-60 Ton Fully Continuous Pyrolysis Plant

1. Plant Features:

1) widely usage

Can be used for tyre 5-10cm,plastic,rubber ,oil sludge, cooking waste ,live waste, oil sand ,oily soild

2) static pyrolysis ,getting higher quality oil, less dust in oil

3) large capacity

24hours produce 20-30 Ton material

4) continuous pyrolysis, no need cooling reactor, saving fuel, saving working time

5) The plant can working 25dyas*24hours without stop, fully continuous

6) Continuous feeding without stop

7) Continuous slag out without stop

8) Non-liquid gas can be reused to support heating for heating reactor , saving fuel energy

9) good pressure tightness, safe

2. Technical parameter

Reactor size	(LWH)1222.5m
volumn	60M³
material	Q345R/Stainless steel
Work pressure	Normal pressure/slightly negative pressure
Process capacity /24hours	60 Ton tyre
	40 Ton plastic
	Oil sludge 40-60Ton
	Oil sand 40-60TON
output	Base oil
Working principle	Oxygen free pyrolysis
workers	1
power	20/40kw
voltage	220v/380v
Power consumption/24hours	230 kw
Water consumption	4-6Ton
Feeding time	Continuous feeding
Carbon discharge time	Continuous slage out
working life time	4-5yeat
Slag temperature	150℃
Fuel	Gas, oil
Pyrolysis way	Static pyrolysis, non-rotate
Slag way	Continuous slag out
Dust smoke temperature	350℃
Pyrolysis temperature	280-350℃
Max-temperature	600℃
oil come temperature	350℃
Raw material delivery speed	0.4-2m/min

3.Work-flow:

4.Pyrolysis Plant Type Difference

Type	Feeding way	Heating way	Heating fuel	Reactor type	Pyrolsysis way	environmental effect	Featurs
Batch	By human	Direct /indirect heating	Coal, wood, oil, gas	Round type/cylinder	Rotation pyrolsysis	environmental	After one batch need to cool down
Semi-continuous	Auto-feeder	Direct /indirect heating	Coal, wood, oil, gas	Round type/cylinder	Rotation pyrolsyis	environmental	Need to cool down to slag
Fully continuous	Auto-feeder	Indirect	Oil,gas	Cuboid/rectangular	Static pyrolsysis output oil with less dust, oil with better quality	Less dust, more environmental	No need to cool Saving fuel and working time

Working details:

batch type:

one day one batch, day time heating pyrolysis, night time cooling .

semi-continuous type:

First time feeding 10Ton and heating, after 8 or 6 hours feeding second time 6 Ton and heating and pyrolsyis for another 6 hours

then feeding third time 4 Ton . And continue heating, after 5hours, this 5 Ton raw material complete pyrolsyised ,then cooling down reactor , and slag out. Semi-continuous pyrolysis means feeding 3 times (intermittent) and slag one time.

Compare to batch type, this semi-continuous plant just add auto feeder. this is not real meaning continuous.

fully continuous pyrolsysis,

continuous feeding without stop and the plant running 24hours*26dayst untill plant overhual.

continuous feeding , and continuous slag out.

6.Avout us

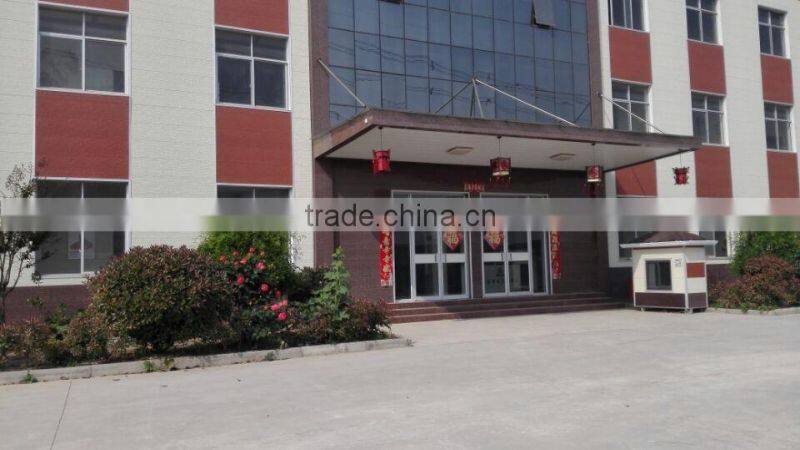

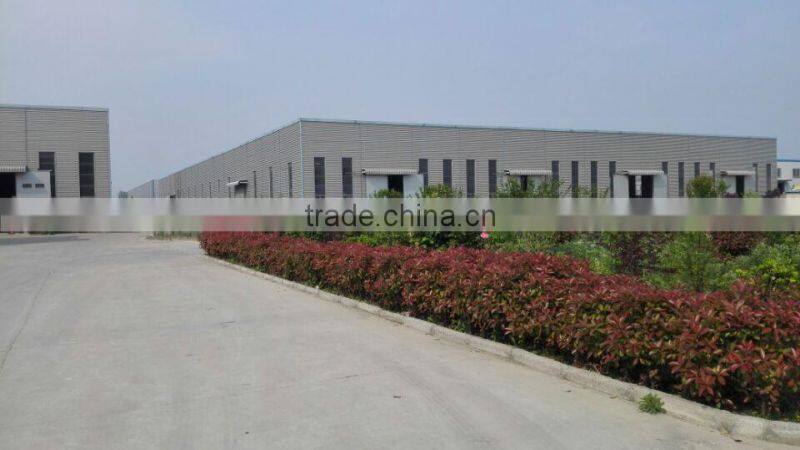

Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.

7.Our products:

Pyrolysis plant (convert waste to fuel oil )	Type	Daily capacity	Used for	Final Product and usage
	Batch type	5Ton 10ton 12ton 15ton	Waste tyre Plastic Rubber Oil sludge Oily waste Others	Fuel oil Used for heating boiler as furnace oil Or refined for distillation oil
	Semi-continuous type	15Ton, 20Ton
	Fully continuous type	20ton 30ton 60ton
	Special type	20Ton 15ton

Type

Daily capacity

Used for

Final Product and usage

Distillation plant

Refining fuel oil/waste oil diesel

Fully continuous type

5ton

10ton

15ton

20ton

30ton

40ton

Used motor oil

Used lube

Washing parts oil

Pyrolysis oil

Crude oil

Others

diesel for engine

8.Plastc oil parameters:

Density	g/cm³	0.83-0.87
Freezing Point	^oC	10
flash point	^oC	40
Kinematic viscosity	mPa.s	8
Combustion value	kJ/kg	9500

Item	Tire Oil
Density g/cm³	0.90-0.92
Freezing Point^oC	-10
flash point^oC	50
Kinematic viscosity mPa.s	6
Combustion valuekJ/kg	10500
