Specifications
Easy to cleanAdaptable to many oil seeds
Oil Material: peanut, rape seed, sesame, walnut, sunflower etc.

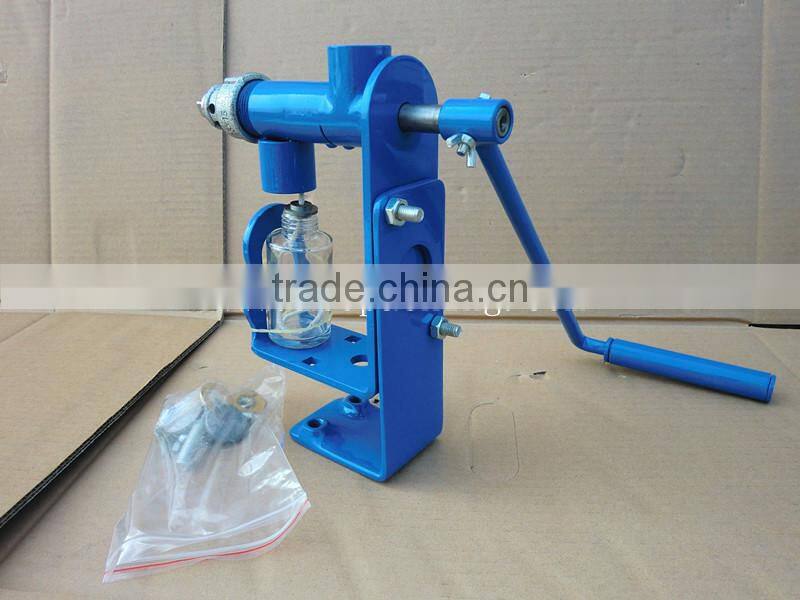

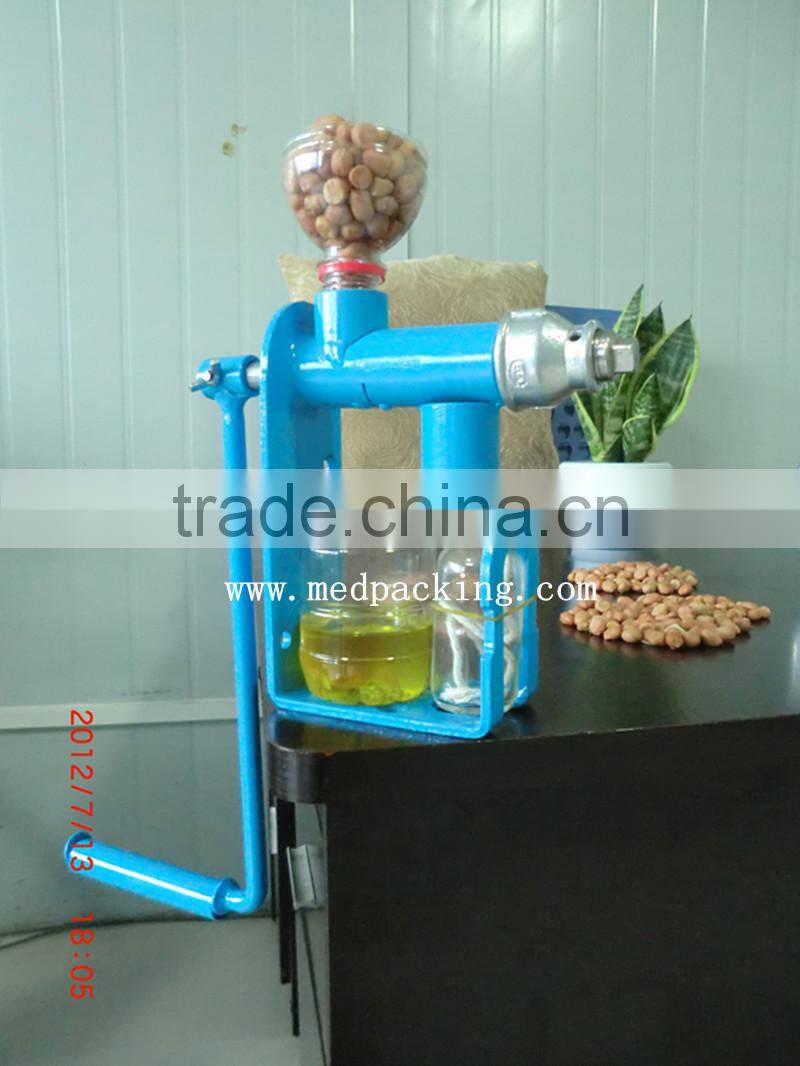

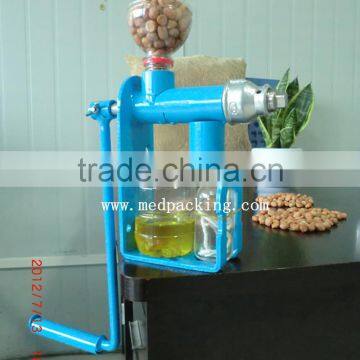

Manual Mini Seed Oil Expeller Oil press
Enjoy life, enjoy oil pressing, DIY your own green, chemical additive-free and healthy edible oil. Great option to household oil pressing.
Manually operated by one person only
Simple operation
Continuous expelling
Very little maintenance
High extraction efficiency
Easy to clean
Adaptable to many oil seeds
Oil Material: peanut, rape seed, sesame, walnut, sunflower etc.
Operation requirement:
Components: This machine consists of frame, press part, driver part and heating part etc. In view of environmental protection and recycling, material feeding/collecting equipment can be replaced with drink bottle, which is prepared by buyer.
Assembly:Before operation please fix the frame and make sure crank can be turned freely.
Lubricate washer with edible oil and insert on screw shaft from the small end.
Insert screw shaft in press cage.
Screw on press cage cap and screw on terminal adjustment bolt.
Attach crank arm to screw shaft and tighten the bolt.
Fill 80% fuel to the lamp bottle (kerosene or alcohol). Pass a 15cm wick through the washer. Leave 0.5cm of wick outside and put the longer end in the fuel bottle. Place washer at the bottle mouth. Place the lamp under press cage. Secure the lamp with rubber band.
Heating: To guarantee the oil output, the press cage should be heated for about 10 minutes. when the press cage temperature reaches 50-70°C, material can be put into inlet for pressing. The lamp remains heating during pressing as well.
Operation: Make sure no impurities in the material before pressing.
At the beginning of pressing, oil flowing from the terminal adjustment bolt is normal.
Loose the terminal adjustment bolt if the discharged cake is too dry and crank turning
resistance is too big
Tighten the terminal adjustment bolt if the discharged cake contains too much oil residual.
Cleaning: Clean the oil press immediately after operation. Otherwise residual in the machine will get hard and affect next operation.
Safety and warnings
Material friction and lamp heating cause very hot press cage, press cage cap and terminal adjustment bolt. Keep hands clear of the hot parts. And if you indeed need operate the hot parts please take reasonable protection steps.
Notes: With technology renewal our product is improved continuously. We are not liable for informing buyer about product change in future.
Accessories:
crank
fuel bottle
frame
screw shaft
press cage
press cage cap
terminal adjustment bolt
