Ultrasonic tube sealing machine/ tube sealing machinery/Ultrasonic Wave Tube Sealing Machine
- 100 Set / Sets per Month
- Shenzhen/Ningbo
- Credit Card PayPal
- high speed metal can vacuum seamer machine
- Factory Automatic Powder Can Seamer/Sealing Machine with Discount
- fish canning machine food cans sealing machine
- milk powder tin sealing machine special-shaped cans sealing machine
- MDcare MD660 LCD Screen Continuous Medical Sealer Dental Cutting 1.2cm width Sterilization Machinery
- MDcare MD386 7'' LCD Touch Screen 77cm length Intellectual Cut-seal-print Complexer
Product Details
Condition: | New | Application: | Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical | Packaging Type: | Cartons |
Packaging Material: | Paper | Automatic Grade: | Semi-Automatic | Driven Type: | Pneumatic |
Voltage: | 220V or 110V can be customized | Power: | 1250W | Place of Origin: | Guangdong, China |
Brand Name: | YASON | Model Number: | YS-125 | Dimension(L*W*H): | 1100x460x450mm |
Weight: | 100kg | Certification: | No have | After-sales Service Provided: | No overseas service provided |
Product Description
Ultrasonic tube sealing machine/ tube sealing machinery/Ultrasonic Wave Tube Sealing Machine
Please ask me for the manual and operation video if you need it!
Overview
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply etc. With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.
Two working principle
--------------------------------------------------------------------------------------------------------------------------------------------------
Utilizing the energy produced by c high speed vibration imposed on the tube and act on plastic tube in order heat the plastic tube rapidly and welding , under pneumatic mechanical pressure, forming the sealing the sealing patterns of to head mould foot mould while removal of excess material to reach good effect at last .
Machine Feature
-------------------------------------------------------------------------------------------------------------------------------------------
l Two dimensional adjustment of work piece platform, it is easy to operate.
l 2.It adopts Taiwan cassette mechanism and circuit Lines, using famous brand of Ultrasonic parts.
l 3.Overload protection, phase separation protection, power-fail protection.
l 4.Large Ultrasonic Out put power to ensure the sealing quality of various specifications of tube.
l 5.It can sealing soft tube also can printing date and cutting.
Technical parameter
-------------------------------------------------------------------------------------------------------------------------------------------
Environmental temperature | 0°C +35°C |
Environment humidity | relative humidity below 85% |
Working Height | 0-300mm(Can be Customized) |
Air pressure | 0.2----0.6 MPa |
Maximum output power | 1250W |
Tube height | 50~180mm ( Can be Customized ) |
Working table | vertical/horizontal adjustable worktable |
Ultrasonic working frequency | 20kHZ |
Weight | 100kg |
*Note: The above parameters for reference only. The machine constantly upgrades parameters may cause the actual discrepancies, please understand.

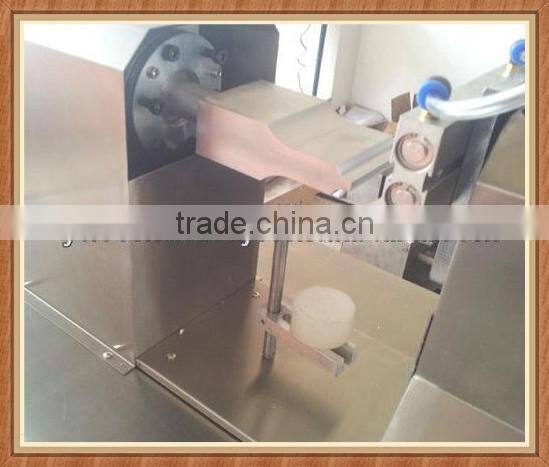

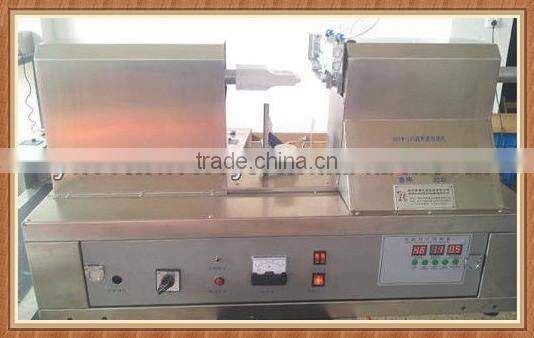

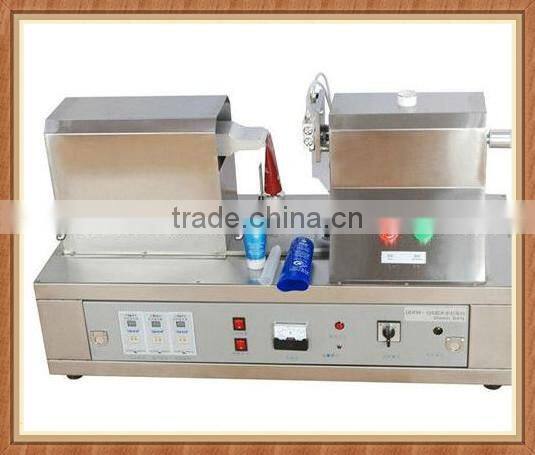

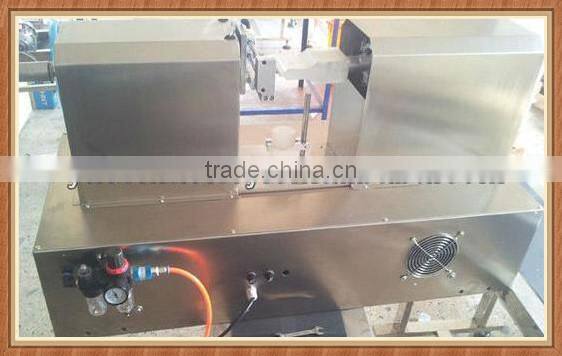

Item pictures
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
After-sales
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our machines undergo an extensive and strict testing and quality control procedure, ensuring each and every item purchased meet global quality standards.
♦Payment Methods♦
These payments of T/T, L/C, Western Union, MoneyGram,Paypal are accepted. If you have any problem with the payment, please leave a message to us.
♦Logistics♦
DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company. Please leave a message to us.
♦Tracking Number♦
Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.
♦Feedback♦
Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.
♦Refund♦
Any damage or shortage of our goods when you receive your items. Please take some photos for a witness. We will deal with it in 24 hours. Frequently, we will send a new part of items for alternative and heavy-damage, Before refund is accepted, please leave a message to us.
Ultrasonic tube sealing machine/ tube sealing machinery/Ultrasonic Wave Tube Sealing Machine
