Double Size Labeling Machine for Round Bottles

Specifications

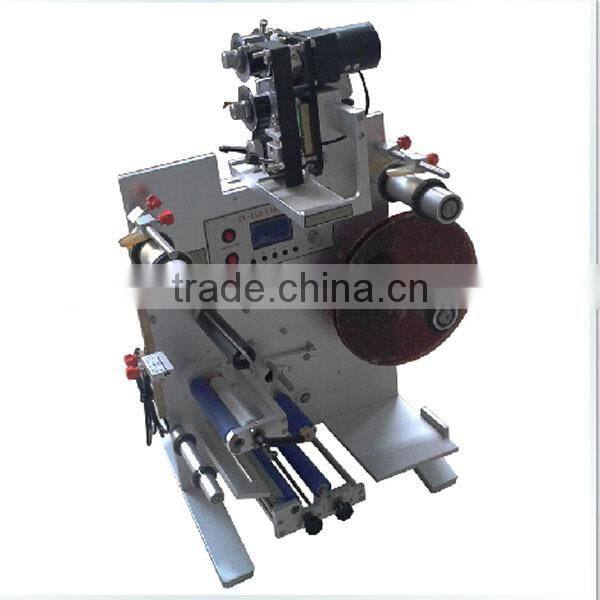

SL-130 Round Bottle Labeling Machine

Please ask me for the manual and operation video if you need it!

♦Introductions♦

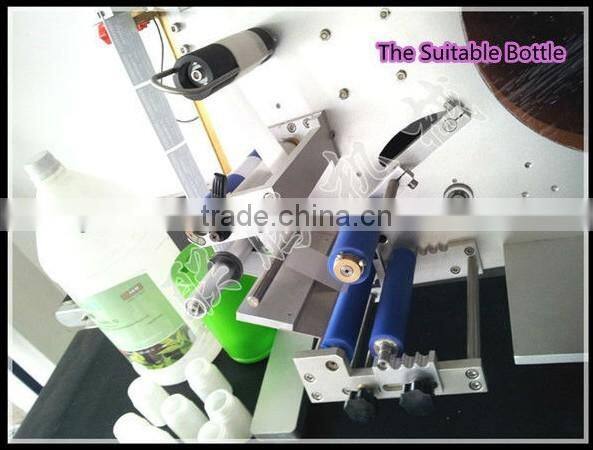

     SL-130 round bottle labeling machine is applicable for labeling various round bottles made of
glass,plastics,metal and so on with accurate positions.Also a coder can be mounted on it to print such identifications as production date,shelf life and product batch number. The machine adopts an intelligent control system and an optimized design,thun featured by easy use  and stable performance. In particular it’s suitable for labeling and coding products with a small quantity but a great variety.

♦Relevant parameter♦

♦Descriptions for Control System♦

Labeling Power : to control the power swithch of the complete machine.
Coding Power: to control the power supply for the coder.
Coder Detection: to detect whether the coder works normally.
Coder Temp  Control: to control the codes’s heating temperature.
Display screen: to display holding time,labeling time,pressing bottle time and single/double-label as well as  function as a counter.
Single/double-label selection key.
selection key for functions on display screen

Keys for setting the time parameter; press the two keys at the same time for a second and the counter will set to zero automatically.

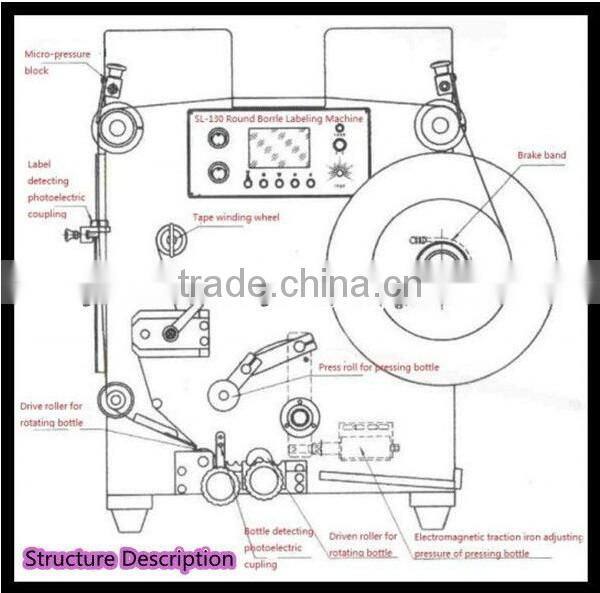

♦How to Install Label Tape and Adjust its Tightness♦
1.  Release the handle of the press belt and wind the label tape in accordance with label tape winding draming; clamp the label tape head with a U-type clip and then compress the handle of the press belt.
2.  The label tape’s tightness must be moderate as a too tight tape may be broken while a too loose one may have an impact on the labeling position. The micro-pressure block’s pressure and the break band’s tightness can be adjusted in accordance with actual conditions.
3.  The waste tape’s tightness can be adjusted through the hex socket screw on the tape winding wheel.

♦How to Adjust Rotary Torque of Bottle♦
Adjust the distance between drive and driven rollers in accordance with the bottle’s outer diameter; and then adjust the pressure of the press roll for pressing bottle; the pressure value is subject to the smooth detachment of the label and no slipping of the bottle during labeling.

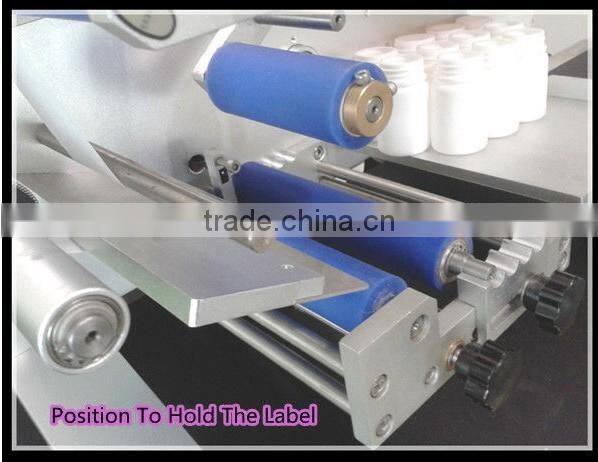

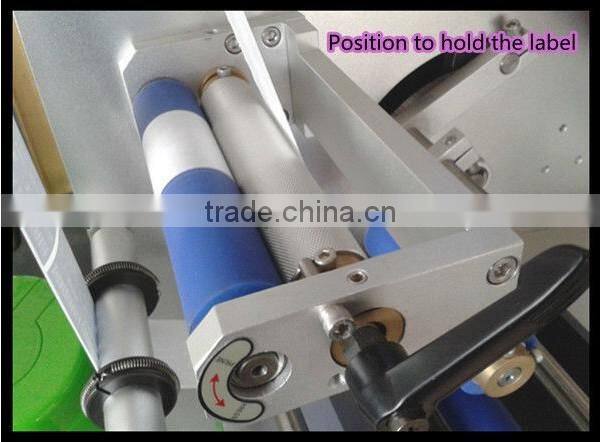

♦How to Attach a Lable♦
1.  Adjust the longitudinal position of the bottle detecting photoelectric coupling and the label to make the label on the accurate position to be labeled on the bottle.
2.  Sitch on Labeling Power: if coding is needed,switch on Coder Power and Coder Temp Control (See Instructions for details on operating the codder ).
3.  Set pressing bottle time, holding time and labeling time on the control panel as required. In case of  double-label,it’s necessary to set the interval. After setting all parameters,put in the bottle and the machine will label the bottle automatically.

♦List of Included Accessories♦

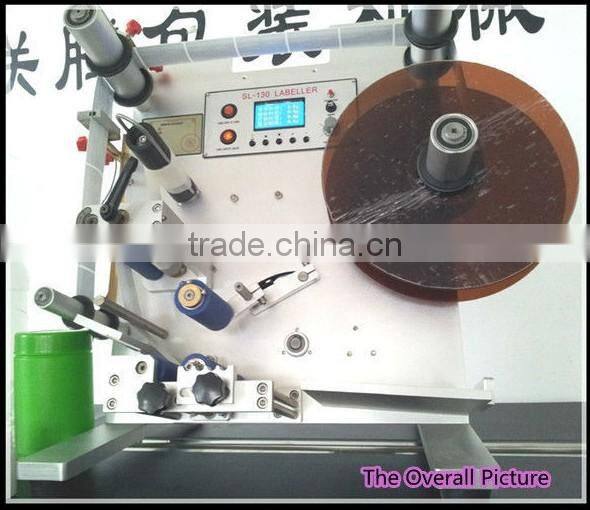

♦Machine Picture♦

♦Payment Methods♦

These payments of T/T, L/C, Western Union, MoneyGram,Paypal are accepted. If you have any problem with the payment, please leave a message to us.

♦Logistics♦

DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company. Please leave a message to us.

♦Tracking Number♦

Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.

♦Feedback♦

Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.

♦Refund♦

Any damage or shortage of our goods when you receive your items. Please take some photos for a witness. We will deal with it in 24 hours. Frequently, we will send a new part of items for alternative and heavy-damage, Before refund is accepted, please leave a message to us.

♦FAQ♦

1.How to confirm the machine is just what I need?

Answer:Please provide the pic of the bottle,and tell me the size of the label for us to check and

we'll check the information you provide to see whether the machine is suitable or not.

2.The guarantee of the machine?

Answer:If you need to replace any part of the machine,we'll offer you the replacement part for free,and you just need to pay for the back shipping cost is OK.

3.Do you have manual or operation video for us to know more about the machine?

Answer:Yes,we will send you the manual and operation video after you ask for us.
