Home > Products > lab equipment > AM90L-H Lab Stirrer blender with 4 spiral blades impeller

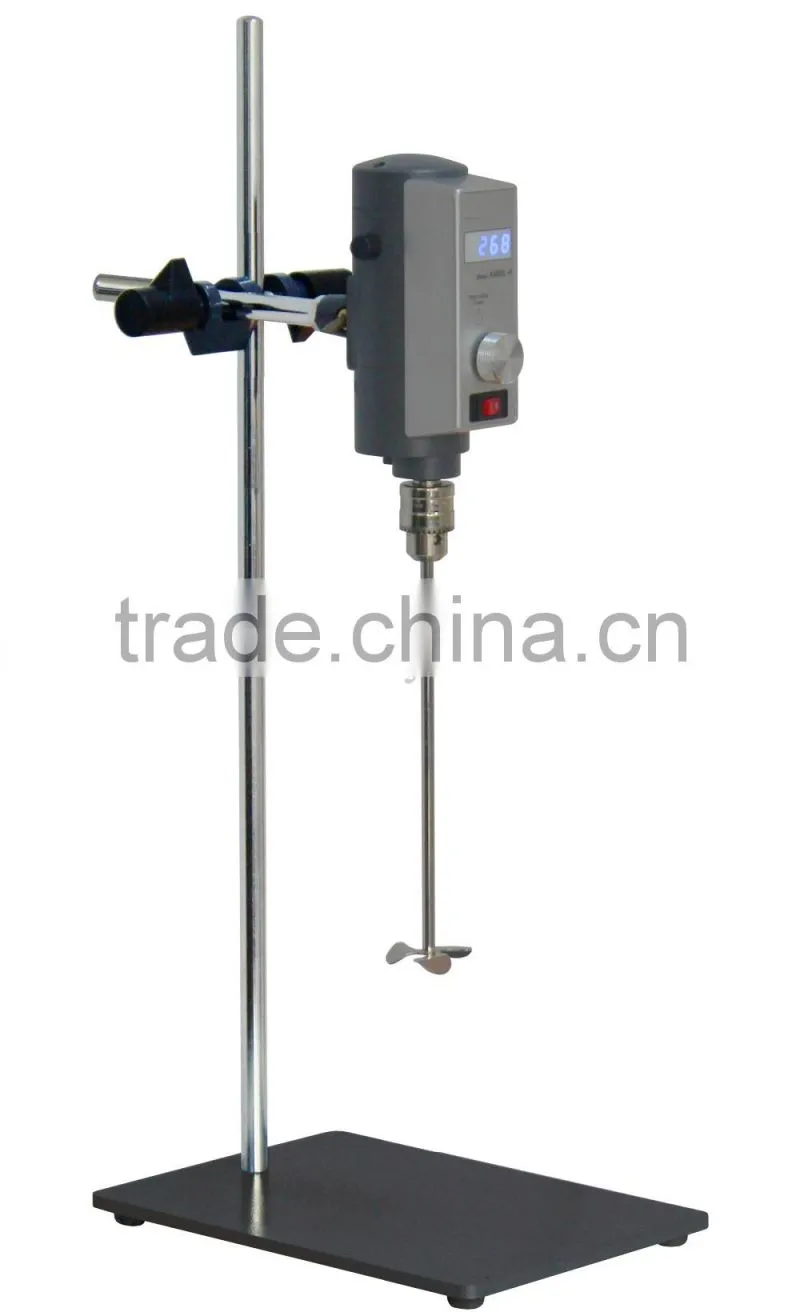

AM90L-H Lab Stirrer blender with 4 spiral blades impeller
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
Product Details
Condition: | New | Mixer Type: | Agitator | Product Type: | Other, high viscosity liquid |
Application: | Liquid | Additional Capabilities: | Other, mixing | Place of Origin: | Guangdong, China |
Brand Name: | YASON | Model Number: | AM90L-H | Max. Loading Capacity: | 20L |
Voltage: | 220V | Power(W): | 250W | Dimension(L*W*H): | 215 * 310 * 720mm |
Certification: | CE Certificate | Warranty: | 1 Year | After-sales Service Provided: | No overseas service provided |
Product Description
Name:AM90L-H Laboratory Stirrer/Stirring machine
Technical parameters:
Type | AM90L-H |
Rated voltage | AC220V |
Input power | 150W |
Output power | 90W |
Stirring shaft output torque | 94.0 N.cm |
Work mode | S1 (continuous) |
Operating control mode | Combined control knob |
Speed control type | Stepless |
Speed adjusting range | 100-1800RPM |
Timing control range | 1-1000 min |
Speed digital display | x1rpm LED |
Speed dynamic detection | YES |
Overload protection function | YES |
Speed memory function | YES |
Stirring shaft fixed way | quick clamp |
Clamping torque | 92.0 N.cm |
Clamping range | Φ2-10mm |
Stirring impeller configuration | Four spiral blades impeller |
Stirring capacity | 50-20000ML |
Stirring processing viscosity | 100000mPa.S |
Allow environment temperature | ≤40℃ |
Allow relative humidity | ≤80% |
Size | 215 * 310 * 720mm |
Net Weight | 8.4kg |
Gross weight | 10kg |
Product introduction:
AM90L-H laboratory stirrer adopts the structure compact series type micro motor driver, suitable for laboratory low to medium and high viscosity of the liquid mixture stirring. This machine consists of driving motor, speed controller and increase torque, etc. Mixing console using high density die casting aluminum alloy for the body, stable operation; Output terminal application variable speed power organization, make the output torque multiplication; Speed controller adopts IC speed detection constant power speed regulation technology, instantly effective compensation because of load change and the power supply voltage fluctuation caused by the speed of change. Running speed according to the experiment set arbitrary, digital display intuitive stirring speed, to ensure that the data collection. Built-in soft starting, automatic overload protection, constant all the compensation.
We aslo have other muddler
Company Information
Our company is a professional manufacturer of packing machines and packing materials. On the basis of advanced equipment and workmanship, we have excellent production technicians and an efficient distribution team, as well as good service staff members, so that we can undertake your orders very efficiently. When we have the confidence on the high quality of our products, we offer very competitive prices at the same time.
Our business depends on your business and our purpose is "supporting you". We mainly provide popular products with high quality at home and abroad and create competitive advantages for our customers for their own competition. In addition, you can suggest any design or give any special requirement for our products and we will do our best to settle them for you. We believe our honesty and sincerity will make any cooperation agreeable.
We look forward to long-term and prosperous cooperation with customers around the world. If you have any inquiry, please don't hesitate to contact us and we are on duty during the whole 24 hours. Your satisfaction is exactly what we pursue.
Specifications
1.Have much in stock
2.Factory Price
3,Combined control knob operating control mode
4.Digital Control
5,Four spiral blades impeller
normal safe packaging:
Package:Paper Carton & foams,wooden case
Shipping Methods:DHL,Fedex,UPS,TNT,EMS
Delivery Time:Within 3days after payment confirmed
Packaging & Shipping
1)- We usually do the package with carton box and foam.
2)- We usually ship out the goods within 3 days.
3)- If the item is in stock, we will send it in 24 hours for you.
4)- DHL, UPS, FedEx, TNT are our choices. If you have a reliable shipping companies, please let me know.
Our Services
1)- We will check the package and do the test before the shipment in case the purchased goods is workable.
2)- We want smooth transactions, if you have any problem, issues, concern before purchase, please let us know.
3)- Once your order from us, we will provide excellent after-service for you.
4)- If there is any damage or shortage after picked up. Please inform us immediately.
5)- Any refund or replace for the goods purchased, please let us know first.
