Factory Supplier AE300L-PN Laboratory emulsifying machine with Operating state indicate
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
You May Like
-
AE500S-H (70G) Laboratory high speed digital display emulsifying machine
-
AE500S-P (70G) Infinite speed control Laboratory high-shear emulsifying machine
-
AE500S-H (70G) high speed digital display emulsifying machine mixer machine
-
Factory supplier emulsifying machine mixer machine with speed digital display
-
Factory supplier emulsifying machine mixer machine with timing function
-
AM90L-H Lab Stirrer blender with 4 spiral blades impeller
Product Details
Condition | New | Mixer Type | Homogenizer | |
Product Type | Other, chemicals | Application | Liquid with Suspended Solids | |
Additional Capabilities | Other, emulsifying | Place of Origin | Guangdong, China | |
Brand Name | YASON | Model Number | AE300L-PN | |
Max. Loading Capacity | 40L | Voltage | 220V | |
Power(W) | 510W | Dimension(L*W*H) | 215 * 310 * 720mm | |
Certification | ISO | Warranty | 12 Months | |
After-sales Service Provided | No overseas service provided |
Product Description
Name:AE300L-H Laboratory high-shear emulsifying machine
Technical parameters:
Type | AE300L-H |
Rated voltage | AC220V |
Rated frequency | 50/60Hz |
Input power | 510W |
Output power | 300W |
Stirring shaft output torque | 96.0 N.cm |
Work mode | S1 (continuous) |
Operating control mode | Combined control knob |
Speed adjusting range | 2000-13000RPM |
Speed control type | stepless |
Timing control range | 1-1000 min |
Speed digital display | x10rpm LED |
Speed dynamic detection | YES |
Speed memory function | YES |
Overload protection function | YES |
Work head maximum torque | 92.0 N.cm |
Rotor maximum linear velocity | 18m/s |
Work head material | stainless steel 304 |
Work head diameter | 70 mm |
Minimum height immersed in liquid | 50mm |
Maximum height immersed in liquid | 236mm |
Standard configuration of stator | 5mm2 20mm2 50mm2 |
Stirring capacity | 500-40000ML |
Stirring processing viscosity | 8000mPa.S |
Allow environment temperature | ≤40℃ |
Allow relative humidity | ≤90% |
Size | 215 * 310 * 720mm |
Net Weight | 10kg |
Gross weight | 11kg |
Product introduction:
AE300L-H laboratory shear emulsifying machine with compact structure series miniature high-speed motor driver, suitable for lab or pilot plant of low to medium and high viscosity liquid mixing, crushing particle material shearing emulsification in liquid medium. The machine by high die casting aluminum alloy for the drive motor, the high quality stainless steel refined shear emulsifying work head and speed controller, etc. Speed controller adopts IC speed detection constant power speed regulation technology, instantly effective compensation because of load change and the power supply voltage fluctuation caused by the speed of change. Speed display intuitive digital operation, the operation speed according to the experiment set arbitrary, with soft start, automatic overload protection, compensation, all the constant speed mixing experiment effect is ideal, convenient data acquisition.

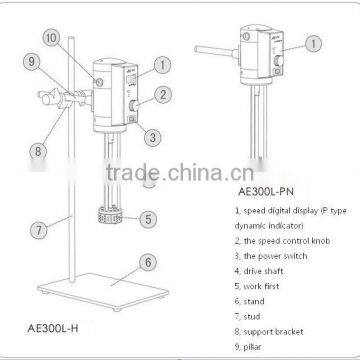

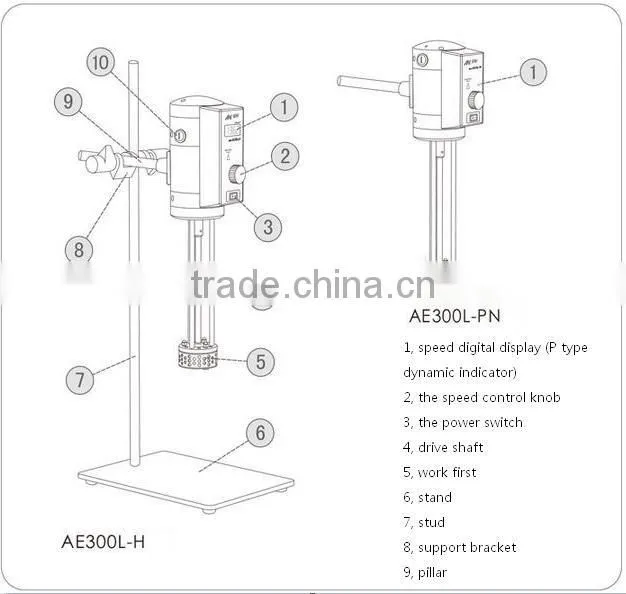

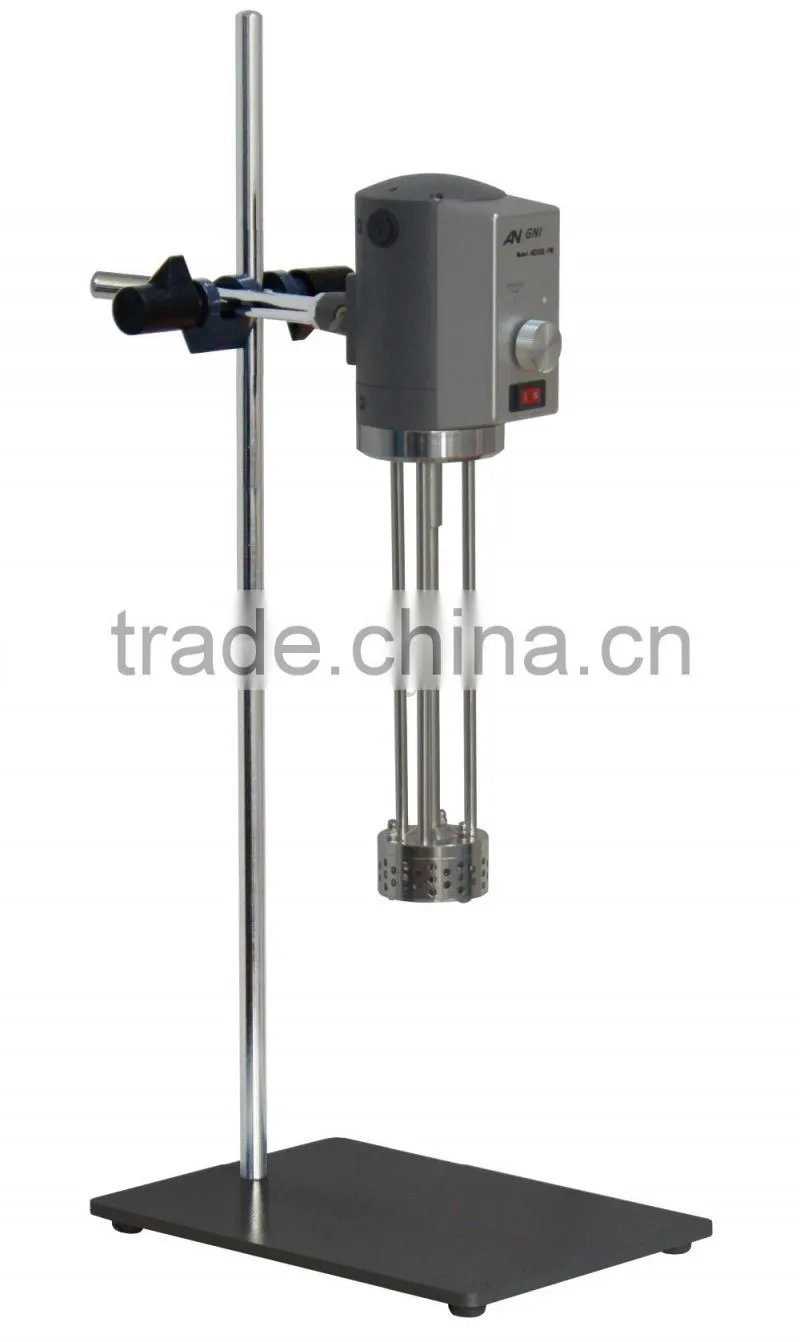

Pictures
Replaceable Head
Spare Parts
