YS-DH50 Semi Automatic Cold Oil Press machine for peanut or walnut or coconut

YS-DH50 Semi Automatic Oil Press machine for peanut or walnut or coconut

one year warranty and lifelong technical services

Product parameters:

operational process:

First, before the start of preparation

1. Check whether there is loosening fasteners
2. Inspect the line is normal, the machine will plug into 220V power supply, check the voltage meter display is normal
3. slag mouth mother with two screws 36 wrench to loosen 2-3 turns
4. Put the hopper below the discharge opening inwardly turned off
5. Before using the machine, first check the vacuum pump oil window is missing, such as missing please add 30 oil machinery
6. selection of raw materials, such as sesame must undergo screening dockage, to master fire when roasted sesame seeds, roasted sesame fire will turn black.
7. Process: washing ----- ---- roasted ----- filter press

Second, preheat

1. 1 Adjust the temperature to between 50-100 degrees, the temperature is adjusted to between 170-200 degrees 2
2. When the green light is showing warming, red light indicates normal temperature has been reached, the temperature after 2 red light to wait for 5-10 minutes, because the thermometer can only detect the appearance of virgin bore, the internal temperature is not detected, It requires prolonged heating.
3. The temperature reaches the normal temperature can be added to the raw material.

Third, the production

1. For oil yield in terms of raw material, the use of this series of press oil extraction, oil yield Broiling key is that "seven Broiling thirds press." We recommend the use of pre-press and require customers to first master the technology or Broiling I recommend buying the finished plant quality cooked sesame seeds, in order to achieve the desired economic effect.
2. The new machine when it is not the run or feed is not normal, not a lot of feeding into the hopper, so as to avoid pressing shaft and the virgin bore stuck. After preheating the starter motor switch is complete, following the hopper discharge opening to the outside slowly opened until after the cake and smooth, about to slag mouth mother with two screws to the inside of the tightening wrench 36 3-5 laps before They can put a lot of raw materials, while the hopper will slow below the discharge opening opened to the outside.
3. The normal oil yield is 40-50% (based on the oil content of the raw materials themselves), 20 pounds of virgin material per hour, the cake thickness controlled between 0.2-0.6 mm prevail.

Fourth, the oil filter

1. oil into the filter cloth comprehensive coverage, start temperature around switch. If the oil squeezed out when the flow into the left side of the switch to the left, while the vacuum pump valve door to the left
2. The heating temperature is about 5-7 minutes or so, about 70 degrees in the grease before start box above electronic vacuum switch, filter start.
3. When the oil filter, please do not put out the oil, if oil drain pump please appropriated in the opposite direction change valve, grease filter been completed, immediately stop the vacuum motor switch.
4. The filter pump while coming out of the vent will be white mist, is a normal phenomenon.
5. Due to the shape of the vacuum pump is relatively small, 3A-type vacuum filter 3-5 pounds per hour of oil, 6A type vacuum filter 4-8 pounds per hour of oil, as a result of this slow filtration pump are not satisfied, you can choose other filter means of their own .
6. inflow drums 2/3, turn the barrel oil pan to another, note the clean oil pan to prevent the heater into the filter barrel slit leads on electric wire failure.
7. If the filter cloth and grease Do not start the vacuum pump.

Sixth, the end of the oil extraction work

1. slag mouth mother with two screws 36 wrench to loosen 2-3 turns. Then start the motor idling switch 5-10 coil, so that the shaft and squeeze juice inside bore remaining material slowly introduced observed taphole without scum and then switch off the motor.
2. 220V power supply cut off, and then the vacuum accumulator beneath the rear of the machine open after 1 minute off.

The flowing link is the video of the machine:

/v_show/id_XOTAzODgyOTQ0.html

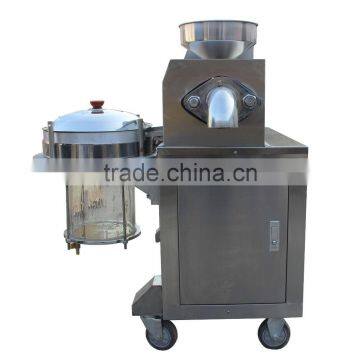

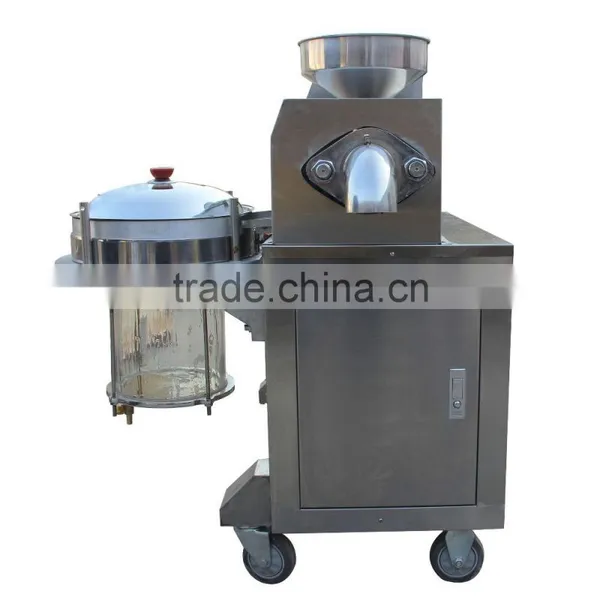

Pictures of product:

1)- We usually do the package with carton box and foam.
2)- We usually ship out the goods within 3 days.
3)- If the item is in stock, we will send it in 24 hours for you.
4)- DHL, UPS, FedEx, TNT are our choices. If you have a reliable shipping companies, please let me know.

1)- We will check the package and do the test before the shipment in case the purchased goods is workable.
2)- We want smooth transactions, if you have any problem, issues, concern before purchase, please let us know.
3)- Once your order from us, we will provide excellent after-service for you.
4)- If there is any damage or shortage after picked up. Please inform us immediately.
5)- Any refund or replace for the goods purchased, please let us know first.
