50-500ml Stainless Steel Piston Double Heads Paste Filling Machine,Honey Stick Sacue Filling Machine

50-500ml Stainless Steel Piston Double Heads Paste Filling Machine,Honey Stick Sacue Filling Machine photo-1
US$ 440 - 1,150 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Cartons
Packaging Material Paper, Wood
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Power 20w
Place of Origin Guangdong, China
Brand Name YASON
Model Number YS-PFD500
Dimension(L*W*H) 920*340*320mm
Weight 65
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Product Description



   Piston pneumatic Filler is of wide applicability and can be used for doing filling of creams and liquids in the fields of daily chemistry, food and beverage,  pharmacy, chemistry and so on.Inquire the manufacturer about other uses. Any damage due to misuse is out of limitation of warranty of the manufacturer. Such risks shall be borne by the user solely.Strictly following the instruments is a part of operation requirements.

    This machine is of reasonable structure, reliable performance and accurate quantification. It applies pneumatically-driven structure. The shell and all the parts connected with filling materials are made of stainless steel (SS304 is used for standard ones and SS316 can also be customized). The inner walls of main parts are mirror-polished in roughness Ra≤0.2-0.4µm, which conforms to the requirements of GMP certification. Therefore, it is rustless and corrosion resistant. In addition, the user can adjust the filling volume and

speed within the type limitation as required.



Characteristics

1.Be used for filling with particulate matter sauce,paste,liquid and other material;
2.Some of the materials used 304 stainless steel;
3.Full pneumatic control, easy to operate,remove and clean; Ideal equipment for filling inflammable, explosive materials.



Technical Parameter

Fillable range10-100ml,10-300ml,50-500ml,100-1000ml,500ml-2500ml,1000-5000ml
Filling speed≤3000pcs/Hour
Air pressure0.4MPa



MaterialStainless steel
Automatic GradeSemi-Automatic
Filling accuracy±1%
Air pressure range4-6kg/cm2
Powerpneumatic
Filling headDouble Heads
Shipping package size950×420×380mm



 ♦Packing List♦

Seal ring for discharge piston shaft2 pcs
Anti-Drip Seal Ring  4pcs
Seal ring for discharge end 2pcs
Seal ring for changeable nozzle2pcs
Piston Seal Ring2pcs
Yoke Seal Ring 2pcs
Philips Screwdriver1pcs
Allen Key(6,8)Each 1 pcs
Open end wrench1pcs
Power wire1 strip
Pedal Switch1pcs
Instructions1 copy
Warranty Card1 copy
Certificate of comformity1 copy



♦Pictures♦

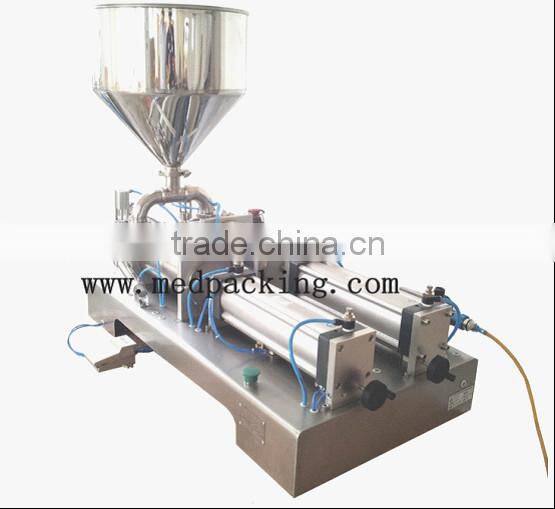

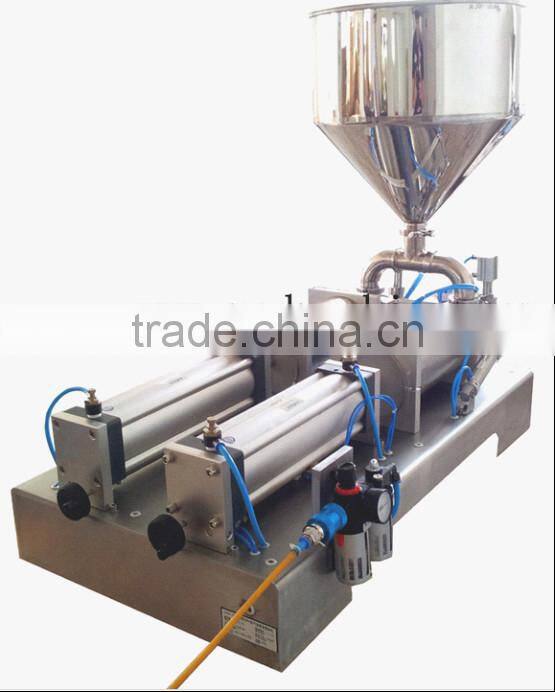

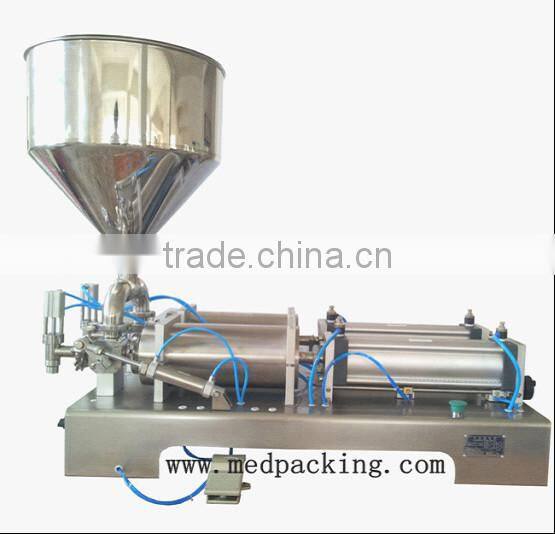

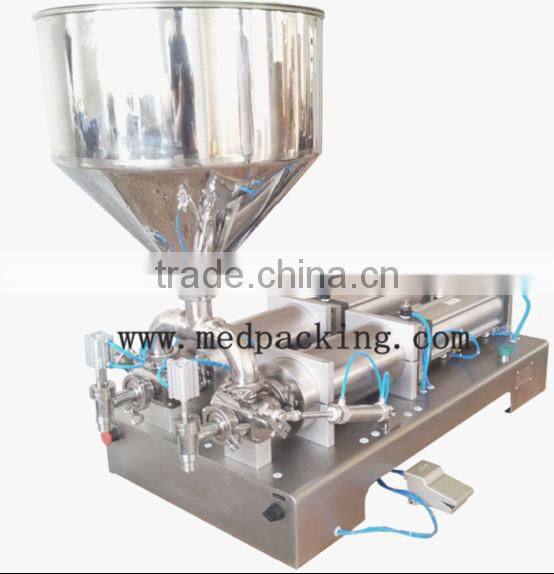

50-500ml Stainless Steel Piston Double Heads Paste Filling Machine,Honey Stick Sacue Filling Machine50-500ml Stainless Steel Piston Double Heads Paste Filling Machine,Honey Stick Sacue Filling Machine50-500ml Stainless Steel Piston Double Heads Paste Filling Machine,Honey Stick Sacue Filling Machine50-500ml Stainless Steel Piston Double Heads Paste Filling Machine,Honey Stick Sacue Filling Machine
