Semi Automatic Capsule Filling Making Machine For Small Business

Semi Automatic Capsule Filling Making Machine

 one year warranty and lifelong technical services

♦Introduction♦

---------------------------------------------------------------------------------------------

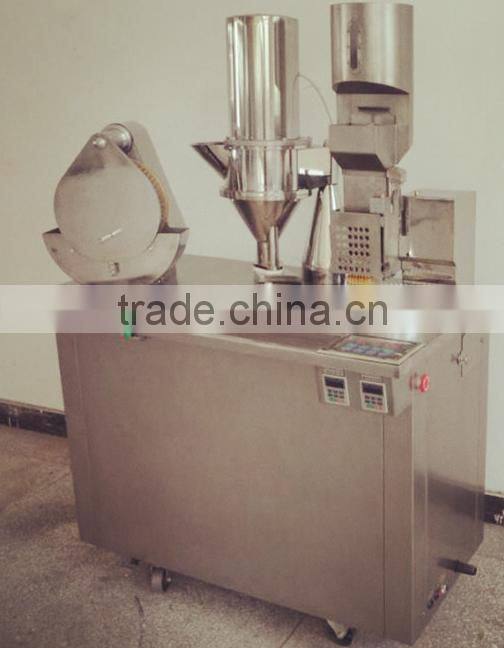

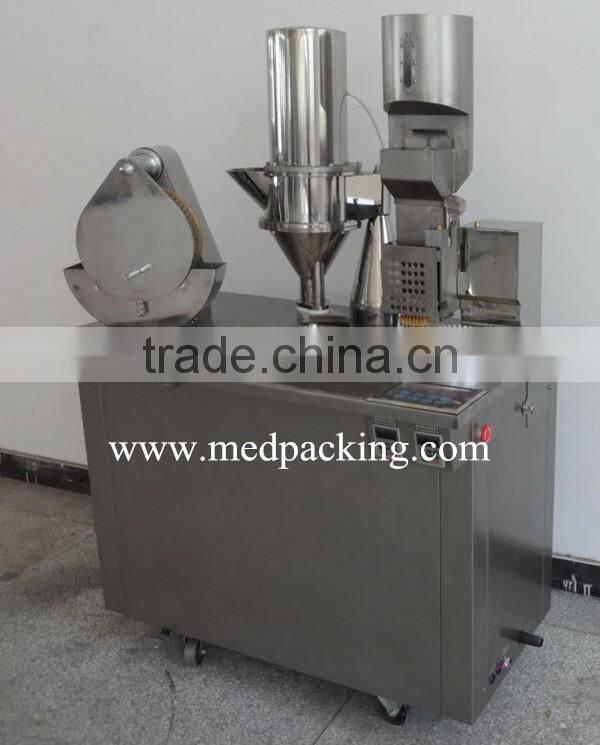

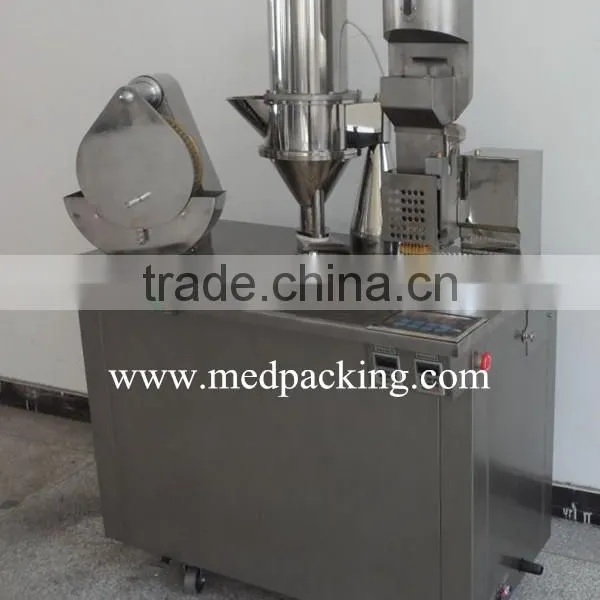

Model XD-C Capsule Filling Machine is the new-type medicine packer, with novel construction, elegant appearance. It is controlled by the stepless frequency conversion and pneumatic device together, and adopts the electronic automatic counter. The machine can finish the actions of position, separation, filling, locking of capsule, etc., and reduce the labor intensity and improve the efficiency of working.

The machine consist of the separating mechanism for the capsule, carrying somersault, medicinal materials filling mechanism, systems of air-actuation control and electric equipment control, defender and other parts as well as the accessories of vacuum pump and air pump.

The domestic and imported machine-made capsules are applicable; the percent of qualified products has reached over 97%

 ♦Main technical parameters♦

----------------------------------------------------------------------------------------------

♦Function introducing of main parts♦

---------------------------------------------------------------------------------------------------

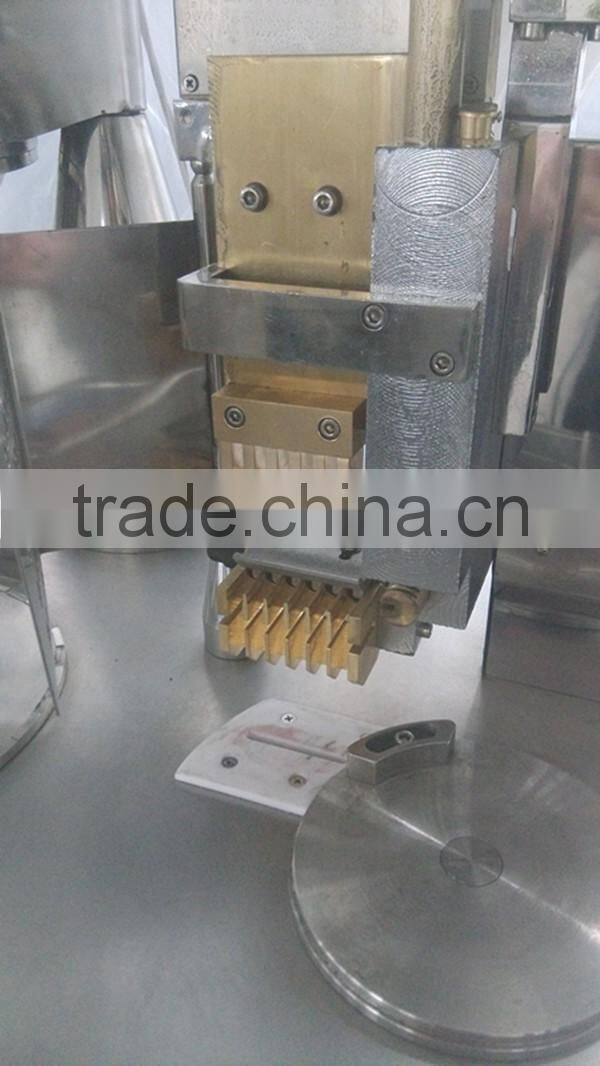

1. Capsule dispensing mechanism

The mechanism pushes the hollow capsules into the capsule dispensing tube from the hopper. There is the reed switch under the tube. When the capsule dispensing tube falls with the driving of the segment gear, the switch discharges a row of capsule (7pcs a row for 1^#, 2^#, or 5pcs a row for 0^#). The switch closes the capsule dispensing tube when the tube rises up.

The capsules which fall in the capsule comb are pushed to the position where the capsules are pressed and changed the direction (the bodies are down and the caps are up). There is the suction air current under the die, so when the capsules are pressed and leave the capsules comb, the capsule bodies will be sucked into the die by the air current, and the caps will stay in the upper die because there is a small step in the die hole. So, the mechanism finishes the work of the discharging capsules, somersault, and separation.

A motor drives the cam, rocking bar, ratchet mechanism to running for the mechanism. The ratchet mechanism advances a tooth (namely: making the die set to advance a row of hole) with a cycle of cam. At same time the cam drives the rocking bar to operate a cycle for the segment gear.

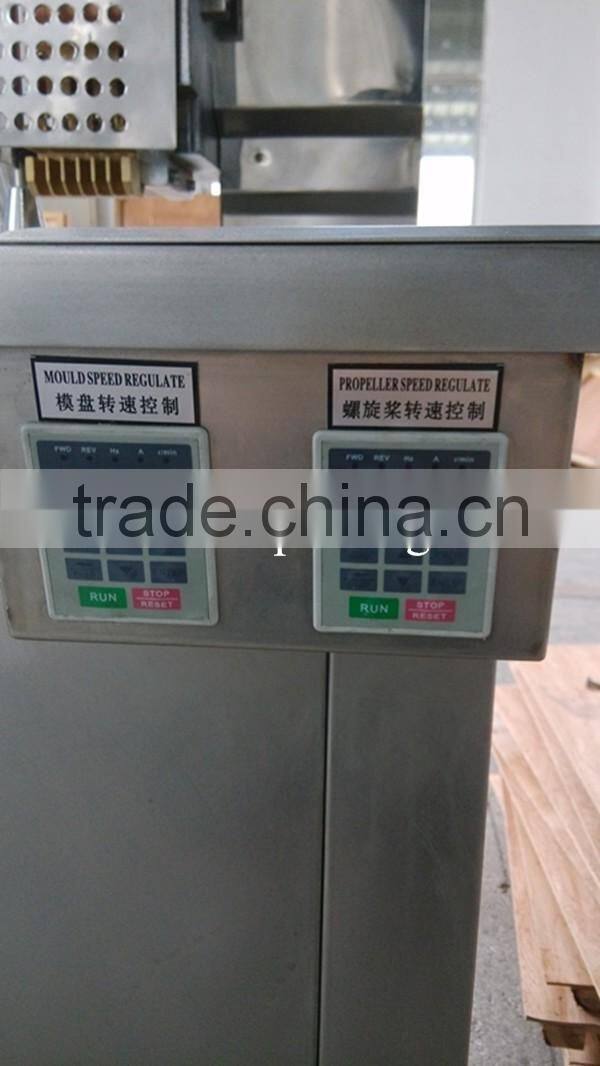

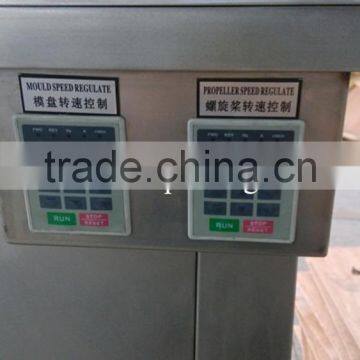

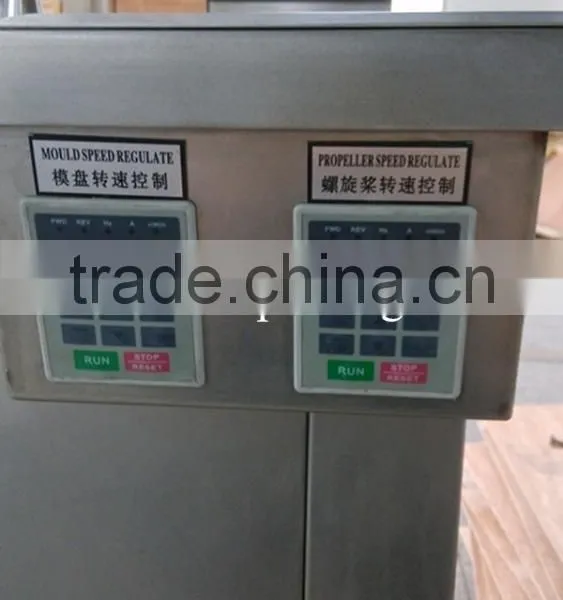

The mechanism is adopted automatic counter which make the machine auto stopped when the die is filled by the capsules. It may be manually stopped when it need stop in a halfway. The speed of the machine is regulated by the button on the console and displays with the instrument.

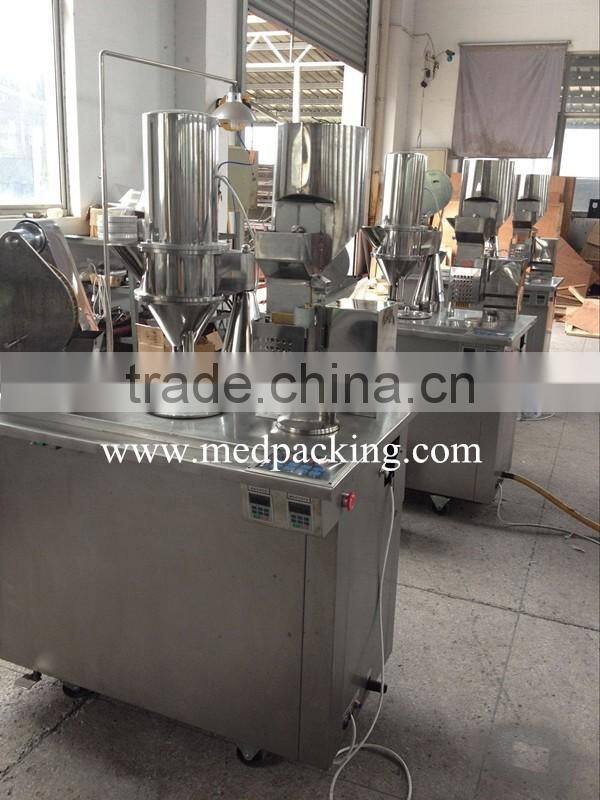

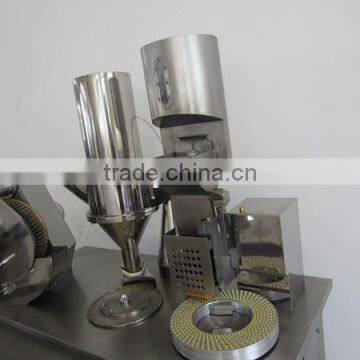

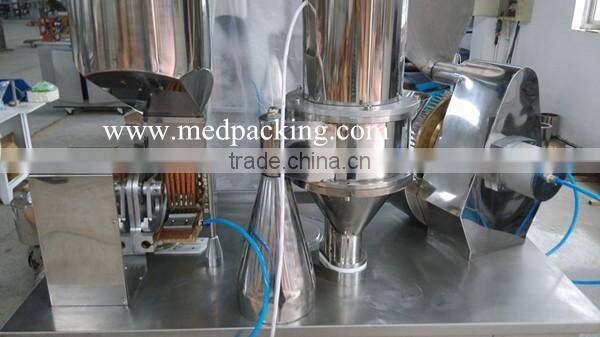

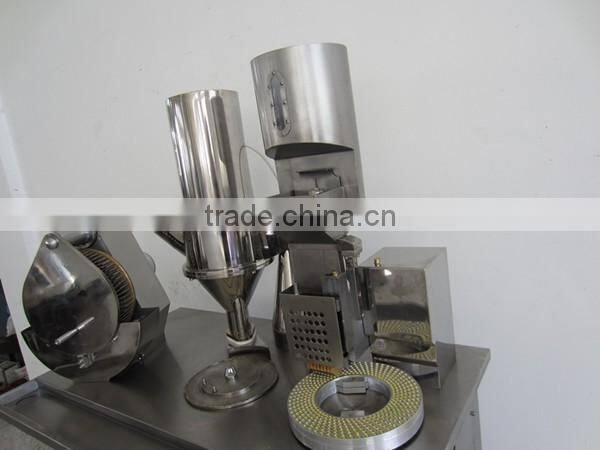

♦Detail Pictures♦

----------------------------------------------------------------------------------------

 Our company is a professional manufacturer of packing machines and packing materials. On the basis of advanced equipment and workmanship, we have excellent production technicians and an efficient distribution team, as well as good service staff members, so that we can undertake your orders very efficiently. When we have the confidence on the high quality of our products, we offer very competitive prices at the same time.

    Our business depends on your business and our purpose is "supporting you". We mainly provide popular products with high quality at home and abroad and create competitive advantages for our customers for their own competition. In addition, you can suggest any design or give any special requirement for our products and we will do our best to settle them for you. We believe our honesty and sincerity will make any cooperation agreeable.

    We look forward to long-term and prosperous cooperation with customers around the world. If you have any inquiry, please don't hesitate to contact us and we are on duty during the whole 24 hours. Your satisfaction is exactly what we pursue.

Why Choose Us?

 machines undergoes an extensive and strict testing and quality control procedure, ensuring each and every item purchased meet global quality standards.

Before Purchase

Need any information of the item before customers' purchase. On-hand professional technical staff are willing to solve any problems in 24 hours.And an instruction attached with machines' package before the shippment.

Factory Price

Most of machines are produced in our own factory ,thus we can offer you the best price and best technical service at the same time .  is committed to providing high quality merchandise with good price.

Payment Method

These payments of T/T, Western Union, Paypal are accepeted. Any problem with payment during the course of payment, some instruction will be offered, only drop your questions by mail, Skype, MSN. Our staff will answer you within 24 hours.

Logistics

Cooperated with reliable internationally trusted logistic service provider such as DHL, EMS and UPS,  ship to exceeding 100 countries around the world. A favorable choice of logistic company from our customer is accepted. The goods is frequently shipped out within 3 workdays, not including special important chinese festivals in china.

Tracking Number

We will inform customers of date of shippment, and tracking number will be confirmed, then write to inform our customers in 2-3 days after delivery goods.

Complainment

Any comments, suggestions are appreciated from our customers. Customers' comments will be along with our growing-up experience.  will be very grateful to that.

Yason General Machinery Manufacturing Co.,Ltd
Address : Xiajin Road Baixiangxia Ouhai District Wenzhou city Zhejiang province China
Tel : (00)86-791-83811092 (0086)13462818722
Skype: yasoncorporation

Should you have any questions,call me or email me,

let’s talk details.
