LK003C mini ticket dispenser for vending machine

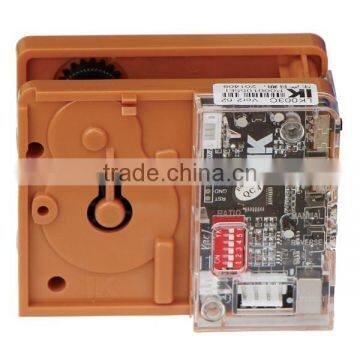

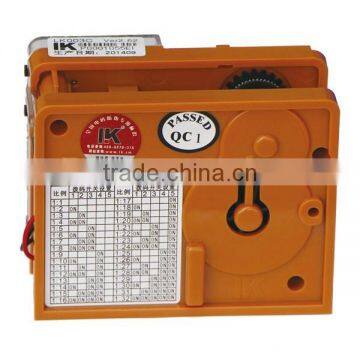

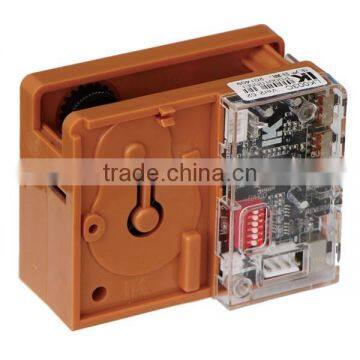

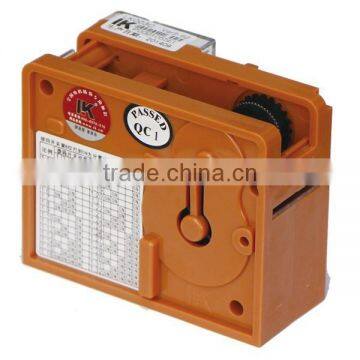

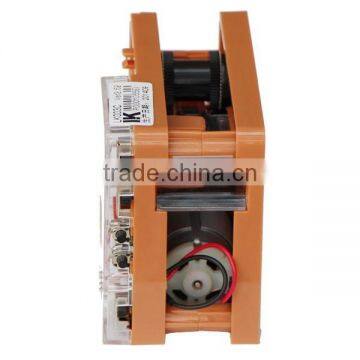

Product appearance
Product parameter
Operating voltage |
DC12V±10% |
Operating current |
<30mA |
Load current |
<1A |
Output mode |
0C. |
Pulse width |
50ms |
Output current |
<1A |
Input low voltage |
<1.5V |
Input high voltage |
2V-24V |
Speed of tickets |
250mm/s(about 5PCS) |
package |
20PCS/SET |
Package Size
LK003C Package size |
330MM*217MM*193MM |
LK003 Package size |
532MM*252MM*275MM |
LK003M Package size |
532MM*252MM*275MM |
Product Weight
Product Model |
LK003C |
LK003 |
LK003M |
Single weight |
0.24KG |
0.29KG |
0.37KG |
Whole GW |
5.13KG |
8.02KG |
9.72KG |
Introduction of use
1.With the motherboart needs to switch the output normally open/normally
closed switch,the general category of computer panels convent light to use
normally closed files(NC),other PC boards nor y open file (NO).
2.Score under Schedule and select the approprate proportion of the ticket.
(Factory set ratio of 1:1)
3 .The lottery ticket into the guide slote,the motor will start automatically
installed tickets.(Hold down the forward button can also be manually installed tickets)
4 .Ticket installed, connect the power lines and signal
lines can be used.
