PE plastic tubes flexible pipe can hlep opening hose
Material:PA,PP,PE
Working temperature: -40~+110 ℃
Protection degree:IP68
Flame retardant grade:UL94-V0
Color:Black,other color can be customzied
Property:Flexible and excellent tenacity,glossy surface,high mechanical stength,wind resistant,anti-friction,resistant to oil,acid and solvents,ur-resistant,insulated,free of halogen,phosphor and cadmium.
| Physical property form | |||||||||
| Character | Material | Working temperature | Flame retardant rating UL94 | Level of protection | ROHS | Color | |||
| HB | V-2 | V-1 | V-0 | ||||||
| 099 | PA | -20℃~+110℃ | √ | IP68 | √ | Black | |||
| 100 | PA | -20℃~+110℃ | √ | IP68 | √ | Black | |||
| 164 | PP | -40℃~+100℃ | √ | IP68 | √ | Black | |||
| 178 | PP | -40℃~+100℃ | √ | IP68 | √ | Black | |||
| 181 | PE | -50℃~+80℃ | √ | IP68 | √ | Black | |||
Below is our stock pipe's specification,other size can be customzied.
| Corrugated pipe specification from | ||||||||
| Model | Specification | ID(mm) | OD(mm) | Bending radius(mm) | Package(m/coil) | |||
| JF10G | AD10.0 | 1/4" | 6.5 | 10 | 15 | 100 | ||
| JF13G | AD13.0 | 5/16" | 10 | 13 | 20 | 100 | ||
| JF15G | AD15.8 | 3/8" | 12 | 15.8 | 30 | 100 | ||
| JF18G | AD18.5 | 18.5mm | 14.3 | 18.5 | 35 | 100 | ||
| JF21G | AD21.2 | 1/2" | 17 | 21.2 | 40 | 100 | ||
| JF25G | AD25.0 | 25mm | 20 | 25 | 45 | 100 | ||
| JF28G | AD28.5 | 3/4" | 23 | 28.5 | 50 | 100 | ||
| JF34G | AD34.5 | 1" | 29 | 34.5 | 60 | 50 | ||
| JF42G | AD42.5 | 1-1/4" | 36 | 42.5 | 70 | 50 | ||
| JF54G | AD54.5 | 2" | 48 | 54.5 | 90 | 25 | ||

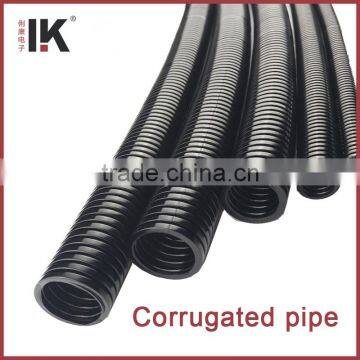

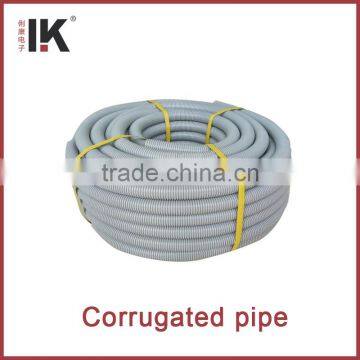

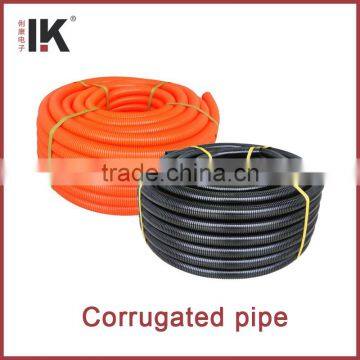

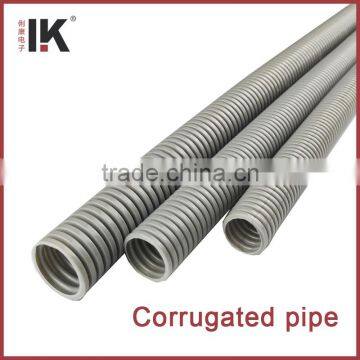

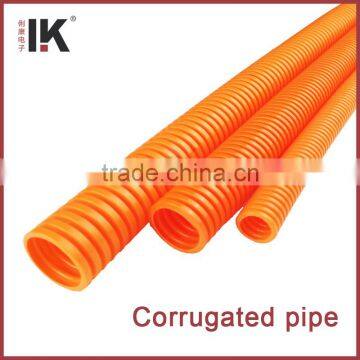

Flexible pipe pictures
Our flexible pipe had passed strict test,with professional certification
Our flexible pipe is widely used in protecting the wires,for heavey machine,automotive,railway car,shopping center,restaurant,and other indoor material and etc.
Our factory pictures
Wire harness pipe connector
Wire harness pipe universal holder
Thanks for your interested in our wire harness pipe,welcome to contact us if you have any question.
