Screw air compressor part flexible hose
- Huangpu
- Credit Card
You May Like
-
Factory price flexible conduit/plastic flexible conduit
-
Black PA PE plastic corrugated tube/pipe/hose for cable
-
Washing machine wire tube
-
German standard opening corrugated flexible pipe for heavy equipment railway etc
-
Plastic flexible conduit of cable protector
-
Nylon flexible conduit/electrical flexible pipe
Product Details
| Place of Origin | Guangdong, China | Brand Name | JF | |
| Model Number | JF10G-JF54G | Material | Other, PE, PA/PP/PE | |
| Specification | 3/4", 1/4",5/16",3/8",18.5mm,1/2",25mm,3/4",1",1-1/4",2" | Length | Roll | |
| Thickness | 2mm | Standard | ROHS |
Product Description
Screw air compressor part flexible hose
Material:PA,PP,PE
Working temperature: -40~+110 ℃
Protection degree:IP68
Flame retardant grade:UL94-V0
Color:Black,other color can be customzied
Property:Flexible and excellent tenacity,glossy surface,high mechanical stength,wind resistant,anti-friction,resistant to oil,acid and solvents,ur-resistant,insulated,free of halogen,phosphor and cadmium.
| Physical property form | |||||||||
| Character | Material | Working temperature | Flame retardant rating UL94 | Level of protection | ROHS | Color | |||
| HB | V-2 | V-1 | V-0 | ||||||
| 099 | PA | -20℃~+110℃ | √ | IP68 | √ | Black | |||
| 100 | PA | -20℃~+110℃ | √ | IP68 | √ | Black | |||
| 164 | PP | -40℃~+100℃ | √ | IP68 | √ | Black | |||
| 178 | PP | -40℃~+100℃ | √ | IP68 | √ | Black | |||
| 181 | PE | -50℃~+80℃ | √ | IP68 | √ | Black | |||
Below is our stock pipe's specification,other size can be customzied.
| flexible hose specification from | ||||||||
| Model | Specification | ID(mm) | OD(mm) | Bending radius(mm) | Package(m/coil) | |||
| JF10G | AD10.0 | 1/4" | 6.5 | 10 | 15 | 100 | ||
| JF13G | AD13.0 | 5/16" | 10 | 13 | 20 | 100 | ||
| JF15G | AD15.8 | 3/8" | 12 | 15.8 | 30 | 100 | ||
| JF18G | AD18.5 | 18.5mm | 14.3 | 18.5 | 35 | 100 | ||
| JF21G | AD21.2 | 1/2" | 17 | 21.2 | 40 | 100 | ||
| JF25G | AD25.0 | 25mm | 20 | 25 | 45 | 100 | ||
| JF28G | AD28.5 | 3/4" | 23 | 28.5 | 50 | 100 | ||
| JF34G | AD34.5 | 1" | 29 | 34.5 | 60 | 50 | ||
| JF42G | AD42.5 | 1-1/4" | 36 | 42.5 | 70 | 50 | ||
| JF54G | AD54.5 | 2" | 48 | 54.5 | 90 | 25 | ||

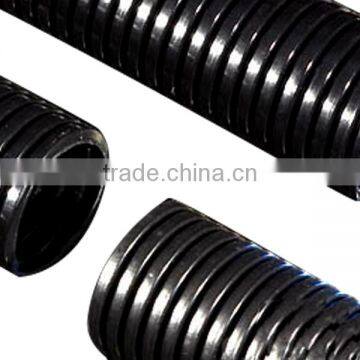

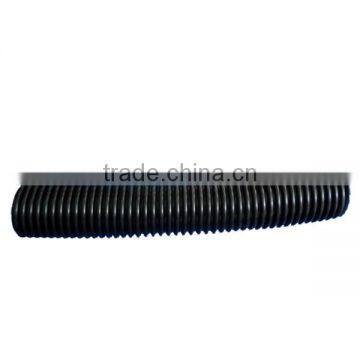

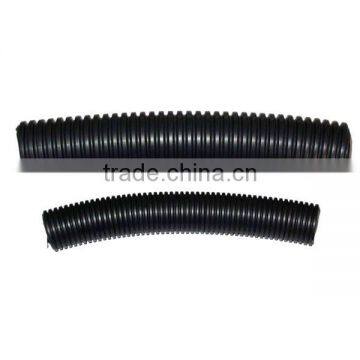

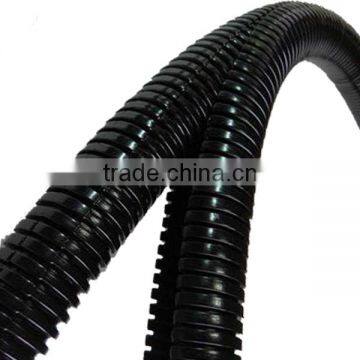

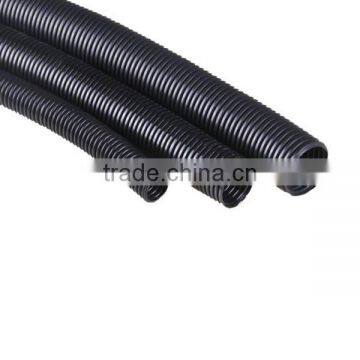

flexible corrugated electrical conduit pipes pictures
Our flexible hose had passed strict test,with professional certification
Our flexible hose is widely used in protecting the wires,for heavey machine,automotive,railway car,shopping center,restaurant,and other indoor material and etc.
Our factory pictures
flexible hose connector
flexible hose universal holder
Thanks for your interested in our flexible hose,welcome to contact us if you have any question.
