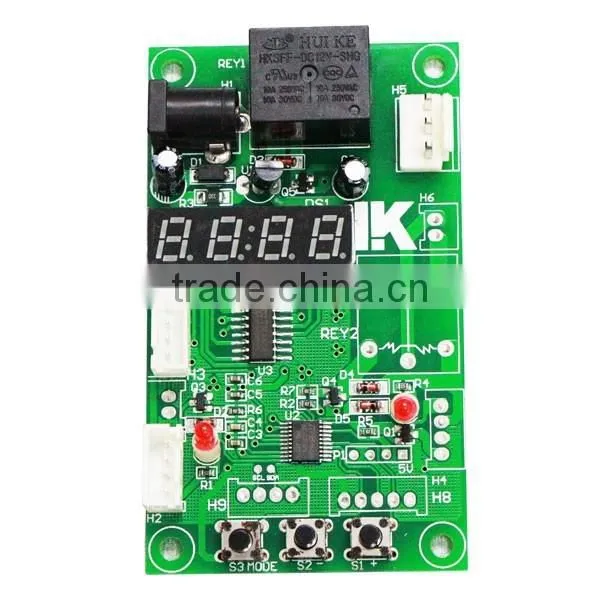

LK501 LED time controller board for elevators, trade assurance

 LED time controller board for elevators,trade assurance

Working voltage : DC 12 V

Product features: receive the slot of output pulse signal, control output relays. The number of the currency can be set and relay suck and time.

Setting:

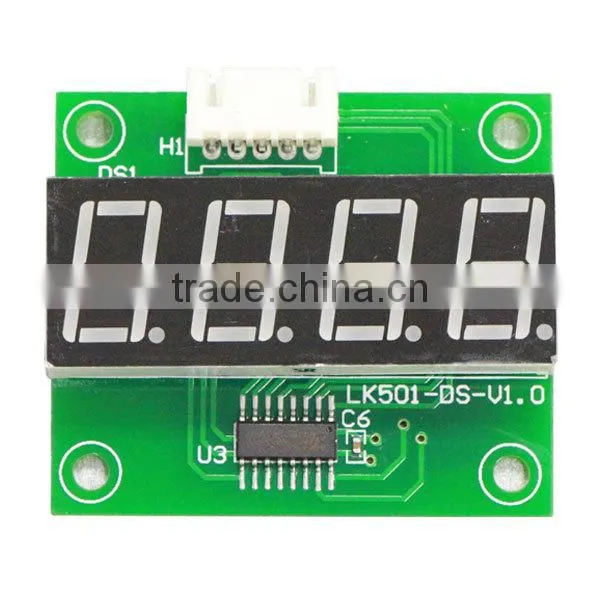

1.Put through power supply, digital tube first show 0, said to accept currency in the state. In the currency to mode, and digital tube slot will show the number of received money, if the sums meets the quantity, will be connected to often open output point, disconnect output often close point, and then based on the set, minutes and seconds began to countdown, if this time setting is equal to or greater than 1 hour, digital pipe display from left to right ,the first two for hours, hind two for minutes. If the countdown less than 1 hours, the top two show for minutes, hind two show for

seconds. In the countdown process, the slot device don't accept currency. The default setting is accept a coin, delay 3 seconds.

2.According to one MODE l (MODE) key, digital tube first (from left to right) show C, said the number of currency in setting, this time by add (+) or minus (-) key, can be set to receive 1 ~ 250 COINS.

3.Acording to the second MODE l (MODE) key, digital tube first show E, says the number of seconds set delay, this time according to add (+) or minus (-) key, can be set to delay time 0 ~ 60 seconds.

4.According to third MODE (MODE) key, digital tube first show F, says in the number of set delay minutes , this time according to add (+) or minus (-) key, can be set to delay time 0 ~ 60 minutes.

5.According to the fourth MODE (MODE) key, digital tube first show H, said in the set delay hours, right now according to add (+) or minus (-) key, can be set to delay time 0 ~ 24 hours.

6.According to fifth MODE (MODE) key, digital pipe display 4 0, representative to the currency back to state and remove the collection of data before setting currency. At this time of the above four Settings are automatically save power on again when power don't need to reset. In the above four set mode, the coin slot don't accept, if in the setting for coin, will the coin slot will refund money from mouth to exit.

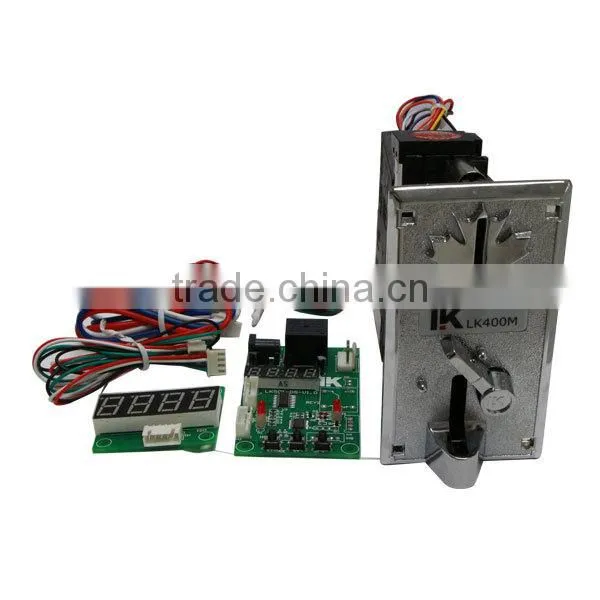

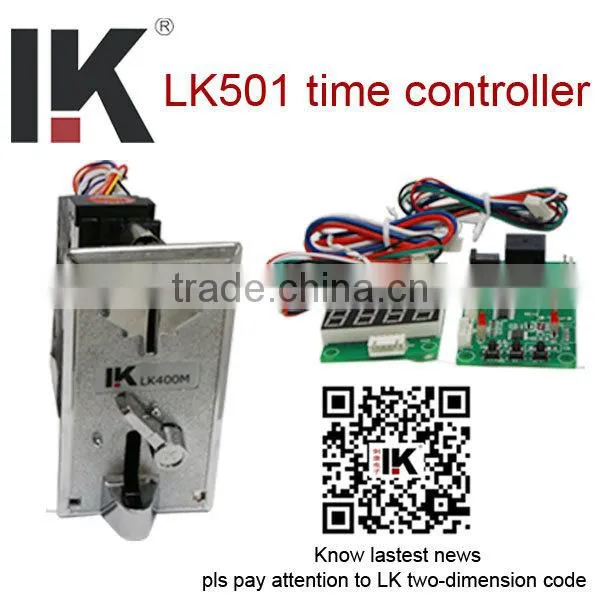

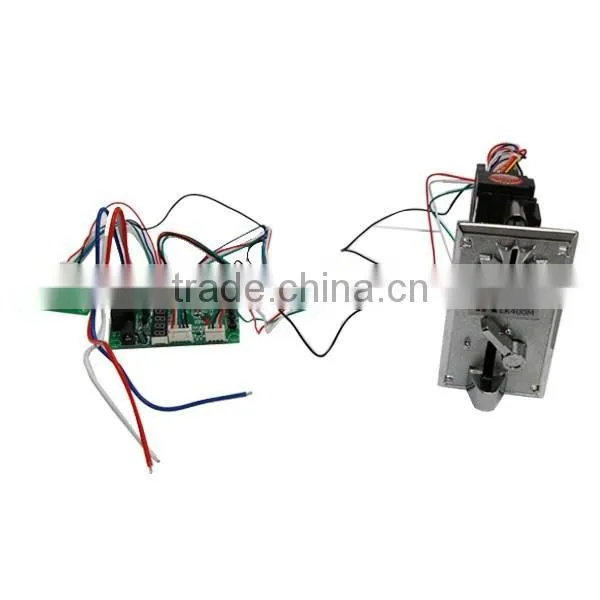

LK501time controller + coin selector
