LK501 Child Car With Engine Timer Control Board

Guangzhou Likang Electronic Technology Co., Ltd. Panyu Branch
LK501 Child Car With Engine Timer Control Board thumbnail-1
LK501 Child Car With Engine Timer Control Board thumbnail-2
LK501 Child Car With Engine Timer Control Board thumbnail-3
LK501 Child Car With Engine Timer Control Board thumbnail-4
LK501 Child Car With Engine Timer Control Board photo-1
LK501 Child Car With Engine Timer Control Board photo-2
LK501 Child Car With Engine Timer Control Board photo-3
LK501 Child Car With Engine Timer Control Board photo-4
Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LK
Model Number:
501
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LK
Model Number 501

LK501 Child car with engine timer control board



LK501 Child car with engine timer control board

Product features



1.receive the slot of output pulse signal, control output relays.



2.The number of the currency can be set and relay suck and time.



LK501 Child car with engine timer control board





Setting

1.Put through power supply, digital tube first show 0, said to accept currency in the state. In the currency to mode, and digital tube slot will show the number of received money, if the sums meets the quantity, will be connected to often open output point, disconnect output often close point, and then based on the set, minutes and seconds began to countdown, if this time setting is equal to or greater than 1 hour, digital pipe display from left to right ,the first two for hours, hind two for minutes. If the countdown less than 1 hours, the top two show for minutes, hind two show for

seconds. In the countdown process, the slot device don't accept currency. The default setting is accept a coin, delay 3 seconds.



2.According to one MODE l (MODE) key, digital tube first (from left to right) show C, said the number of currency in setting, this time by add (+) or minus (-) key, can be set to receive 1 ~ 250 COINS.



3.Acording to the second MODE l (MODE) key, digital tube first show E, says the number of seconds set delay, this time according to add (+) or minus (-) key, can be set to delay time 0 ~ 60 seconds.



4.According to third MODE (MODE) key, digital tube first show F, says in the number of set delay minutes , this time according to add (+) or minus (-) key, can be set to delay time 0 ~ 60 minutes.



5.According to the fourth MODE (MODE) key, digital tube first show H, said in the set delay hours, right now according to add (+) or minus (-) key, can be set to delay time 0 ~ 24 hours.



6.According to fifth MODE (MODE) key, digital pipe display 4 0, representative to the currency back to state and remove the collection of data before setting currency. At this time of the above four Settings are automatically save power on again when power don't need to reset. In the above four set mode, the coin slot don't accept, if in the setting for coin, will the coin slot will refund money from mouth to exit.

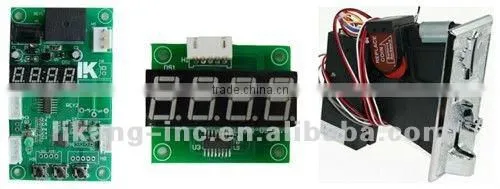

LK501time controller + coin selector



LK501 Child car with engine timer control board

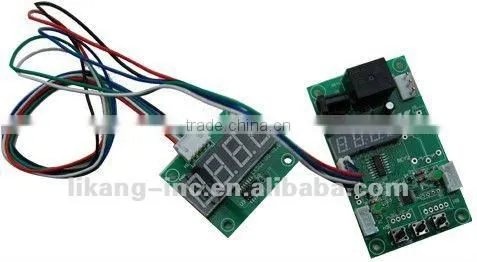

Timer controller board



LK501 Child car with engine timer control boardLK501 Child car with engine timer control board





The connection





LK501 Child car with engine timer control board

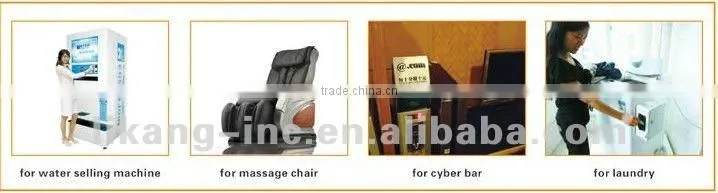

The application area



LK501 Child car with engine timer control board







Workshop of our company





LK501 Child car with engine timer control board



We attended many fairs on this line





LK501 Child car with engine timer control board







Why choose Likang



1: Quality guaranteed:



Special supervision team to control quality. All the products will be inspected carefully before delivery



2: Competitive  price



Compare with other manufacturers in this field , at the same quality , our price is competitive than others .



3: Payment terms



By T/T, 30% of the payment should be paid in advance and the rest should be paid before delivery.



4: Delivery time



1-5 days after payment



5: After service guarantee



Assure you the best services at all times.



6: Warranty



We offer a warranty period for one year.



7: Shipping



We will prepare favorable and professional shipping for you .







More products of  our company





LK501 Child car with engine timer control board





Thank you for your time , If you are interest, Please feel free to contact me .
