Plastic wall mount bracket for corrugated pipes
Material:PA,PP,PE
Working temperature: -20~+110 ℃
Flame retardant grade:UL94-V0
Protection degree:IP66
Color:Black,gray,other color can be customzied
Property:Fast and easy 'push in' installation,internet duct structure fix the conduit at lengthways direction,while axis can move freely,which saving space,secure and fixed.
| Physical property form | |||||||||
| Character | Material | Working temperature | Flame retardant rating UL94 | Level of protection | ROHS | Color | |||
| HB | V-2 | V-1 | V-0 | ||||||
| 090 | PA | -20℃~+110℃ | √ | Gray | |||||
| 074 | PA | -20℃~+110℃ | √ | IP66 | Black | ||||
| 076 | PA | -20℃~+100℃ | √ | IP66 | √ | Black | |||
Below is our corrugated pipe bracket specification,other size can be customzied.
| fix bracket with lid from | |||||||||
| Model | Pipe Specification | B(mm) | H(mm) | T(mm) | M(mm) | A(mm) | Package pcs/bag | ||
| JF10 | 1/4"(10mm) | 25 | 23 | 12.5 | 3.5 | 6 | 100 | ||
| JF13 | 5/16"(13mm) | 29 | 27 | 11 | 4 | 7 | 100 | ||
| JF15 | 3/8"(15.8mm) | 30 | 27 | 12 | 4 | 8 | 100 | ||
| JF18 | 18.5mm | 32 | 29 | 14 | 5 | 9 | 50 | ||
| JF21 | 1/2"(21.2mm) | 35 | 34 | 15 | 5.5 | 9.5 | 50 | ||
| JF25 | 25mm | 38 | 38 | 14 | 6.5 | 10 | 50 | ||
| JF28 | 3/4"(28.5mm) | 42 | 42 | 16 | 6.5 | 11.5 | 50 | ||
| JF34 | 1"(34.5mm) | 51 | 48 | 16 | 6.5 | 11.5 | 25 | ||
| JF42 | 1-1/4"(42.5mm) | 61 | 56 | 19 | 6.5 | 11.5 | 20 | ||
| JF54 | 2"(54.5mm) | 73 | 69 | 19 | 6.5 | 11.5 | 20 | ||
| fix bracket without lid from | |||||||||
| Model | Pipe Specification | B(mm) | H(mm) | T(mm) | M(mm) | A(mm) | Package pcs/bag | ||
| JF10B | 1/4"(10mm) | 25 | 20 | 12.5 | 3.5 | 6 | 100 | ||
| JF13B | 5/16"(13mm) | 29 | 23 | 11 | 4 | 7 | 100 | ||
| JF15B | 3/8"(15.8mm) | 30 | 23 | 12 | 4 | 8 | 100 | ||
| JF18B | 18.5mm | 32 | 26 | 14 | 5 | 9 | 50 | ||
| JF21B | 1/2"(21.2mm) | 35 | 30 | 15 | 5.5 | 9.5 | 50 | ||
| JF25B | 25mm | 38 | 34 | 14 | 6.5 | 10 | 50 | ||
| JF28B | 3/4"(28.5mm) | 42 | 38 | 16 | 6.5 | 11.5 | 50 | ||
| JF34B | 1"(34.5mm) | 51 | 44 | 16 | 6.5 | 11.5 | 25 | ||
| JF42B | 1-1/4"(42.5mm) | 61 | 50 | 19 | 6.5 | 11.5 | 20 | ||
| JF54B | 2"(54.5mm) | 73 | 64 | 19 | 6.5 | 11.5 | 20 | ||

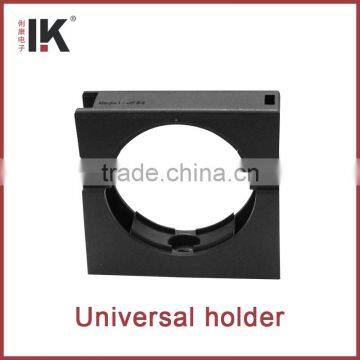

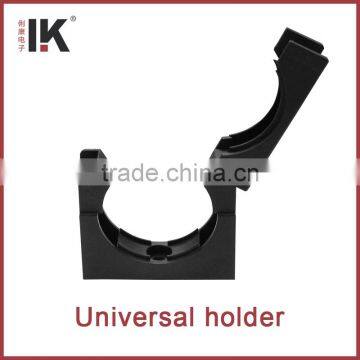

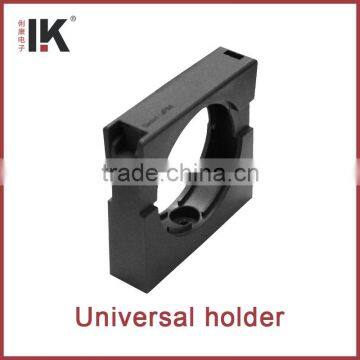

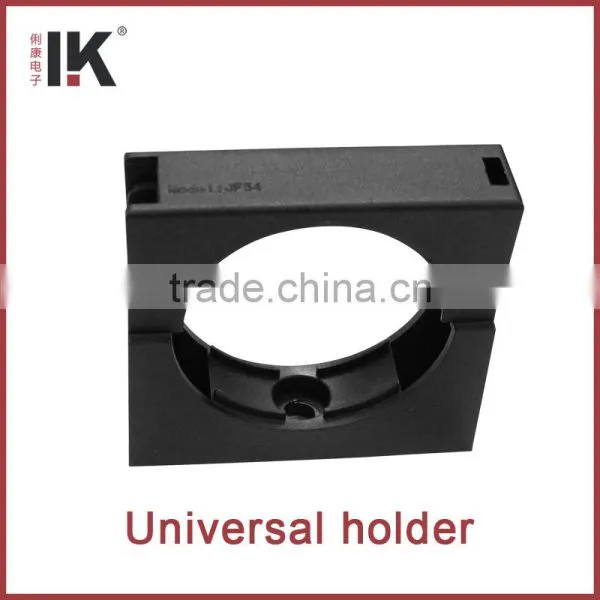

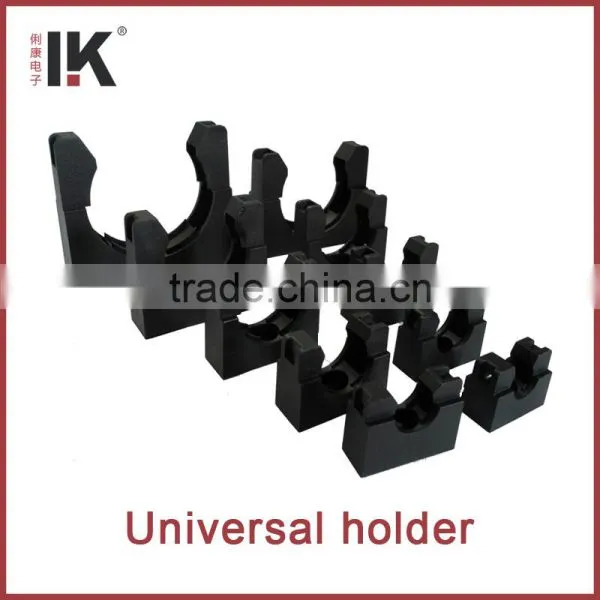

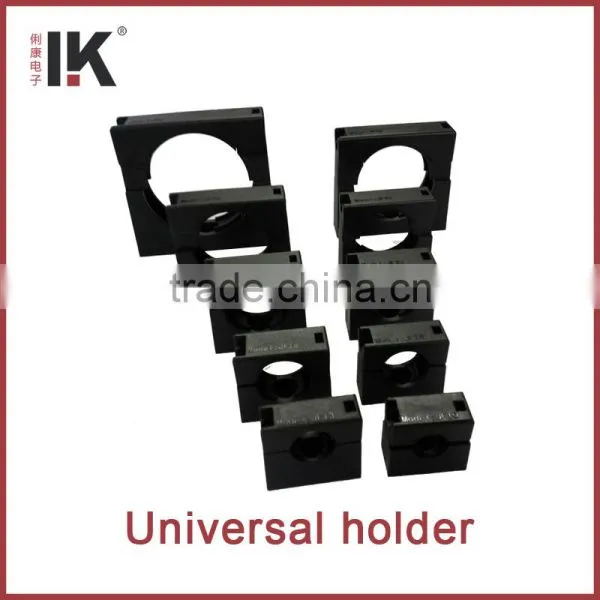

corrugated pipe bracket detailed pictures
Our corrugated pipe bracket had passed strict test,with professional certification
Our corrugated pipe bracket is used in fixed the pipe and make all wire is more beautiful,the pipe with connector and holder is for protect wire of heavey machine,car,shopping center,restaurant,and other indoor material and etc.
Our factory pictures
Plastic wire tubes
Pipe connector
Thanks for your interested in our corrugated pipe bracket,welcome to contact us if you have any question.
