LK120 Flax Seed Cold Oil Press Machine,peanut Oil Cold Press Machine Price

LK120 Flax Seed Cold Oil Press Machine,peanut Oil Cold Press Machine Price thumbnail-1
LK120 Flax Seed Cold Oil Press Machine,peanut Oil Cold Press Machine Price thumbnail-2
LK120 Flax Seed Cold Oil Press Machine,peanut Oil Cold Press Machine Price photo-1
LK120 Flax Seed Cold Oil Press Machine,peanut Oil Cold Press Machine Price photo-2
US$ 3,960 - 4,110 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Sesame Oil
Type:
Other, COLD PRSS
Contact Supplier Request Quote Chat Now
Zhengzhou Lianke Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Sesame Oil
Type Other, COLD PRSS
Automatic Grade Automatic
Production Capacity 98%-100%
Place of Origin Henan, China
Brand Name LIANKE
Model Number LK120
Voltage 380V
Power(W) 22KW
Dimension(L*W*H) 2600*1300*2300mm
Weight 900kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description
LK120 sesame cold oil press machine,soybean cold oil making machine price


LK120 Cold oil press machine video link:

1)https://youtu.be/f-ibDehCVEU

Israel cold pressed Peanuts test machine video 1

2)https://youtu.be/7RZIUqlPihY

Israel cold pressed Peanuts test machine video 2

3)https://youtu.be/-lcJ2MXmwTw

 Spanish cold pressed Rapeseed test machine video

LK120 cold oil press machine is very popular with the market,Most distinguishing feature of the oil press. Adopt screw press,All kinds of oil-bearing crops can be press on this machine.

The oil yield of sesame: 42%-55%
The oil extraction rates of common oil crops
1
Materials
Oil extraction rate(%)
Dry cake thickness(mm)
2
Sesame
42%-55%
0.4-0.6mm
3
Peanut
40%-50%
0.3-0.6mm

4
Sunflower seed
45%-50%
0.3-0.6mm
5
Rapeseed
33%-42%
0.4-1mm
6
Tea seed
30%-36%
0.8-1.5mm
7
Soybean
8%-12%
0.6-0.8mm
8
Cotton seed
10%-15%
0.4-0.6mm
Product show
One:
Hot oil press machine physical photo are shown below:
Hot oil press main technical parameters:
Type
LK50
LK60
LK80
LK100
LK125
Voltage
(V)
220
220
380
380
380
Screw diameter
(mm)
50
60
80
100
125
Screw speed
(r/min)
47
47
35
37
34
Main motor
(kw)
2.2
2.2
5.5
7.5
15
Vacuum pump
(kw)
0.25
0.37
0.55
0.75
0.75
Heat power
(kw)
2.2
2.2
2.2
3
3.75
Throughput
(kg/h)
30-50
40-60
80-120
150-230
300-350
Whole weight
(kg)
126
268
880
1100
1400
Dimensions
(mm)
700*700*940
1040*790*1100
1700*1100*
1600
1900*1200*
1600
2600*1300*
2300
Two:

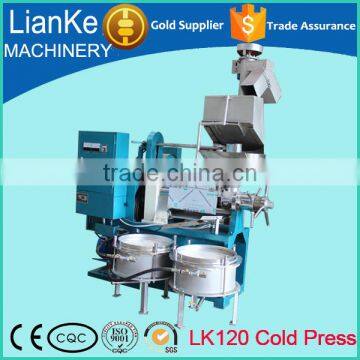

Cold oil press machine physical photo are shown below:
Cold oil press main technical parameters:
Model
Voltage
(v)
Screw
diameter
(mm)
Screw
speed
(r/min)
Main motor
(kw)
Vacuum
pump
(kw)
Throughput
(kg/h)
Whole
Weight
(kg)
dimensions
(mm)
LK120
380
120
58
   22
0.75
220-300
900
2600*1300*2300
LK150
380
150
58
22
2.2
400-450
1600
2600*1500*2300
Hot&Cold Press



Hot oil press machine’s press row has three group heating ring

The heating ring using electric heating.When hot oil press machine work,it can increase temperature of the materials,and the temperature is about 120 degrees.



While cold oil press machine press row has no heating ring

Under normal circumstances,the temperature does not exceed 60 degrees in pressing materials process.Cold press temperature due to pressing screw, pressing row, and materials mutual friction generating heat.

HOT Press Advantage:

1.Since the seeds advance through fried, in the press process,just press it once contained the seeds of all the oil pressed out,cake residual oil rate is very low,it does not require a second press.
2.Hot pressed oil smells aroma,it had a very strong odor.

COLD Press Advantage:

1.Cold press oil make sure all kinds of nutrition in the materials are not been damaged,Cold press oil is also helpful for people’s healthy.
2.When cooking,cold press oil will generate less cooking fumes than hot press,which can solve the troubles of some housewives.

Main advantages

1.Screw thread
(1)Pressing screw structure for the three press,this structure can ensure that the material is sufficiently squeezed.
(2)The screw thread is made of Cr12 die steel.Cr12 die steel has a high resistance to abrasion,which can prolong the service life of the machine.

2.Pressing rows
(1) There is groove in both side of each screw row.It can make sure that the material can rotate in the press cage.And it also can make the material pressed fully.With grooves on the screw row,5% oil yield can be improved.
(2) The space between screw rows is very small,which can make sure that the materials can be pressed competely.This can improve oil yield.

3. Vacuum filter
Oil can be used to cooking directly after using vacuum filter filtering,because the oil reached the national secondary standard of cooking oil.

4. Oil cake export

Company&Warrenty
Before the product leaves the factory, we will test every product carefully to ensure the machine work well.
Packing & Delivery

Below is our cold oil press machine package and delivery picture.

Wooden box package(Protect the goods from damage during shipping).

Contact information


Name:Cindy Zhang

QQ:1131657641
Skype:live:cindy_4906
Fix Tel:0086-0371-85617977
Trade manager:cn1511898896
Phone/Whatsapp/Wechat/Viber:+8613043017926

If you are interested in our product,please contact me at any time.
