Electric Tricycle Cargo Bike/heavy Loading Tricycle Cargo Bike/cargo Bike Used in Mining

Zhengzhou Lianke Machinery Manufacture Co., Ltd.
Electric Tricycle Cargo Bike/heavy Loading Tricycle Cargo Bike/cargo Bike Used in Mining thumbnail-1
Electric Tricycle Cargo Bike/heavy Loading Tricycle Cargo Bike/cargo Bike Used in Mining thumbnail-2

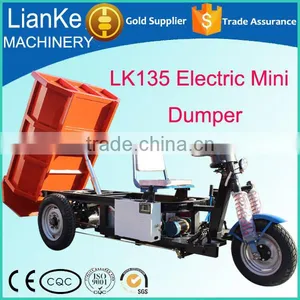

Electric Tricycle Cargo Bike/heavy Loading Tricycle Cargo Bike/cargo Bike Used in Mining thumbnail-3
Electric Tricycle Cargo Bike/heavy Loading Tricycle Cargo Bike/cargo Bike Used in Mining photo-1

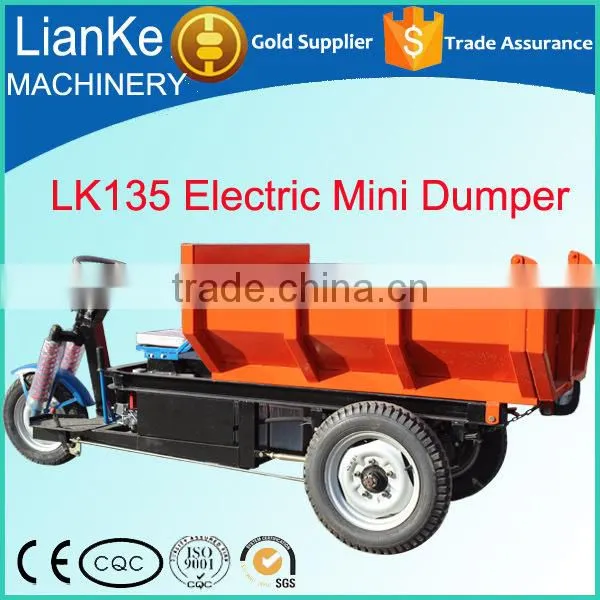

Electric Tricycle Cargo Bike/heavy Loading Tricycle Cargo Bike/cargo Bike Used in Mining photo-2

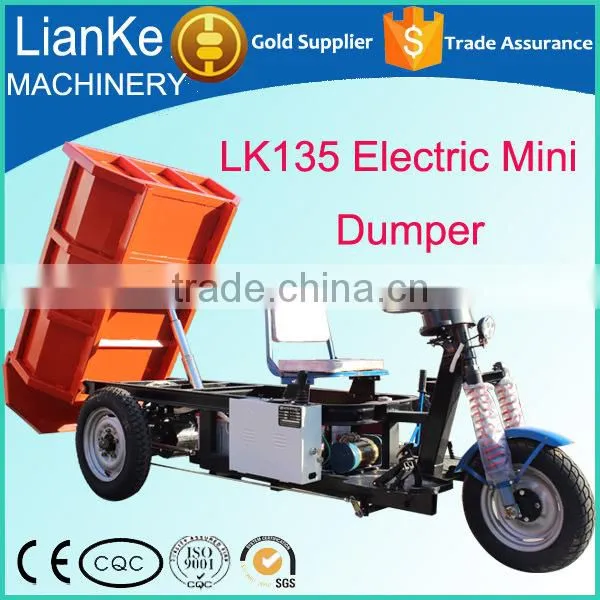

Electric Tricycle Cargo Bike/heavy Loading Tricycle Cargo Bike/cargo Bike Used in Mining photo-3
US$ 230 - 1,560 MOQ: 1 Set
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Electric
Power:
> 800W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use For Cargo
Driving Type Electric
Voltage 48V
Body Type Open
Certification CE
Brand Name Lianke
Place of Origin Henan, China
Model Number LK135
Size 2600*900*1200
Product Description
Electric tricycle cargo bike/heavy loading tricycle cargo bike/cargo bike used in mining

LK135 Electric mini dumper video link-----------https://youtu.be/2UiCVflwgjU

Zhengzhou Lianke Machinery Manufacture CO.,LTD produces electric mini dumper.LK135 load 1 ton electric mini dumper is one of our main products.It adopts electric as power source in mining, sanitation and cleaning.
Electric mini dumper advantages:
1)Pure electric products, does not produce any pollution.
2)Heavy loading capacity.
3)Good quality, strong and sturdy.
Electric mini dumper usage range:
mine, concentrator, quarries, refractory factory, flour mill, brick factory, furnace charge factory, forest, farm and so on.
Different loading electric mini dumper main technical parameters
Item
LK135
LK270

Weight
Loading capacity(Ton)
1
2
Net Weight(kg)
500
1000


Battery
Voltage(V)
12V*4
12V*6
Battery capacity(Ah)
150-80Ah
180-120AH
Charging Time
First is 12h, normal 8h
Working Time
10-12 h


Motor
Lifting Motor Power(W)
1000
1000
Driving Motor Power(W)
1000
2000
Rotate Speed(r/min)
3500
3500



Sizes
Overall Sizes(mm)
2900*1080*1180
3600*1200*1400
Box Sizes(mm)
1450×1000×400
1800*1200*500
Thickness of Box(mm)
3 mm/ 5 mm
3mm/5mm
Work Platform Height(mm)
600
720

Tire
Front Tire
4.00-12
4.50-14
Rear Tire
4.50-14
6.00-16



Others
Max Grade Ability
25 degrees
Maximum Tilt Angle
of Cargo Box
45 degrees
Operating Speed
≤25 Km/h
Material
National standard square steel

We can customized our electric mini dumper changed diesel mini dumper according to customer's requirements.

Product Show

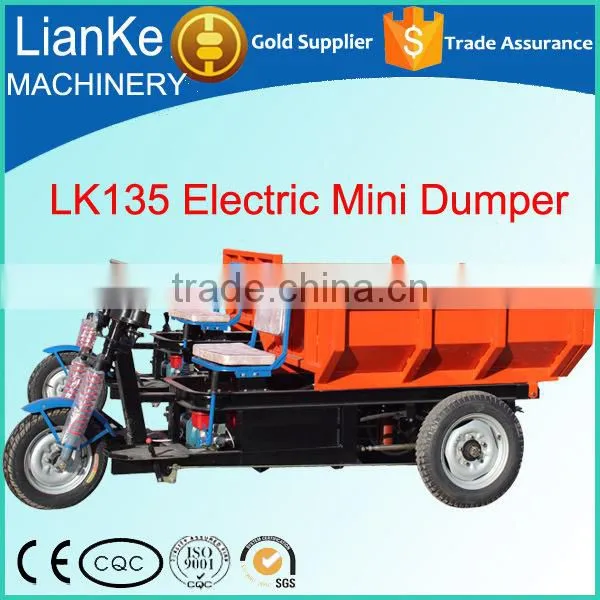

The following is LK135 electric mini dumper photos at different angles

Products Details

The dumper's back cargo box can be customized into three-door open, long or square, right angle or slant.

This kind of cargo box can loading more, suit for have shape and regular goods,this way can get maximize the use of it.

This kind of cargo box suit for no shape and irregular goods, such as ores, farm crops and fertilizer ect.

One:Lifting motor and driving motor

Lifting motor:1000W,48V,25A,3500r/min

Driving motor:1000W,48V,19A,3500r/min

Two:150-80AH*4 capacity battery and Electricity indicating instrument

Battery capacity:150-80AH*4

1)Electricity indicating instrument:Showing red area,indicating that electricity is too low,need to charge.Showing yellow area,indicating that driving normally.Showing green area,indicating that electricity is full,do not need to charge.

2)Operating handle:Controling forward and backward.

Three:Charger and Charge jack

Charging Time,First is 12h, normal 8h. Voltage,110V to 250V range,can be charged normally.

Four:Control cabinet external and internal

1)Keyhole      2)Charging jack

Controller and DC Contactors

Five:Gearbox rear axle and Damping system

Gearbox:High low speed gearbox

Rear axle:including main axle,gearbox,brake drum.

Rear spring steel plate system:In total 11 pieces,can increase load bearing and effective against shocks.

Six:Hydraulic system

Hydraulic Oil Tube:602-1002-53MPa

Hydraulic lift cylinder:3 pieces

Seven:Electric mini dumper wheel

Front wheel type:400-12

Rear wheel type:450-14

Eight:Front shock absorber and Brake pedal,acclerate pedal

Front shock absorber

Brake pedal and acclerate pedal

Nine:Automatic unloading function

Electric mini dumper have automatic unloading function,when you need to unload the goods,by operating handle, the hydraulic cylinder is raised, the goods by the role of gravity, will automatically fall.
Company&Warranty
Customers use LK135 electric mini dumper in the mine
Company Profile
Zhengzhou Lianke Machinery Manufacture Co.,Ltd. is a specialized manufacturer and traders. Our products are exported to many countries all over the world. Such as:Malaysia,United States,Kuwait,Spain,Djibouti,French Polynesia,Israel and so on.
Warranty
1)The electric mini dumper tricycle all parts quality assurance period for 12 months.In normal use circumstances,there is any quality problem in the warranty period ,we use DHL,UPS,or other express delivery to send the accessories freely for customers after determine the damaged parts.
2)We will send clearance document(bill of lading,packing List,insurance list and contract)to customer by DHL,and the service is free.
Packing & Delivery

LCL delivery

One set LK135 electric mini dumper usually using SKD standard wooden box package,to convenient assemble,we only remove the wheels.Other parts have no any demolition, so after you receive dumper,you just need to assemble the wheels,then you can drivie directly.


FCL(20GP or 40HC)delivery

20 GP can load 12 sets LK135 loading 1 ton dumper

40 HC can load 30 sets LK135 loading 1 ton dumper

Using complete delivery,have no any disassembly.

If you purchase 20GP or 40HC electric mini dumper,

Then you can enjoy big discount about FOB price.
