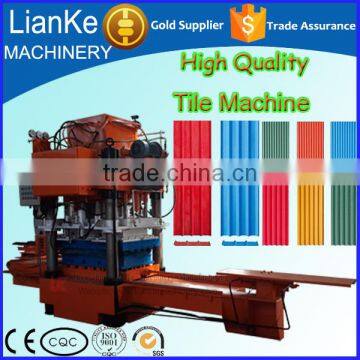

MYW-10 Large-size Full-Automatic
Concrete Tile Making Machine
The full-automatic concrete tile making machine is the most advanced innovative, cost-effective and eco-friendly professional tile forming equipment by far.
1) Main Technical Information
Main technical parameters of the full-automatic concrete tile making machine are as follows:
| # | Main technical parameters | Details |
| 1 | Voltage | 380 V |
| 2 | Molding Cycle | 12-15 seconds / piece |
| 3 | Molding Pressure | 12,500 Kilo Newton |
| 4 | Output Per 8 Hours | 1200-1500 pieces |
| 5 | Normal Roof Tile Size | 940 x 640 x 15 mm |
| 6 | Maximum Roof Tile Size | 1230 x 640 x 20 mm |
| 7 | Diameter of the Oil Cylinder | 650 mm |
| 8 | Power of the Main Machine | 12 KW |
| 9 | Weight of the Main Machine | 12 Ton |
| 10 | Dimension of the Main Machine | 4800 x 1900 x 3000 mm |
Technical parameters change as follows when the MYW-10 tile machine produces terrazzos:
| # | Main technical parameters | Details |
| 2 | Molding Cycle | 15-18 seconds / piece |
| 6 | Maximum Terrazzo Size | 1000 x 1000 x 70 mm |
| 9 | Output for Terrazzos Per 8 Hours | 1000-1100 pieces |
2) Main Components

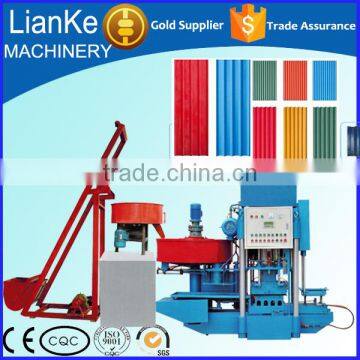

The full-automatic concrete tile making machine includes the following parts:
| # | Product Name | |
| 1 | one bucket elevator | |
| 2 | one LK-500 wheel-rotating mixer | |
| 3 | one quantitative feeding machine | |
| 4 | one MYW-10 main machine | |
| 5 | 1000 pieces of steel tile pallets | |
Mix water, raw material such as cement, coal ash and sand up in proportion and feed the mixture evenly to
the main machine of the CNC concrete tile making machine, and then under the high pressure of a hydraulic
cylinder and a mould, semifinished concrete tiles that become concrete tiles after maintenance and painting
are produced. If different moulds such as terrazzo moulds are applied, terrazzos can be obtained.

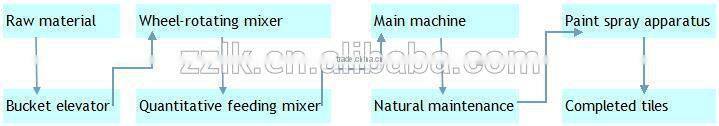

The working flow of the concrete tile making machine is as follows:
Features of the new type full-automatic concrete tile making machine:
1) Mitsubishi PLC and HMI system
2) Multi-purposes via moulds changing
3) Easy to operate, environment-protective
4) Compression molding by numerical control

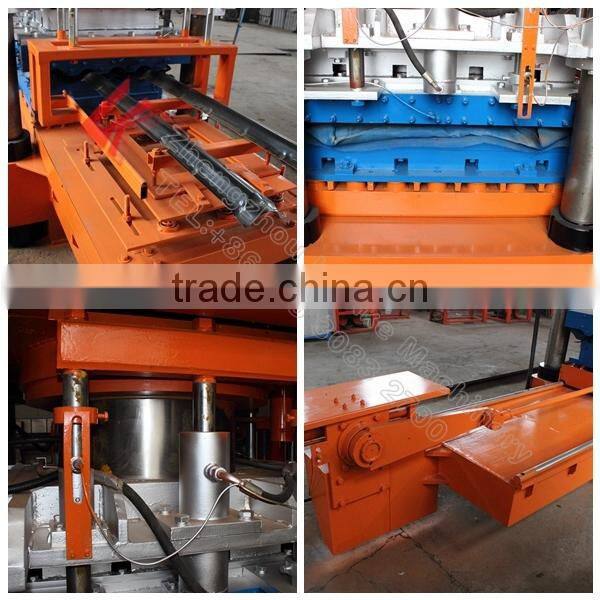

Details usually decide smooth running of the concrete tile making machines:
High Quality is our Promise; Being Trustful is our Responsibility.
1) The quality guarantee is 12 months after installation and commissioning.
2) We will be responsible for malfunctions caused by the automatic tile machine itself or other quality problems.
3) The customer will be responsible for other misoperation or improper handling such as operation mistakes,
man-made problems.
Any way, we will help solve any problems the customer comes across in the operation and provide life-long
maintenance for the machine.
Zhengzhou Lianke Machinery Manufacture Co.,Ltd gains many certificates and honors from a lot of governmetal departments such as Henan Administration for Industry and Commerce, Henan Bureau of Quality and Technical Supervision, and Henan Science and Technology Department for high quality, good credit,
high technology innovation, contract-abiding and trustworthy enterprise, etc.
We can provide more than the following services:
1) According to the actual site, design and help adjust the production flow and equipment layout for free.
2) Supply the foundation drawing of the production line for free.
3) Supply the technical parameters of supporting equipment for free.
4) Upgrade is available if we have technology advancement after the installation.
5) We shall send at least one technician to the site to guide the installation and commissioning, and offer training service.
The workshop layout diagram of the MYW-10 full-automatic concrete tile making machine is as follows:
Note:
A. Drain: As the concrete tile making machine adopts wet material to produce tiles, in actual scene, a drain
along side the main machine is required. This is a sectional drawing of the production line, so the drain is
drawn on one side for your easy understanding.
B. Boiler plant: The boiler plant is optional in this production line and is not included in our quotation for
this production line. The steam curing provided by the boiler plant can greatly shorten the curing period of
the concrete roof tiles or terrazzos to around 24 hours. In this way, the usage efficiency of the tile pallets
can be improved in great extent and the period to get the finished concrete tiles is greatly shorten too. The customer can choose whether to install the boiler plant according to actual circumstance locally. Under
normal circumstance, the boiler plant is not required, and the concrete tiles are fine to leave the factory
after natural curing of 14 to 20 days.
Please inform us of your specific requirements for better services:
1) Q: What kind of tiles you'd like to produce? Material and usage?
A: We can provide machines making concrete roof tiles, cement tiles, terrazzos, and bricks or blocks.
2) Q: What sizes would be normal for you?
A: For concrete roof tiles or terrazzos, maximum size achievable on MYW-8 tile forming machine is 600*600*70mm, maximum size achievable on MYW-10 tile machine is 1230*640*20mm and 1000*1000*70mm.
3) Q: What's the production capacity you would like to achieve?
A: Our MYW-10 tile machine can achieve capacity of 1200 to 1500 pieces per 8 hours for concrete roof tiles, 1000 to 1100 pieces for terrazzo floor or wall tiles.
4) Q: Working voltage you would like to use? 220V or 380V?
A: The voltage of our machines is 380V.
5) Q: What's the MOQ of your machines?
A: The MOQ is 1 set.
6) Q: Where can we buy the machine's parts?
A: Our company can provide spare parts or components for you at any time.

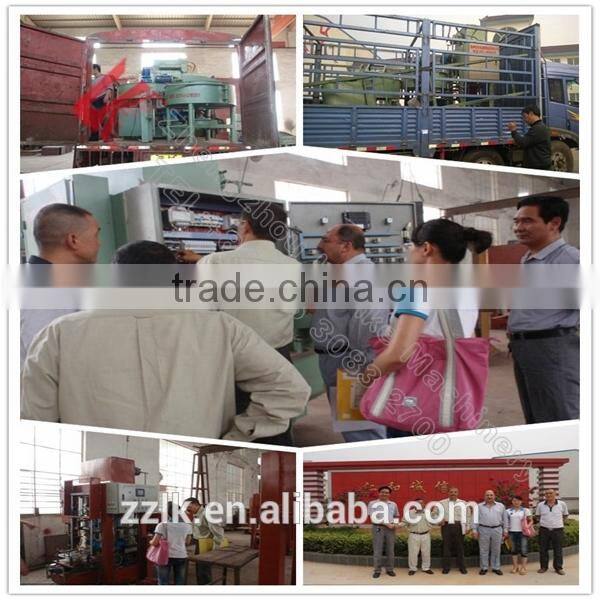

Delivery and customer visits about the concrete tile making machine:
Founded in 1985, Lianke Machinery is a Chinese specialized manufacturing enterprise incorporating the research, development, production and sale of building material producing machinery such as brick making
machine, concrete tile making machine, terrazzo making machine, spacer block making machine, and
paving block making machine, etc.

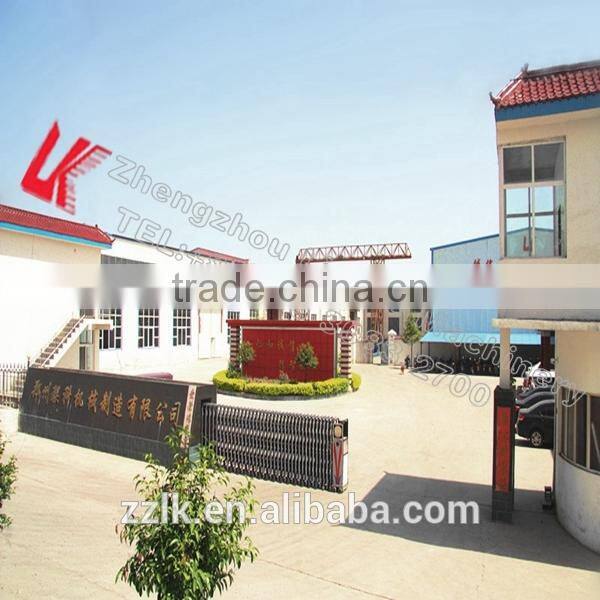

It is located in Xiaobei Industrial Zone of Gongyi County, occupied a land of 27,000 square meters, with total floor space of 18,000 square meters.
Dear customer, if you have any query, please feel free to contact me, I am always here to provide you with good services:
Zhengzhou Lianke Machinery Manufacture Co.,Ltd.
English website: /
Nancy Ng| Sales Rep. | Sales Department
WhatsApp/WeChat ID: +86 13043017819
Alibaba Trademanager ID: cn1511574566
Skype ID: live:1047709554
Tel/Fax: +86 0371 85617977
Mobile: +86 13043017819
