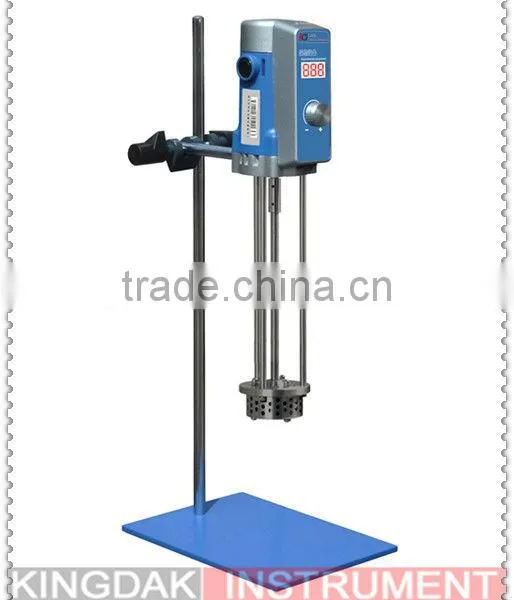

KE500S-P/KE500S-H High Speed Dispersion Homogenizer

Name: KE500S-P/KE500S-H High Speed Dispersion Homogenizer
Brand: KINGDAK
SKU: 141460200
Availability: InStock

Shanghai Kingdak Industries Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Mixer Type:

Homogenizer

Application:

Liquid

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Mixer Type Homogenizer

Application Liquid

Place of Origin Shanghai, China

Brand Name KINGDAK

Model Number KE500S-P/KE500S-H

Voltage AC 220 V 50HZ

Dimension(L*W*H) 360*260*760 mm

Warranty 1 YEAR'S WARRANTY

KE500S-P/KE500S-H High Speed Dispersion Homogenizer

Introduction

KE500S-P/KE500S-H laboratory shear emulsifying machine adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing, crushing particle materials in liquid medium shear emulsification.

Main Features

Various of agitators are designed for different processing capacity and difference experiment requirement And easy operate and easy clean easy maintainance .
Variable Rating Speed Control provide with a high effect.

KE500S-P/KE500S-H Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation .

Technical parameter

Mode	KE500S-P	KE500S-H
Rated Power Supply	AC 220 V 50 Hz	AC 220 V 50 Hz
Input Power	850W	850W
Output Power	500W	500W
Rated Torque	1.78Nm	1.78Nm
Work Type	100 %	100 %
Rating Speed Control	Variable	Variable
Range of Speed	500-12000 rpm	500-12000 rpm
Speed Display	/	Digital x 10rpm
Workhead Material	321L	321L
Workhead diameter	90mm	90mm
Workhead Maximum Torque	172Ncm	172Ncm
maximum line velocity	22m/s	22m/s
Maximum viscosity	8000cp	8000cp
Woking Stator	5/20/25mm2	5/20/25mm2
Capacity (H₂O)	300-60000 ml	300-60000 ml
Shape Size	360×260×760 mm	360×260×760 mm
Permission ambient temperature	≤ 40 °C	≤ 40 °C
Permission Relative humidity	≤ 90 %	≤ 90 %
