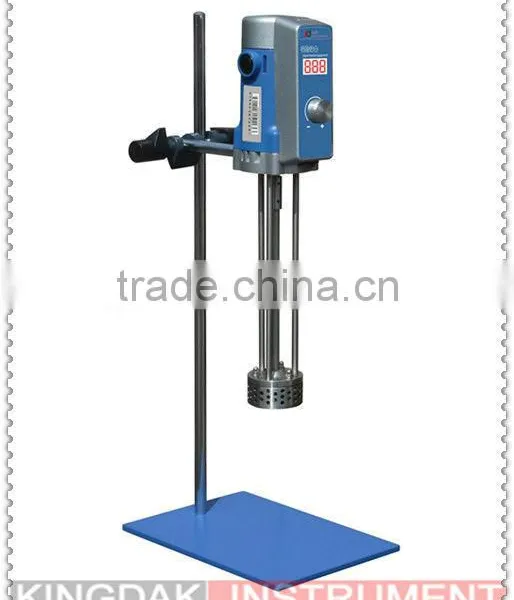

KE300S-P/KE300S-H / KE300L-P/KE300L-H High Speed Dispersion Homogenizer

Name: KE300S-P/KE300S-H / KE300L-P/KE300L-H High Speed Dispersion Homogenizer
Brand: KINGDAK
SKU: 141460184
Availability: InStock

Shanghai Kingdak Industries Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Mixer Type:

Homogenizer

Application:

Liquid

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Mixer Type Homogenizer

Application Liquid

Place of Origin Shanghai, China

Brand Name KINGDAK

Model Number KE300S-P/KE300S-H / KE300L-P/KE300L-H

Voltage AC 220 V 50HZ

Dimension(L*W*H) 360*260*760 mm

Warranty 1 YEAR'S WARRANTY

KE300S-P/KE300S-H / KE300L-P/KE300L-H High Speed Dispersion Homogenizer

Introduction

KE300S-P/KE300S-H / KE300L-P/ KE300L-H laboratory shear emulsifying machine adopts structure compact series-excited type miniature high speed motor drive for the Low to medium and High viscosity liquid mixing, crushing particle materials in liquid medium shear emulsification.

Main Features

Various of agitators are designed for different processing capacity and difference experiment requirement And easy operate and easy clean easy maintainance .
Variable Rating Speed Control provide with a high effect.

KE300S-H/ KE300L-H Speed controller adopts IC constant speed control, can instantly to compensate for speed change of the load changes and power supply voltage fluctuation .

Technical parameter

Mode	KE300L-H	KE300L-P	KE300S-H	KE300S-P
Rated Power Supply	AC 220 V 50 Hz	AC 220 V 50 Hz	AC 220 V 50 Hz	AC 220 V 50 Hz
Input Power	510W	510W	510W	510W
Output Power	300W	300W	300W	300W
Rated Torque	0.96Nm	0.96Nm	0.96Nm	0.96Nm
Work Type	100 %	100 %	100 %	100 %
Rating Speed Control	Variable	Variable	Variable	Variable
Range of Speed	200-11000 rpm	200-11000 rpm	200-13000 rpm	200-13000 rpm
Speed Display	Digital x 10rpm	/	Digital x 10rpm	Digital x 10rpm
Woking Stator	5/20/50mm	93Ncm	5/20/50mm	5/20/50mm2
Workhead Maximum Torque	93Ncm	/	93Ncm	93Ncm
Capacity (H₂O)	40000 ml	40000 ml	40000 ml	40000 ml
Shape Size	360×260×760 mm	360×260×760 mm	360×260×760 mm	360×260×760 mm
Permission ambient temperature	≤ 40 °C	≤ 40 °C	≤ 40 °C	≤ 40 °C
Permission Relative humidity	≤ 90 %	≤ 90 %	≤ 90 %	≤ 90 %
