WZZ-2A Automatic Polarimeter

WZZ-2A Automatic Polarimeter photo-1
US$ 1,399 - 1,399 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KINGDAK
Model Number:
WZZ-2A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name KINGDAK
Model Number WZZ-2A

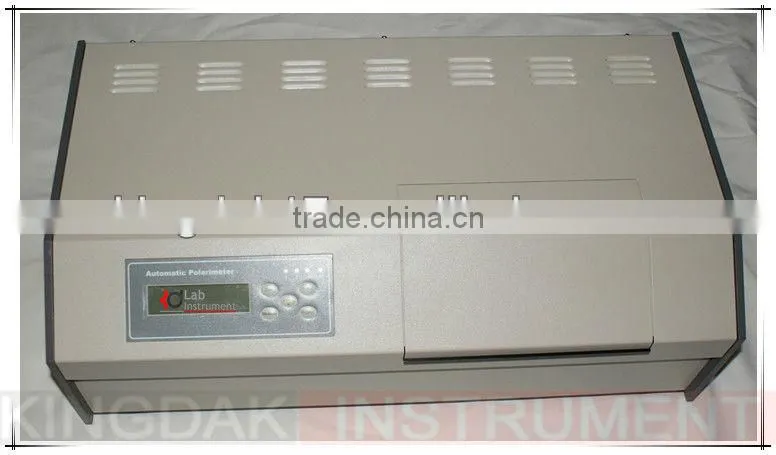

WZZ-2A Automatic Polarimeter



WZZ-2A automatic polarimeter is a easy-use instrument used to measures angle of rotation and specific optical rotation.



Automatic Measurement

The polarimeter built-in auto control system. Switch on the power, the system will search an optical zero point automatically. You need only put the sample tube into measuring field chamber, the screen will displays measured value automatically.



Auto-judge levorotatory or dextrorotatory

The polarimeter is capable of auto-judge substance of levorotatory or dextrorotatory. When the display shows negative measured values, it indicated that sample is levorotatory substance, if it is shows positive measured values, it indicated that sample is dextrorotatory substance.



Reproducibility

For best measured value, you need measure a sample 3 times or more to ensure the accuracy of the measured value. Press + or - key, the polarimeter will repeating measurements.





Parameter:



Model  WZZ-2A
Measuring Range  -45o~+45o
Scale Value   ±0.02o
Light Source  Sodium Lamp
Wavelength  589.44nm

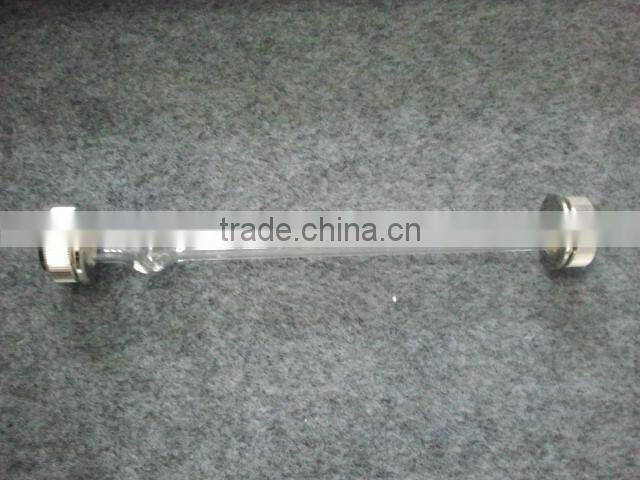

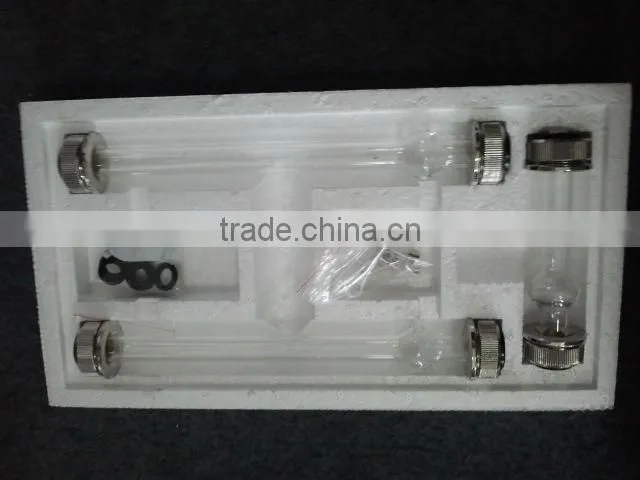

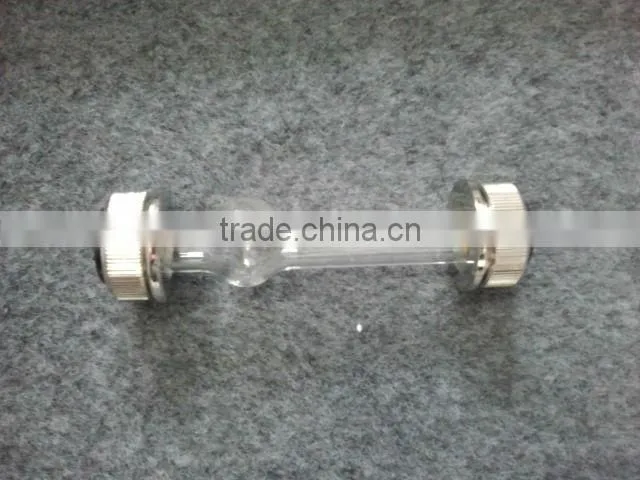

Round Cuvette  100 or 200mm
Power Requirements 220V/50Hz
Dimensions 600(L)×300(W)×200(H)mm
Weight 24kg

WZZ-2A Automatic Polarimeter  WZZ-2A Automatic PolarimeterWZZ-2A Automatic PolarimeterWZZ-2A Automatic PolarimeterWZZ-2A Automatic Polarimeter

WZZ-2A Automatic PolarimeterWZZ-2A Automatic PolarimeterWZZ-2A Automatic Polarimeter
