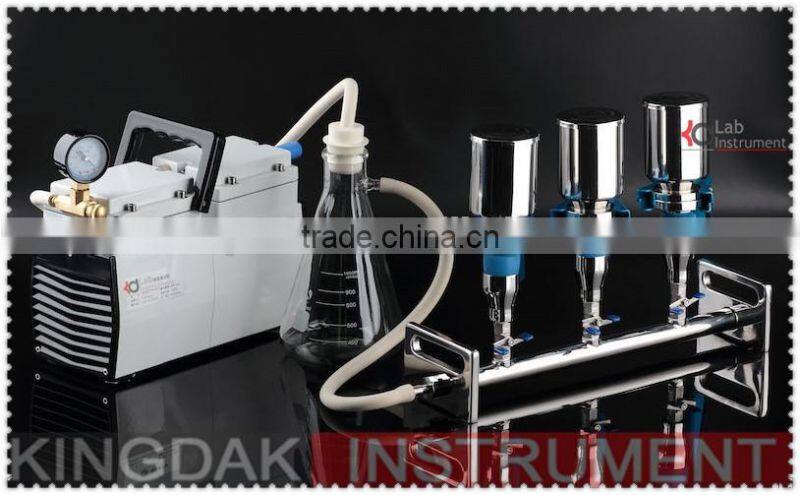

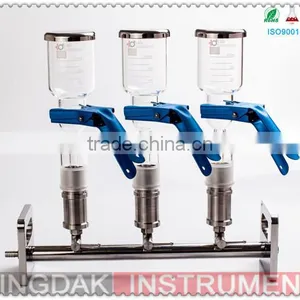

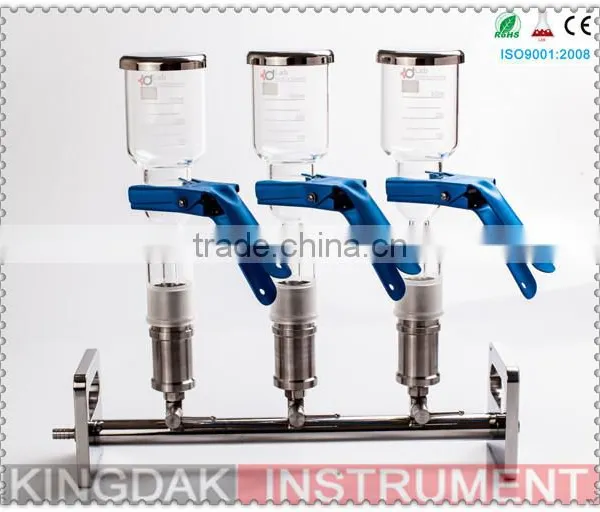

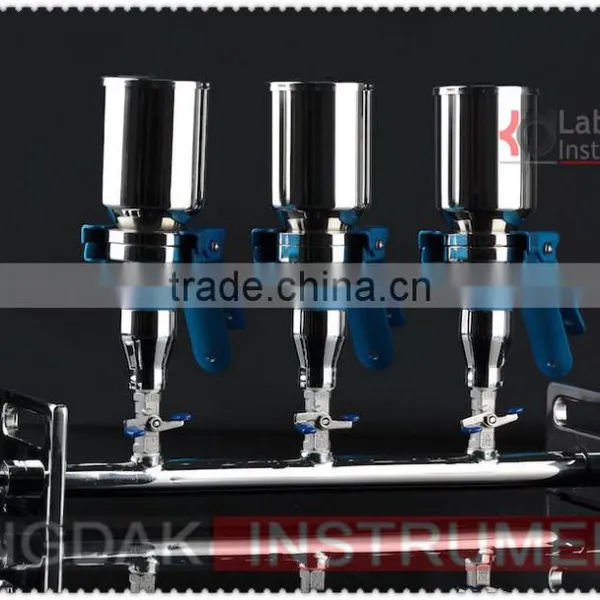

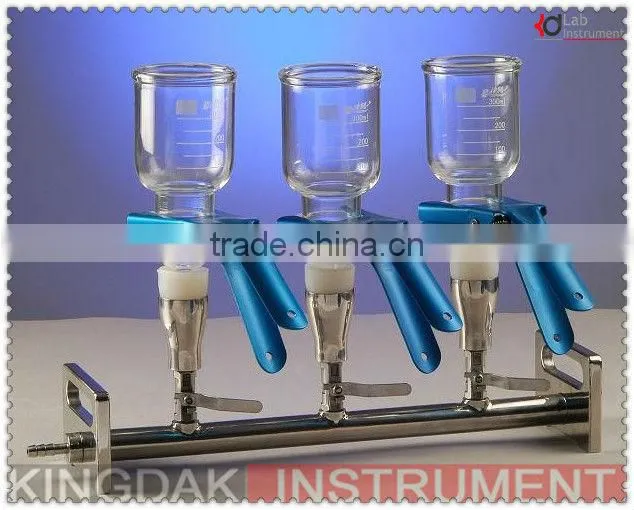

3-branch SUS Manifolds Vacuum Filtration Vacuum Filtration
Brief instruction of Manifolds Vacuum Filtration

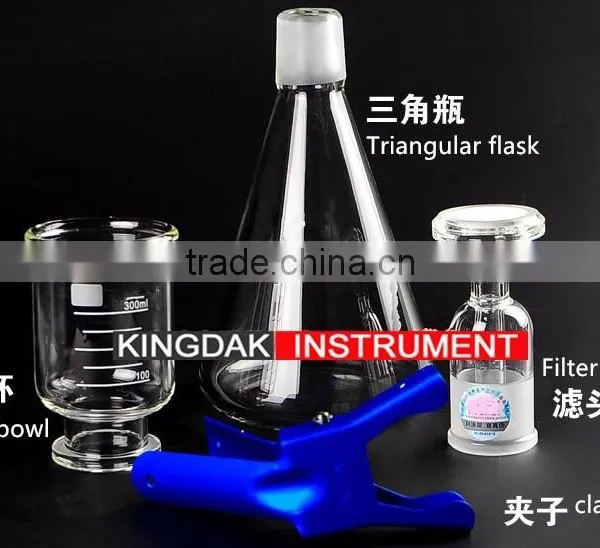

Manifolds Vacuum Filtration is used primarily in microbiological and analytical procedures that involve collecting a particulate (bacteria, precipitate, etc.) from a liquid suspension. Liquid poured into a funnel passed through a filter, which retains the particulate, and filtrate can be collected into a filter flask, directly or via a vacuum manifold. Applying vacuum reduces process time compared to gravity flow. Vacuum Filtration Holders and Manifolds are particular designed and produced for several samples filtrate at the same time. Because each filter holder have individual control valve, only one set vacuum pump can sustain the single or Multi-branch manifold filter operate together. While stainless steel nature of the Vacuum Filtration Holders and Manifolds can filtrate at 180℃ temperature ;and the high-quality extra hard glass is elegant in workmanship, and be able to bear up 200℃ range of temperature. The clamp of aluminum alloy designed rational and closed, it can make the filter bowl together with the middle filter head become an organic, and assure them airproof not to leak. Simultaneity, type 316Lstainless steel resistant to acids alkalis,and be able to bear corrosion, easy to high-temperature sterilization. Therefore, it makes the analyze result much more stabilization and trustiness.

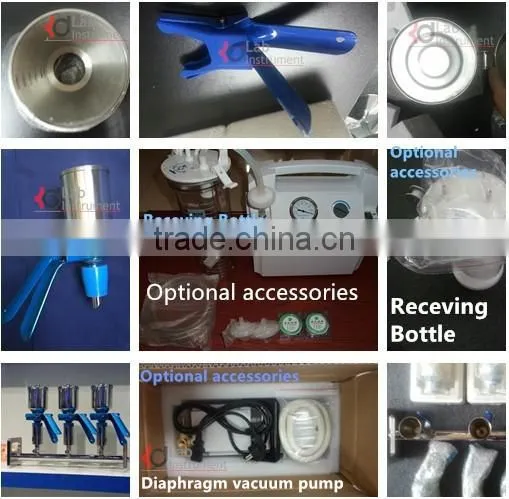

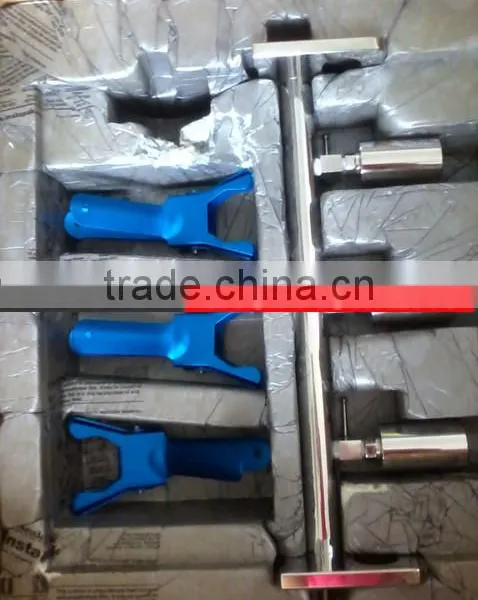

Components:
1. SS316L funnel (300ml)
2. SS316L support screen (40μm)
3. Stainless steel holder ( SS 316)
4. SS316 valve

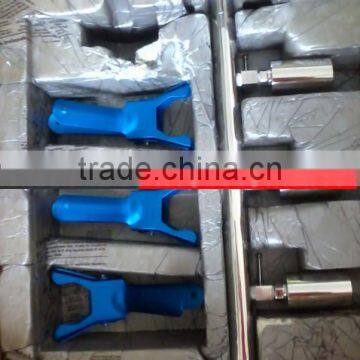

5. Clamp of aluminum alloy

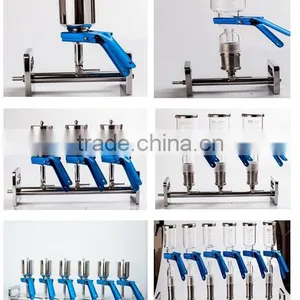

Sort:

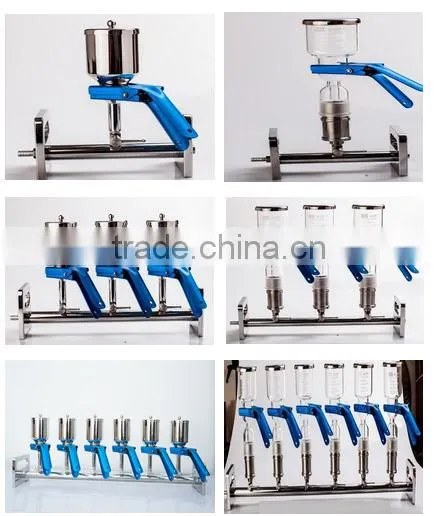

A) Three-branch
B) Six-branch
C) Single-branch
Ordering Information
Catalogue Number |
Specification |
Funnel |
Valve |
Support Screen& Pore size |
Connection |
Holder |
KFA0223 |
3-branch |
300ml SS316L |
SS316 |
SS316L 100μm |
Silicon stopper |
SS316 |
KFA0224 |
6-branch |
300ml |
SS316 |
SS316L 100μm |
Silicon stopper |
SS316 |
