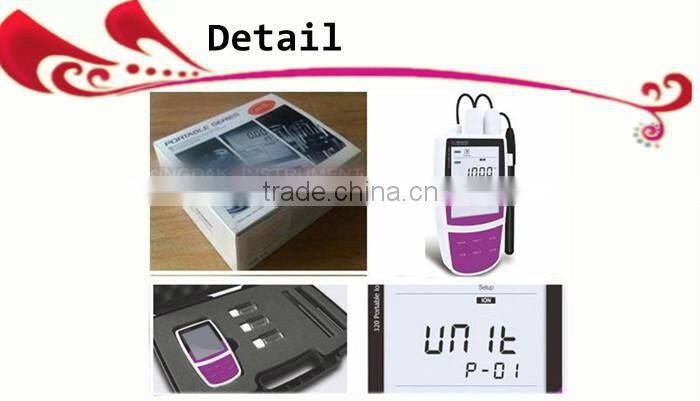

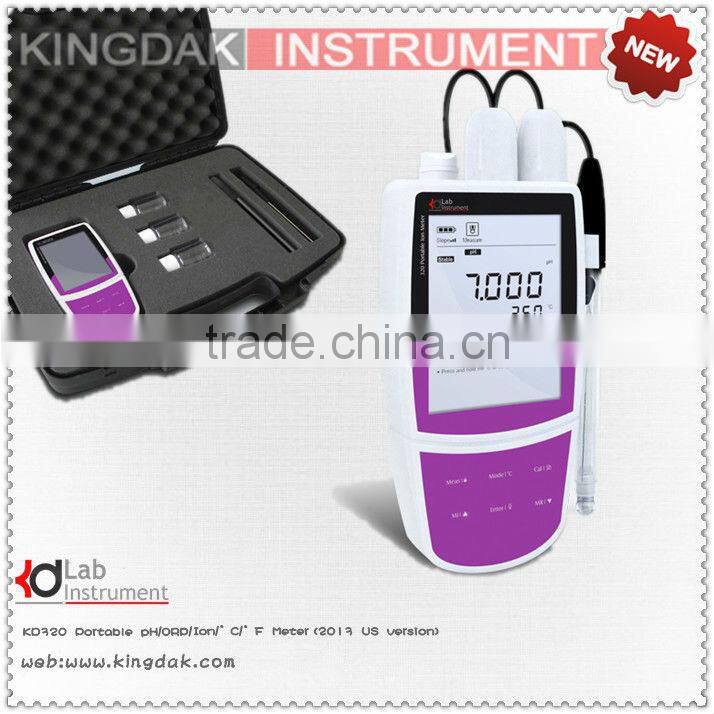

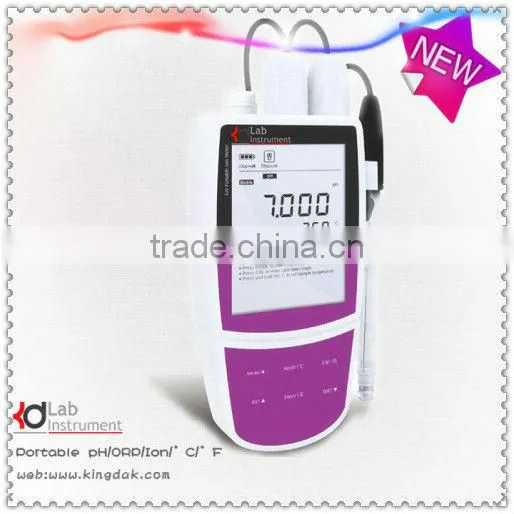

KD320 Portable pH/ORP/Ion/°C/°F Meter
KD320 is a multi-parameter ion meter used for measuring the ion concentration and pH value of liquids. The meter is equippedwith a BNC connecter that can connects various combination Ion Selective Electrodes.
Features:
- During the pH mode, Up to 5 points push-button calibration with auto-buffer recognition.
- Selectable pH buffer standards and temperature units.
- Automatically calculates and displays electrode slope after calibration.
- During ORP mode, Single point offset calibration allows user adjusts displayed value to a known standard.
- Absolute or Relative millivolt (R.mV) measurement provides accurate ORP readings.
- During the ion mode, 2 to 5 points push-button calibration from low to high concentrations.
- Selectable multiple concentration units, including ppm, mg/L and mol/L.
- Direct readout ion concentration simplifies the elaborate measurement process.
- Automatic Temperature Compensation (ATC) ensures highly accurate measurements over the entire range.
- Automatic endpoint function freezes the stable measured values for easy reading and recording data.
- Calibration due reminder prompts you to calibrate the meter regularly.
- Manual temperature calibration provides accurate temperature value.
- Help message as a operational guide to helps you understand how to use meter.
- Setup menu lets user customizes buffer standards, calibration points, stability conditions, resolution, measurement units, date and time to meet measurement requirements.
- Reset function can resumes all settings to factory default values.
- Expanded memory stores and recalls up to 500 readings.
- Built-in real-time clock stamps stored data to meets GLP standards.
- Stored data can be transferred into computer via USB communication interface.
Model |
KD-320 |
pH Range |
-2.000~20.000pH |
pH Accuracy |
±0.002pH |
Resolution |
0.001, 0.01, 0.1pH, Selectable |
Calibration Points |
Up to 5 points |
Calibration Solutions |
USA(pH1.68/4.01/7.00/10.01/12.45), NIST(pH1.68/4.01/6.86/9.18/12.45), DIN (pH1.09/4.65/6.79/9.23/ 12.75) |
Ion Concentration Range |
0.001~19999ppm, mg/L or mol/L (Depending on measuring range of Ion Selective Electrode) |
Ion Concentration Accuracy |
±0.5% Full Scale (Monovalent), ±1% Full Scale (Divalent) |
Calibration Points |
2 to 5 points |
Calibration Solutions |
0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm |
mV Range |
-1999.9~1999.9mV |
mV Accuracy |
±0.2mV |
Resolution |
0.1, 1mV, Selectable |
Temperature Range |
0~105°C, 32~221°F |
Temperature Accuracy |
±0.5°C, ±0.9°F |
Temperature Calibration |
Manual |
Temperature Compensation |
0~100°C, 32~212°F, Automatic or Manual |
Auto-Off |
Manual or Automatic (10, 20 or 30 minutes after last key pressed) |
Hold Function |
Manual or Automatic endpoint |
Stability Conditions |
Low or High, Selectable |
Calibration due reminder |
1 to 30 days or Off |
Reset Function |
Yes |
Memory |
500 data sets with Date/Time stamping |
Output |
USB Communication Interface |
Connector |
BNC |
Power Requirements |
3×1.5V "AA" batteries |
Battery Life |
Approximately 150 hours |
Dimensions |
170(L)×85(W)×30(H)mm |
Weight |
300 grams |
Order code and Accessories:
Order Code |
Accessories |
KD320-UK |
P11 pH Electrode (Made in UK), Standard pH Buffers, Temperature Probe, Batteries, Carrying Case |
KD320-CN |
E65-1 pH Electrode (Made in China), Standard pH Buffers, Temperature Probe, Batteries, Carrying Case |
KD320-ORP |
E65-1 pH Electrode, 501 ORP Electrode, Standard pH Buffers, Temperature Probe, Batteries, Carrying Case |
Payment Terms
1. All the payments required before
2.Time of delivery: within 7 days after receipt of payment
3.Term of payment: company account or west union
4.100% T/T Payment in advance
5.Validity: 30 working days
