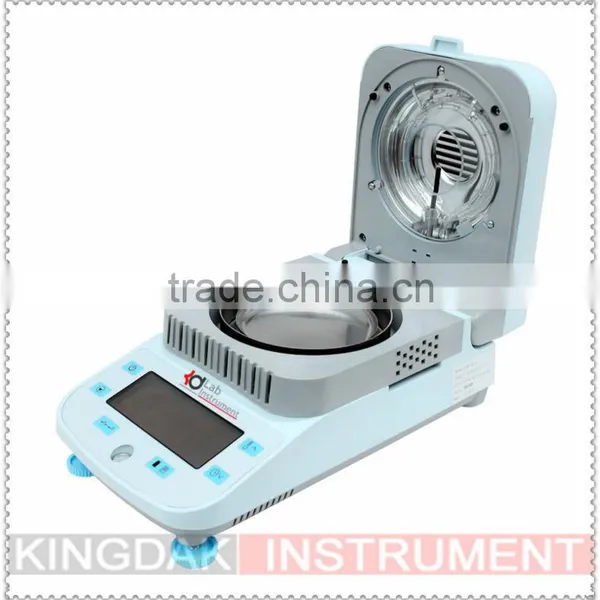

DK Series Electronic Halogen Moisture Meter

Name: DK Series Electronic Halogen Moisture Meter
Brand: KINGDAK
SKU: 141458856
Availability: InStock

Shanghai Kingdak Industries Co., Ltd.

US$ 500 - 700 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

KINGDAK

Model Number:

DK Series

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name KINGDAK

Model Number DK Series

DK Series Electronic Halogen Moisture Meter

Parameter

Enviroment For Using

Parameters is valid:

Temperature: 10°C - 30°C.

(Still working under 5 °C - 40 °C. Under extreme temperature, testing is unstable.)

Relative Humidity: 15 % - 80 %,

Warm-up: 30 mins after power connection

Power: Input AC: 200VAC - 240VAC,3A,50Hz

Voltage Fluctuation: 220 ± 10 %

Power Load: Max. Output is 250 W in using

Protection: Avioding Dust, Damping, Pollution Degree: Class II

Specifications

Model	KD-50K	KD-50K-5	KD-50K-10
Capacity (g)	50 g
Readability (g)	0.001 g	0.005 g	0.01 g
Repeatability (g) ( 3g sample)	0.2%	0.3%	0.5%
Min. Weight of Sample (g)	0.5 g
Propose Sample Weight (g)	0 - 10 g
Heating Time (M.)	1 - 99 minutes (stepping is 1 m.)
Heating	Standard
Working Temperature (°C)	10 °C - 30 °C
Interface	RS232C
Time Control	Setting time by artificially or automatically
Heating Temperature (°C)	50 °C - 160 °C (stepping is 1°C)
Display	Moisture %, Solid %, Weight, Time, Temperature
Pan (mm)	100 mm
Outline (mm)	285×160×150 mm
N.W. / G. W. (kg)	3 kg / 4.2 kg
Heating Way	Halogen
