Main features of continuous belt vegetables drying line:
Main Application: This processing line is mainly used for pretreatment processing and hot air dehydration for vegetable slices or dices products;
Capacity: from 500kg/hr to 3000kg/hr for single processing line;
Main processing flow:
1. Washing --> 2. Peeling --> 3. bubble washing --> 4. picking --> 5. blanching---> 6. chilling --> 7. Dewatering --> 8. drying.
Main equipments:

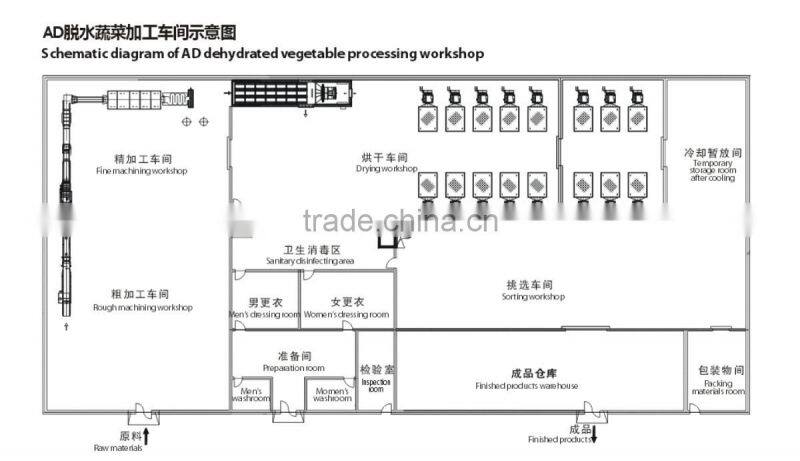

Sample Layout
Main equipment list of vegetables drying line
| No. | Equipment Name | Equipment Description |
| 1 | Peeling machine | for peeling and washing of root vegetables |
| 2 | Cutting machine | for cutting of vegetables to slices or other shapes on demand |
| 3 | Bubble washing machine | to bubble wash and clean the products |
| 4 | picking conveyor | for picking and sorting manually to remove unqualified products |
| 5 | Blancher | hot water or steam blanching for sterilization and color protection |
| 6 | Water chiller | Cool down temperature after blanching |
| 7 | Viberation dewatering | To remove surface water |
| 8 | Centrifugal dewatering | Dewatering before drying |
| 9 | Drying machine | Hot air dehydration |
| 10 | Working table | for quality check after drying |
Seaworthy packing with steel frame for big machienry. Wooden or plywood carton packing for accessories and fittings.
1) Food processing technology consultency;
2) Working flow layout design;
3) Plant layout for processing line equipments;
4) Onsite guide of installation and commissioning;
5) Training for local operators;
6) After sales technical support.
SHANGYU GUANFENG FOOD MACHINERY CO., LTD. is located in the Yangtze River delta, Shangyu city, Zhejiang province with the most convenient transportation and prosperous economic in China, 1 hour by car to Hangzhou or Ningbo and 2 hours from Shanghai.
Our company was established by a group of experienced and dedicated engineers who are excited and specialized in finding the best solutions to improve the food processing equipments therefore bring value to the food processors and make better quality food products. Based on the market demands and our technology background, we focus on the developing and manufacturing equipments for IQF frozen food industry, vegetables and fruits dehydration, Freeze drying (FD), and food processing lines for various vegetables, fruits and seafood industry.
We value "honesty, innovative and quality" because we know that we are not only supplying equipment to our clients but the partners to help our clients to get a better result. Keeping this in our mind, we not only make high quality food processing equipment, but also help the clients to figure out the optimum processing work flows, make amendments according to client's specific needs, training staffs for the user of our equipment and even more, because we believe that our users or clients' success is the foundation of ours.
Are you looking for the equipment for your next project? Why not just send us an email!
