Help CenterWater Pump in India
Related Products

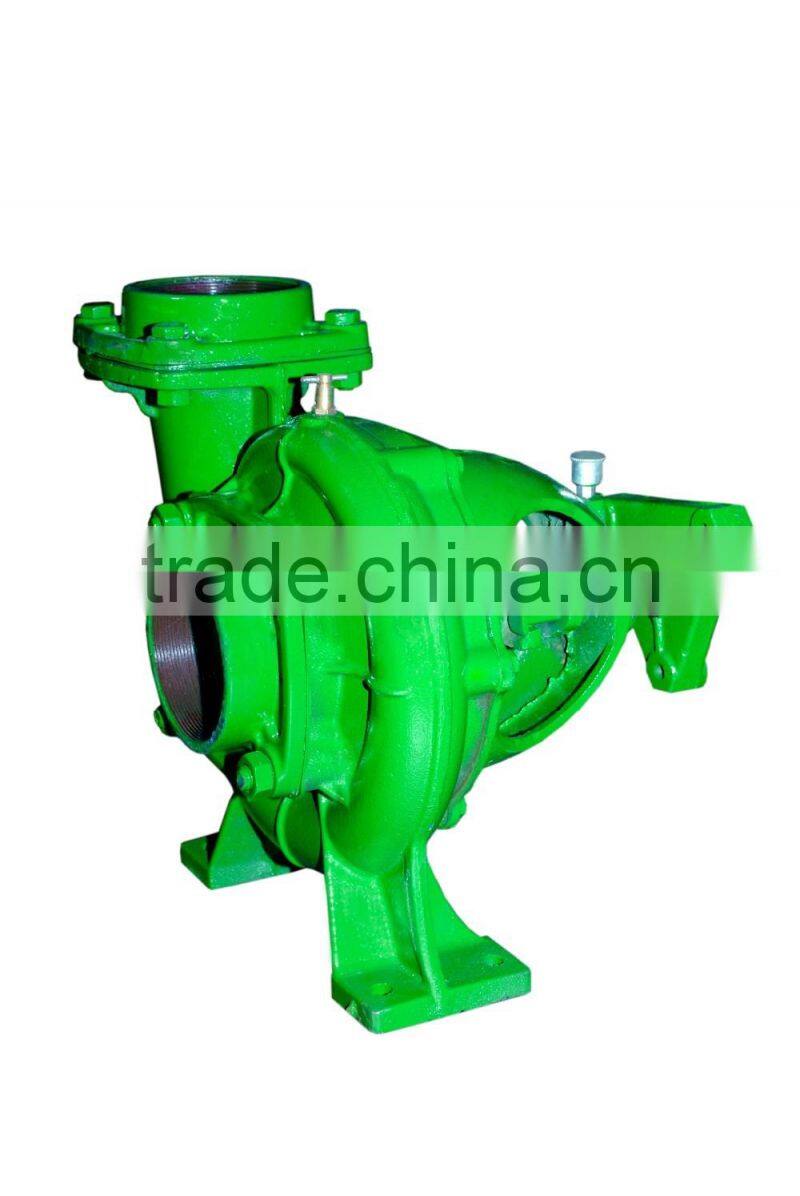

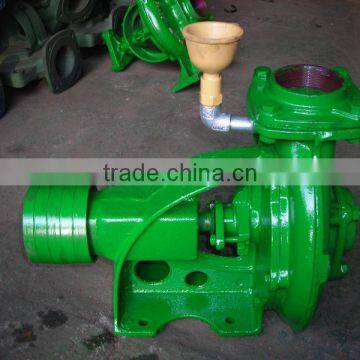

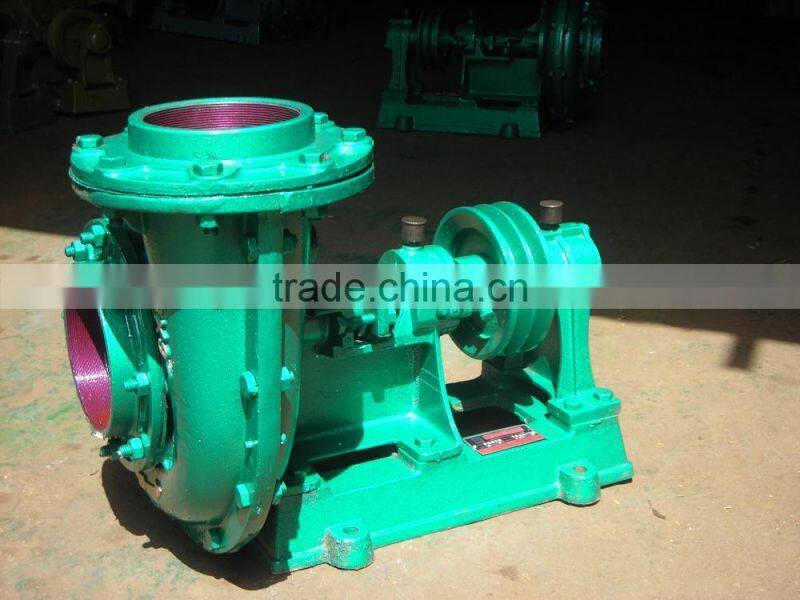

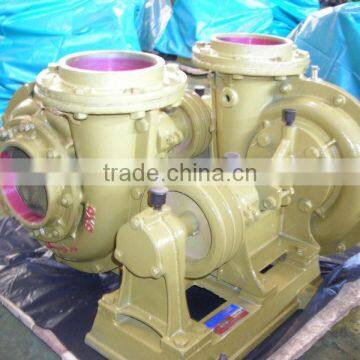

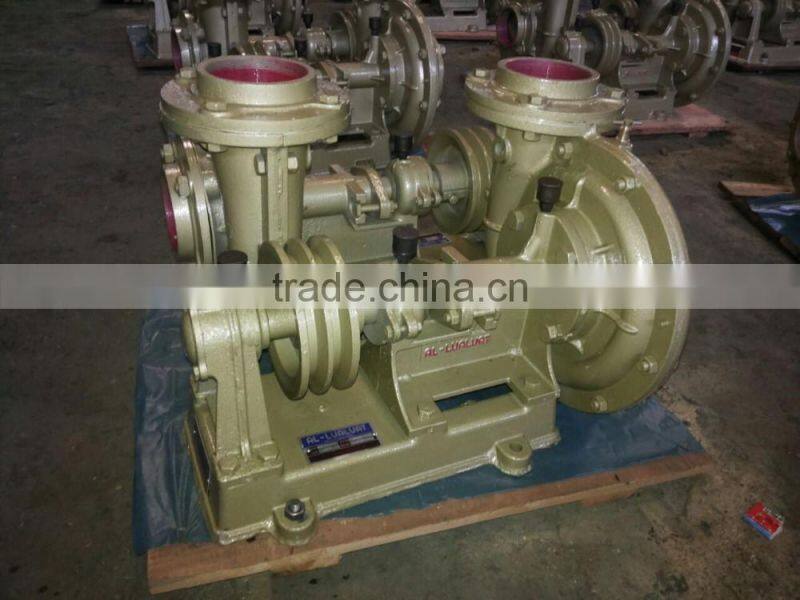

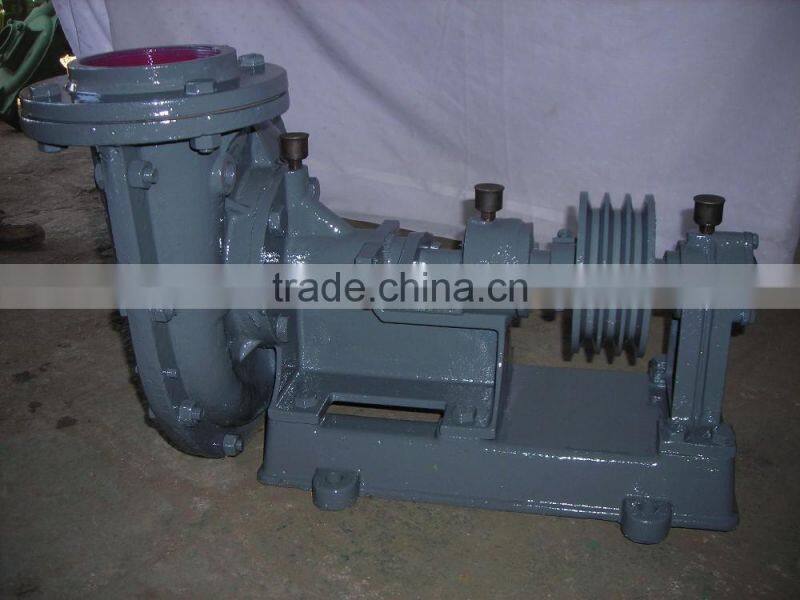

Centrifugal water pump belt driven direct couple side delivery/centre delivery, volute casing/split casing ,gland type/ bearing type from 1x1 to 12x12.
We design and manufacture “Atmak” brand Centrifugal water pumps of various range of variants. The material used in making volute or split casing is of high tensile grained cast iron so as to withstand the high pressure of water. Moreover our supervisor keeps an eye over entire production line for maintain the quality of the product.
Our “Atmak” brand Centrifugal water pump is tested across many countries , it is been trusted by farmers. We make sure our all the pumps are been Hydraulic Pressure tested and all the test been carried out as per IS standards. We uses premium quality bearing in our pump for better performance & durability. All the impeller are dynamically balanced in balancing machine. Some of the technical specification are given in the below table.
| MODEL | SIZE IN mm | SIZE IN inch | SPEED RPM | PRIME MOVER KM/HP | Discharge in LPS | TOTAL HEAD IN METER | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | ||||||
| CAISD-1 | 65 x 50 | 21/2 x 2 | 1450 | 5.9/8 | 17 | 15 | 14 | 19 | 18 | 17.5 | 16 | 13.5 | ||||||||||
| CAISD-1 | 65 x 50 | 21/2 x 21/2 | 1450 | 5.9/8 | 19.5 | 19 | 18 | 17 | 14.5 | |||||||||||||
| CAISD-2 | 80 x 65 | 3 x 21/2 | 1450 | 5.9/8 | 22.5 | 21 | 18.5 | 17 | 10 | 8 | ||||||||||||
| CAISD-2 | 80 x 80 | 3 x 3 | 1450 | 5.9/8 | 23 | 21.5 | 20 | 18 | 11 | |||||||||||||
| CAISD-3 | 100 x 80 | 4 x 3 | 1450 | 7.35/10 | 38 | 36.5 | 34.5 | 33.5 | 32.5 | 28.5 | 21 | 13 | ||||||||||
| CAISD-3 | 100 x 100 | 4 x 4 | 1450 | 7.35/10 | 40 | 38 | 36 | 34.5 | 32.5 | 31 | 23 | 14 | ||||||||||
| CAISD-4 | 125 x 100 | 5 x 41/2 | 1450 | 8.8/12 | 56 | 53 | 49 | 45 | 41 | 37 | 30 | 23 | ||||||||||
| CAISD-4 | 125 x 125 | 5 x 5 | 1450 | 7.35/10 | 50 | 47 | 40 | 37 | 32 | 27 | 18 | |||||||||||
| CAISD-5 | 150 x 125 | 6 x 5 | 1450 | 8.8/12 | 57 | 54 | 50 | 46.5 | 42 | 38 | 31 | 22 | ||||||||||
| CAISD-5 | 150 x 150 | 6 x 6 | 1450 | 10.3/14 | 62 | 58 | 54 | 51 | 47 | 44 | 38 | 31 | 22 | |||||||||
| MODEL | SIZE IN mm | SIZE inch | SPEED RPM | PRIME MOVER KW/HP | Discharge in LPS | TOTAL HEAD IN METER | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | ||||||
| CAIVS-2 | 80 x 80 | 3 x 3 | 1500 | 3.7/5 | 21.5 | 20.5 | 18.5 | 16.5 | 14 | ||||||||
| CAIVS-3 | 100 x 100 | 4 x 4 | 1500 | 4.8/6.5 | 32.5 | 31 | 28.5 | 25.5 | 21 | ||||||||
| CAIVS-4 | 125 x 125 | 5 x 5 | 1500 | 5.9/8 | 48 | 46 | 36 | 30 | 26 | ||||||||
| CAIVS-5 | 150 x 150 | 6 x 6 | 1500 | 5.9/8 | 52 | 46 | 40 | 31 | |||||||||
| CAIVS-5 | 150 x 150 | 6 x 6 | 1500 | 7.35/10 | 60 | 56 | 52 | 45 | 37 | ||||||||
We have immense pleasured to take this opportunity to introduce ourselves to you. We are registered company namely CROSSWORD AGRO INDUSTRIES, based in Rajkot, (India)
the leading manufacturer & exporter of Agricultural Diesel Engines, Corn Grinding Mills and Spare Parts thereof. Over 1,50,000 NISSAN Brand DIESEL ENGINE holders outside India in NIGERIA, GHANA, SUDAN, EGYPT, IRAN , IRAQ, MOROCCO, SYRIA, JORDAN and other countries are completely satisfied with our products and services since last 2 Decades.
With applied experience of more than 2 decades, we offer a wide range of products for Prime Mover category which includes Lister (Slow Speed) / Petter ( High Speed) type Diesel Engines from 3.5HP to 25HP in various variants.
We are also the manufacturer of 1A, 2A and 11A Corn Grinding Mills, Flour Mills and Spares parts thereof which are being used for CORN GRINDING and grinding of other food grains. Some of the other products we offer are RICE Huller, Maize Huller, Centrifugal Water Pumps, PVC Hose Pipes etc and deal in all other items use for Agricultural Purpose.
Contact ways:-
Deep Bhuva
Crossword Agro Industies
+919427214438
Send Inquiry to This Supplier
