Petter Type Diesel Engine 5HP 1500 RPM in Turkey

Petter Type Diesel Engine 5HP 1500 RPM in Turkey photo-1

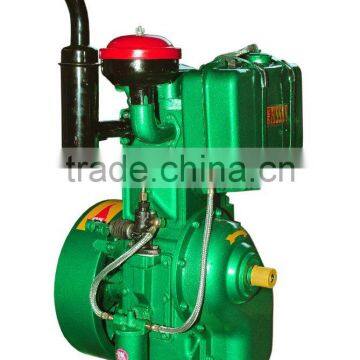

Petter Type Diesel Engine 5HP 1500 RPM in Turkey photo-2
US$ 320 - 370 MOQ: 40 Pieces
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Agricultural prime mover
Fuel:
Gasoline
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Indian Seaport
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Usage Other, Agricultural prime mover
Fuel Gasoline
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Water-cooled
Start Other
Place of Origin Gujarat, India
Brand Name Atmak
Model Number Petter type 5HP 1500 RPM
Dimension(L*W*H) Standard
Weight 163 kg
Certification ISO9001:2008
Warranty Spare Parts
After-sales Service Provided No overseas service provided
Product Description



Specification:-
Product :- Petter Type Diesel Engine 6.5HP 1500 RPM water cool for sale

Engine type :- Brass busing / Tapper roller bearing

Cooling type :- water cooled or air cooled

Horse power :- 3Hp to 20Hp

RPM :- 1500

No. of cylinder :- 1 or 2



Variations in petter engines:-

1)  Petter Type 8hp 1500rpm, Water –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine/Coupled With 4x4 Split Casing Centrifugal Pump Mounted on Trolley

2) Petter Type 7.5hp 1500rpm, Water –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine/Coupled With 4x4 Split Casing Centrifugal Pump Mounted on Trolley

3) Petter Type 10hp 1500rpm, Water –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine/Coupled With 4x4 Split Casing Centrifugal Pump Mounted on Trolley

4) Petter Type 8hp 1500rpm, Air –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine/Coupled With 4x4 Split Casing Centrifugal Pump Mounted on Trolley

5) Petter Type 7.5hp 1500rpm, Air –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine/Coupled With 4x4 Split Casing Centrifugal Pump Mounted on Trolley

6) Petter Type 10hp 1500rpm, Air –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine/Coupled With 4x4 Split Casing Centrifugal Pump Mounted on Trolley

7) Petter Type 7.5hp 1500rpm, Air –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine

8) Petter Type 8hp 1500rpm, Air –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine

9) Petter Type 10hp 1500rpm, Air –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine







Petter Type 5hp 1500rpm, Water –Cool, Tapper Roller Bearing Type, Plunger Oil Pump, Big Gear Cover (Casting) Diesel Engine/Coupled With 4x4 Split Casing Centrifugal Pump Mounted on Trolley.





Petter type Watr Cool







Engine Type



MI-5W

MI6.5W

MI-75W

MI 8W

MI-10W

MI-12.5W

Rated Power (as per

IS:11170)

Kw/Bhp

3.7/5.0

4.8/6.5

5.5/7.5

5.9/8.0

7.35/

10.0

9.2/12.5



Rated Speed

RPM

1500



1500

1500

1500`

1500

1500

No.of Cylinder



One

One

One

One

One

One



Type Bearing



Brass

TRB

Brass/

TRB

TRB

Brass/

TRB

Brass/

TRB

Brass/

TRB

Bore

mm

80

85

87.5

95

102

114.3

Bore x Stroke



mm

110

110

110

110

116

116



Compression Ratio



1



16.5:1



17.9:1



15.9:1



15.6:1



16.6:1



15.7:1



Fuel Tank Capacity



Litre



9



9



9



9



9



9



Engine Bare Weight



Kg.



149



149



150



168



192/182



205/191



Gross Weight Packing



Kg.



205



205



205



225



250/235



260/248

Packing Case Size(LXWXH)



Cm

66x67

x89

66x67x

89

66x67x

89

66x67x

89

66x67x

89

66x67x

89

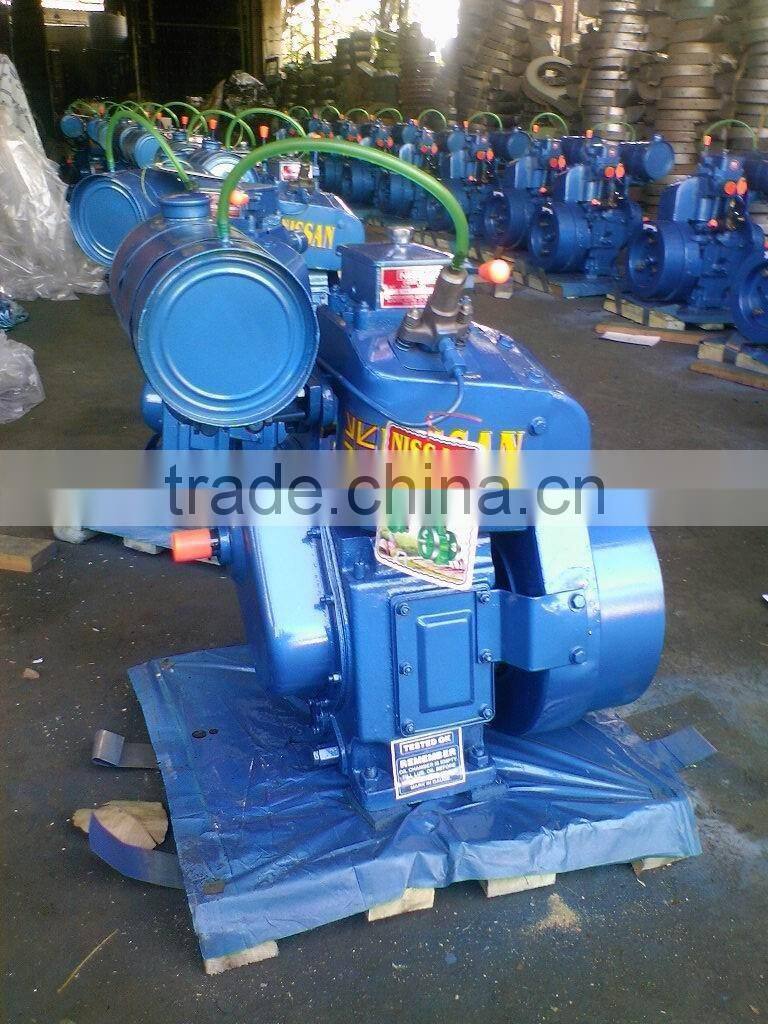

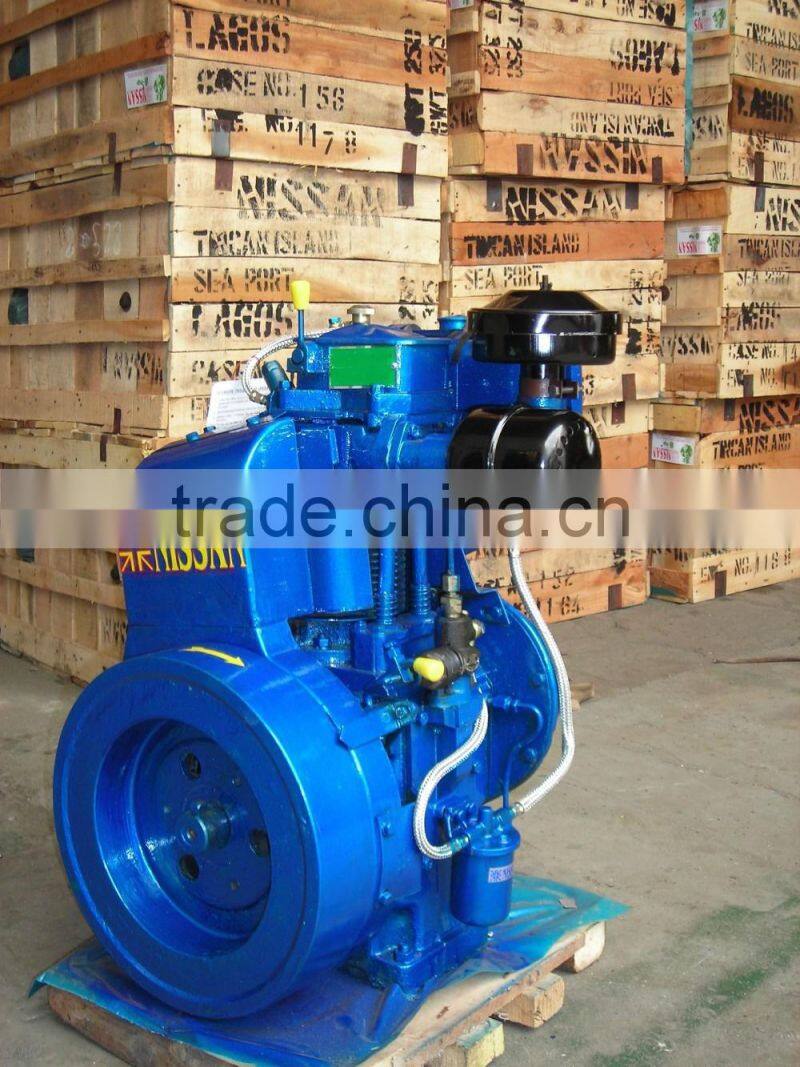

Petter Type Diesel Engine 5HP 1500 RPM in turkey












 Petter Type Diesel Engine 5HP 1500 RPM in turkeyPetter Type Diesel Engine 5HP 1500 RPM in turkey





Packaging & Shipping

 As per standard export wooden cases.
