Home > Industrial Equipment & Components > Engine & Part > Engine > DIESEL ENGINE

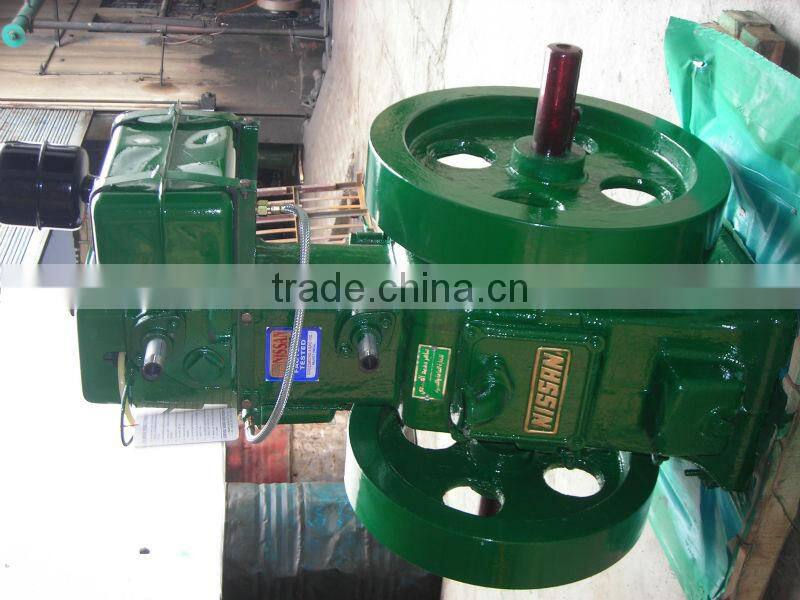

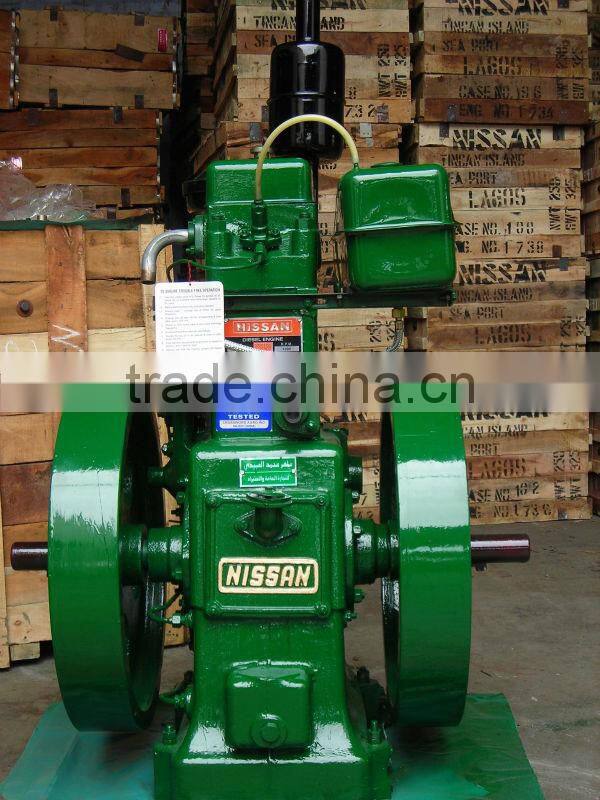

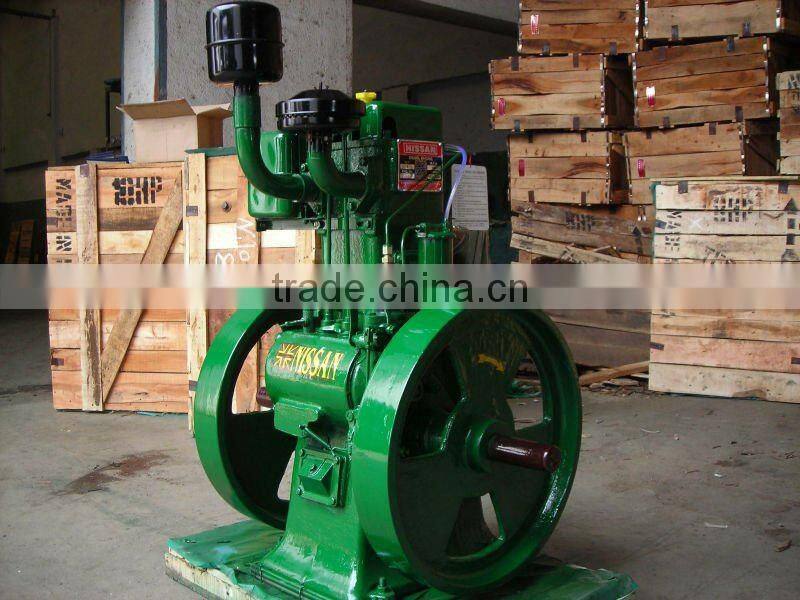

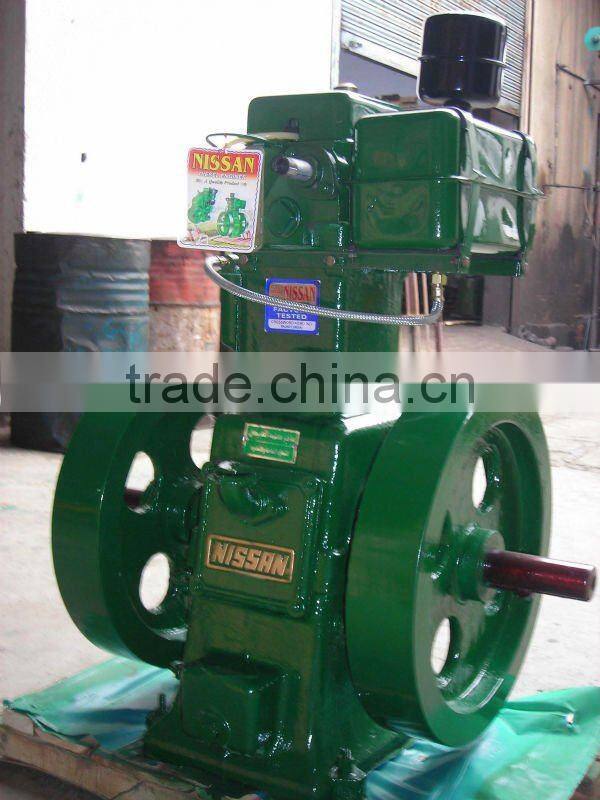

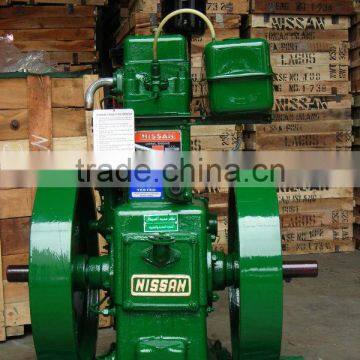

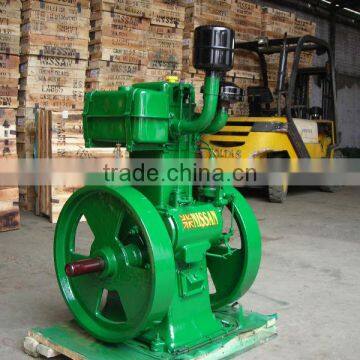

DIESEL ENGINE

Name: DIESEL ENGINE
Brand: NISSAN
SKU: 141450908
Availability: InStock

Crossword Agro Industries

Negotiable MOQ: 60 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Usage:

Other, Agricultural / Prime Mover

Fuel:

Diesel

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

MUNDRA(INDIA)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Usage Other, Agricultural / Prime Mover

Fuel Diesel

Stroke Other

Cylinder Single Cylinder

Cold Style Other, Water-cooled

Start Other, Hand Start

Place of Origin Gujarat, India

Brand Name NISSAN

Model Number Wide Range of Diesel Engines

Certification ISO 9001-2008

Specifications

Lister Type Diesel Engines
Water Cooled Diesel Engine,
Single & Double cylinder,
Taper Roller Bearing & Bush Type

DIESEL ENGINE SPECIFIACTION:

Lister Type Diesel Engine

Engine Type	MI-6	MI-8	MI-10	MI-12	MI-14	MI-16
POWER H.P./Kw.	6/4.4	8/5.9	10/7.35	12/8.8	14/10.3	16/11.77
SPEED R.P.M.	660	850	1000	1000	1000	1000
NO. OF CYLINDER	1	1	1	1	1	1
BORE mm	114.3	114.3	120	127	127	130
STROKE mm	139.7	139.7	139.7	139.7	139.7	139.7
COMPRESSION RATIO	16.01	16.01	16.01	17.01	16.01	15.5:1
DISPLACEMENT c.m	1334	1334	1470	1768	1768	1853
BARE WEIGHT OF ENGINE (Approx) Kgs.	280	280	290	385	385	395
GROSS WEIGHT OF ENGINE (Approx) Kgs.	395	395	405	520	520	530
PACKED CASE SIZE: L x Wx H mm	940x 700x 1040	940x 700x 1040	940x 700x 1040	1070x 700x 1145	1070x 700x 1145	1070x 700x 1145

Petter type Aircool

Engine Type		MI-5A	MI6.5A	MI-7A	MI 7.6A	MI-10A
Rated Power (as per IS:11170)	Kw/Bhp	3.7/5.0	4.8/6.5	5.1/7.0	5.5/7.5	7.35/ 10.0
Rated Speed	RPM	1500	1500	1500	1500`	1500
No.of Cylinder		One	One	One	One	One
Type Bearing		TRB	TRB	TRB	Brass/ TRB	Brass/ TRB
Bore	mm	80	85	87.5	95	102
Stroke	mm	110	110	110	110	116
Compression Ratio		16.5:1	17.9:1	15.9:1	15.6:1	16.6:1
Fuel Tank Capacity	Litre	9	9	9	9	9
Engine Bare Weight	Kg.	163	163	163	184/ 168	197/ 198
Gross Weight Packing	Kg.	220	220	220	240/ 225	250/ 235
Packing Case Size(LXWXH)	Cm	66x69x 91.5	66x69 x 91.5	66x69 x 91.5	66x69 91.5	66x69x 91.5

Pettr type Water Cool

Engine Type

MI-5W

MI6.5W

MI-75W

MI 8W

MI-10W

MI-12.5W

Rated Power (as per

IS:11170)

Kw/Bhp

3.7/5.0

4.8/6.5

5.5/7.5

5.9/8.0

7.35/

10.0

9.2/12.5

Rated Speed

RPM

1500

1500`

1500

No.of Cylinder

One

Type Bearing

Brass

TRB

Brass/

TRB

Brass/

TRB

Brass/

TRB

Brass/

TRB

Bore

87.5

102

114.3

Bore x Stroke

110

116

Compression Ratio

16.5:1

17.9:1

15.9:1

15.6:1

16.6:1

15.7:1

Fuel Tank Capacity

Litre

Engine Bare Weight

Kg.

149

150

168

192/182

205/191

Gross Weight Packing

Kg.

205

225

250/235

260/248

Packing Case Size(LXWXH)

66x67

x89

66x67x

Sr.No.	Lister type 20 hp double cylinder
Description	Indirect fuel injection system ,Bush bearing type fitted with MICO fuel injection system
K.W.	14.7
R.P.M	1000
Bore Diameter (mm)	120
Stroke (mm)	139.7
Cubic Capacity	1580
Net Weight (kg)	490
Gross Weight (kg)	635
Packing Size (MM)	11957371170
