Ultrasonic Tablecloth Edge Lace Making Machine

Ultrasonic Tablecloth Edge Lace Making Machine photo-1
Ultrasonic Tablecloth Edge Lace Making Machine photo-2
Ultrasonic Tablecloth Edge Lace Making Machine photo-3
Ultrasonic Tablecloth Edge Lace Making Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Manual
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Manual
Place of Origin Jiangsu, China
Brand Name Shuangchao
Model Number CC-100
Max Sewing Speed 0-20 meter/min
Max Sewing Thickness 0-2 mm
Voltage 220V/110V
Power(W) 2500W
Dimension(L*W*H) 1300x 500x 1500 mm
Weight 140Kg
Certification CE
Warranty One year
After-sales Service Provided Overseas service center available



Ultrasonic Tablecloth Edge Lace Making Machine







Product Description

Ultrasonic Tablecloth Edge Lace Making Machine



Parameters:

Output power : 2500W
Power Input : 220V/50Hz
Output frequency : 15KHz
Working temperature : -10-28C
Working speed : 0-20m/min
Equipped pattern mould : 0-100 mm
Size of machine ( L * W * H ) :1300*650*1500 mm
Weight of machine : 140 Kg

 Characteristics of Ultrasonic Lace Making Machine:
1. Horn fixed suspension structure;
2. Double-motors speed adjustment system;
3. Pneumatic roller lifting system;
4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.

Functions:
1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.


Suitable material of Ultrasonic Lace Making Machine:
All kinds of artificial leather and fabric, non woven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyester, PVC,PC, PU,TPU, PE, PP, PS, etc.

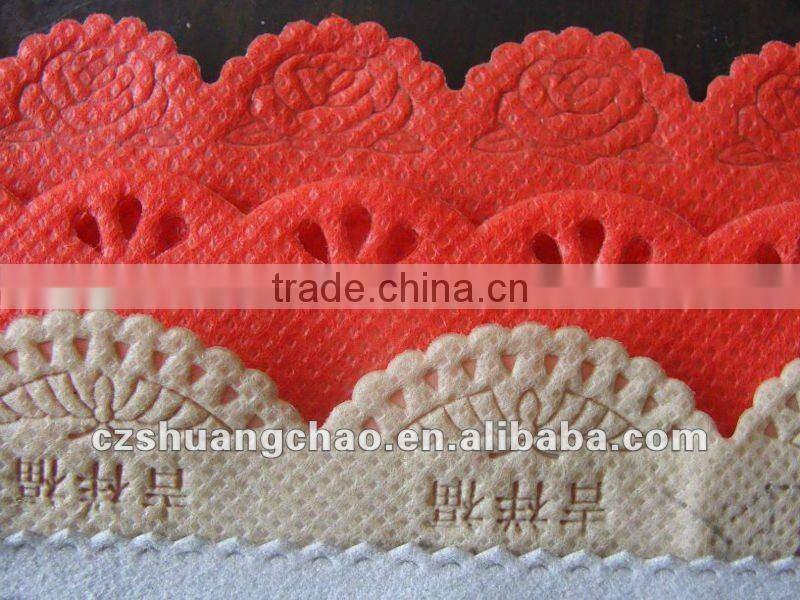

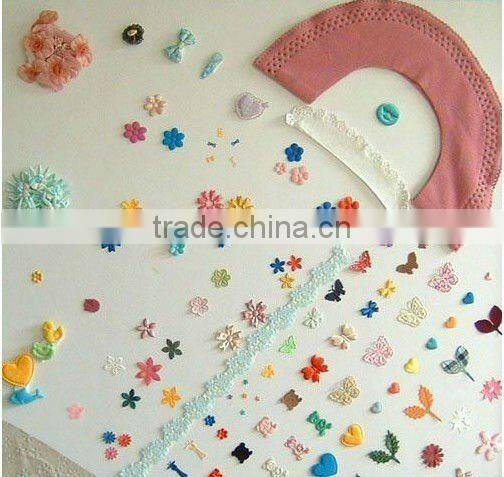

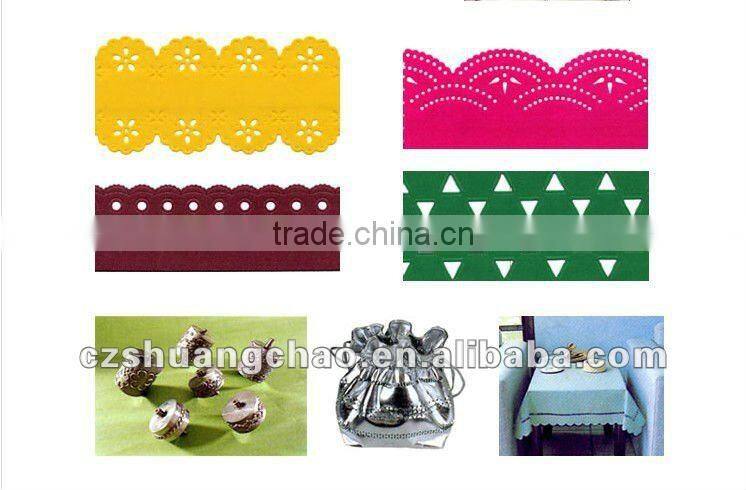

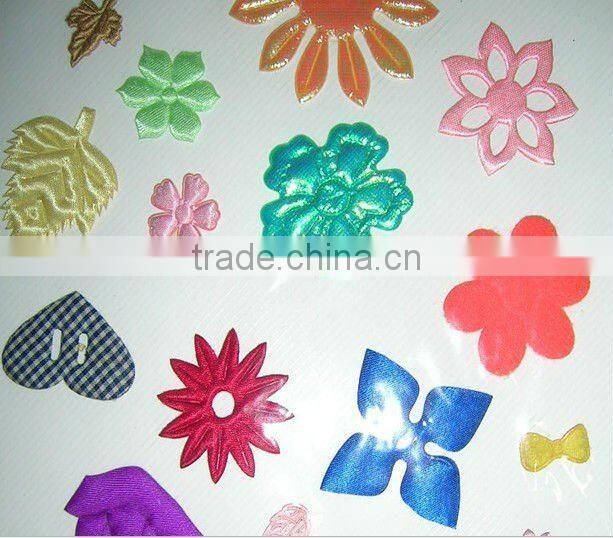

Samples of Ultrasonic Lace Making Machine :





 Ultrasonic Tablecloth Edge Lace Making MachineUltrasonic Tablecloth Edge Lace Making MachineUltrasonic Tablecloth Edge Lace Making Machine



Our Services



1. customer service guarantee: free samples, free installation, quality tracking, 24 hours, one year free warranty, life-long maintenance.
2. Engineers available to service machinery overseas.
Please feel free to contact us through Trade Manager or send inquiry to us at any time
Mobile: +86-13665110281
E-mail: meizhidian @hotmail.com
Whatsapp/Wechat : +86-13665110281
Skype: worldyifeng



Packaging & Shipping

Ultrasonic Lace Making Machine

Packaging Detail: Standard Seaworthy export plywood packing
Shipping Detail: in 5 days after your confirmed payment
