Basic configuration
1. The new computer intelligent ultrasonic generator;
2. 20 KHz ultrasonic transducer device;
3. The mould for synchronization function;
4. Two motor speed control system;
5. Manual (or equipped with pneumatic) flowers die lifting system;
6. Multi-function flowers die bracket and level fine-tuning institutions.
This machine characteristics
1. The built-in computer chips, multi-channel ultrasonic protection system to ensure the safe and stable operation of the host;
2. Super power output, medium has three gears adjustable power, to adapt to the different capable person is qualitative, the thickness of the welding and cutting requirements;
3. To be automatic after frequency system and the ultrasonic soft start technology of
application, make the machine performance to the international level;
4. Bottom-formwork rotation function make chassis wear uniform, prolong service life and the improvement of the machining quality;
5. Take shape type is diversiform, can according to the customer need to provide design;
6. The running speed of the sewing machine for ordinary four times, simple operation.
function
1. Trimming: unilateral lines or curves resection, and dissolve edge processing, make the smooth edges smooth not coarse, no flash;
2. Suture: two layer or multi-layer fabric stitched together, wireless no needle sewing and replace welding strength;
3. The screen hole: cut out all kinds of designs the holes, and do the melting processing;
4. The article open: a single or multiple of materials and cut open, and do the melting processing without flash;
5. Molding: at the same time excision, suture, embossing, make the product shape once.
Technology parameters
Work power
220 V ± 5 V 50/60 HZ 6 A
Input power
2000-2500 W (three gears adjustable)
Output frequency
20 KHZ
Operation speed
0-20 m/min
Flowers die size
Width: 0-100 mm;
Size (long * wide*high)
1200 * 600 * 1200 mm
Net weight
110 KG
Applicable materials
All kinds of chemical fiber cloth, all kinds of leather, non-woven fabrics, spray adhesive cotton, thermoplastic thin films, chemical pieces of plastic, etc.

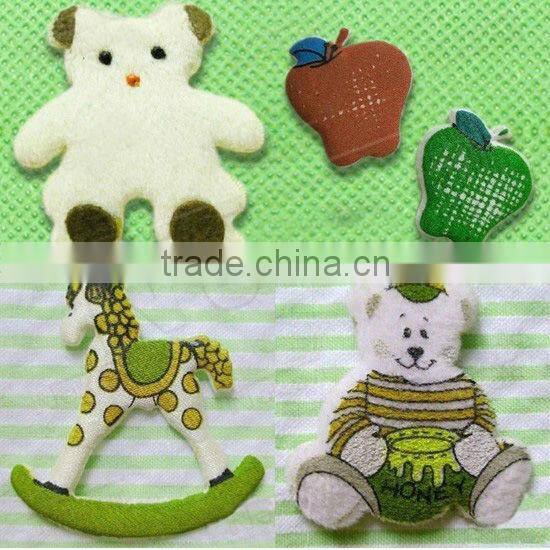

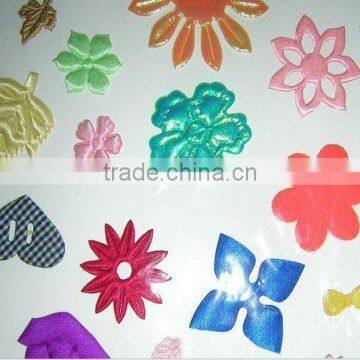

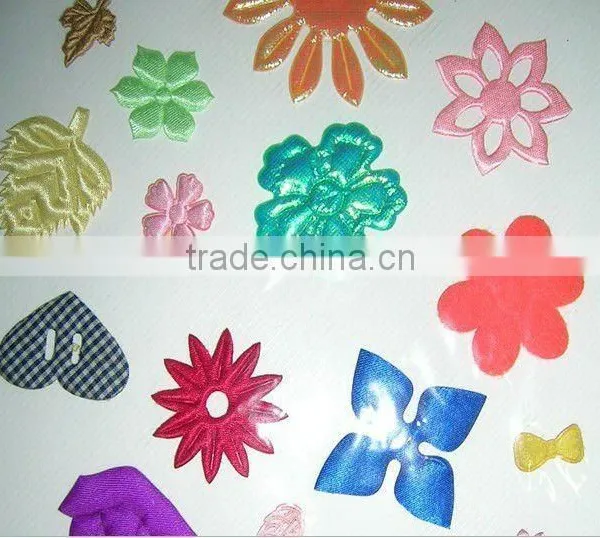

Application examples
Suitable for making lace dress, lace, decorative products, handkerchief, tablecloth, curtain,
bedspread, pillowcase, bedding bag, tents, raincoat, disposable surgical garment cap, non-woven mask, nonwoven, etc
