CSU-593 China ultrasonic multi-purpose sewing machine

Name: CSU-593 China ultrasonic multi-purpose sewing machine
Brand: Shuangchao
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shanghai or Shenzhen
Payment Terms:T/T D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Automatic Grade:	Manual	Place of Origin:	Jiangsu, China
Brand Name:	Shuangchao	Model Number:	CC-60	Max Sewing Speed:	0-20 meter/min
Max Sewing Thickness:	0-2mm	Voltage:	220V/110V	Power(W):	2000W
Dimension(LWH):	1300x 500x 1500 mm	Weight:	130Kg	Certification:	CE
Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

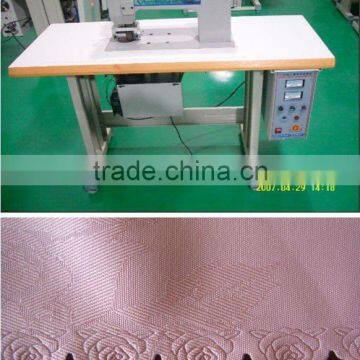

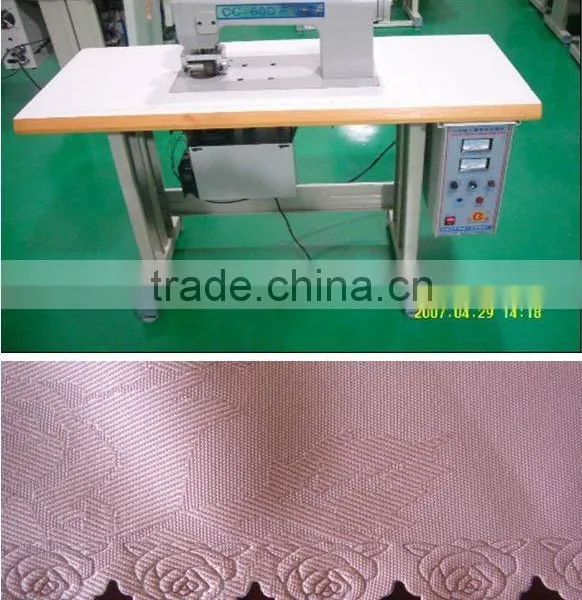

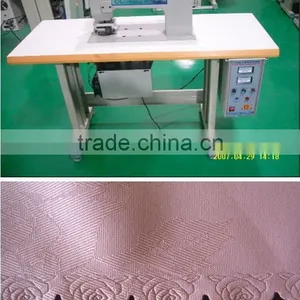

Ultrasonic sewing machine

Output power : 2000W

Power Input : 220V/50Hz

Output frequency : 20KHz

Working temperature : -10-28C

Working speed : 0-20m/min

Equipped pattern mould : 0-60 mm

Size of machine ( L * W * H ) :1300 * 650 * 1500 mm

Weight of machine : 130 Kg

Ultrasonic fabric sealing and cutting machine
Basic components
1. New type PC intellectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;
3. Bottom mould fixed suspension structure;
4. Single-motor speed adjustment system;
5. Manual roller lifting system;
6. Double-barreled framework and heavy support board.

Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials and thicknesses;
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;
4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.

Functions

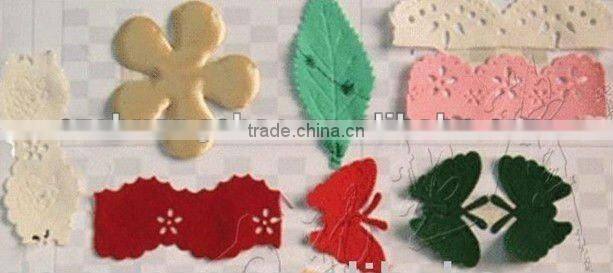

1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.
Suitable material:
All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, ABC, PC, PVC, PE, PP, PS, etc.

Application:
Apply to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.
