welcome to shuangchao company ,we produce all kinds of ultrasonic machines and specialized in this field for more than 10years
First,function introduction

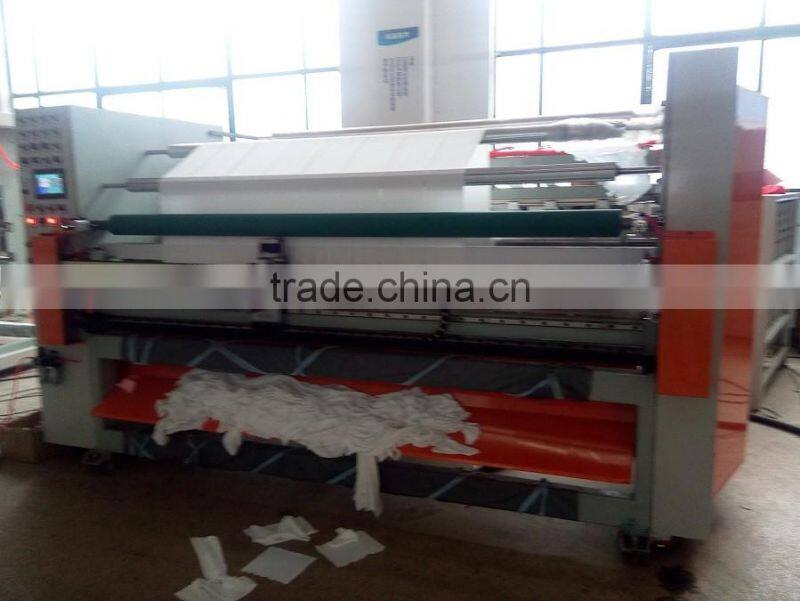

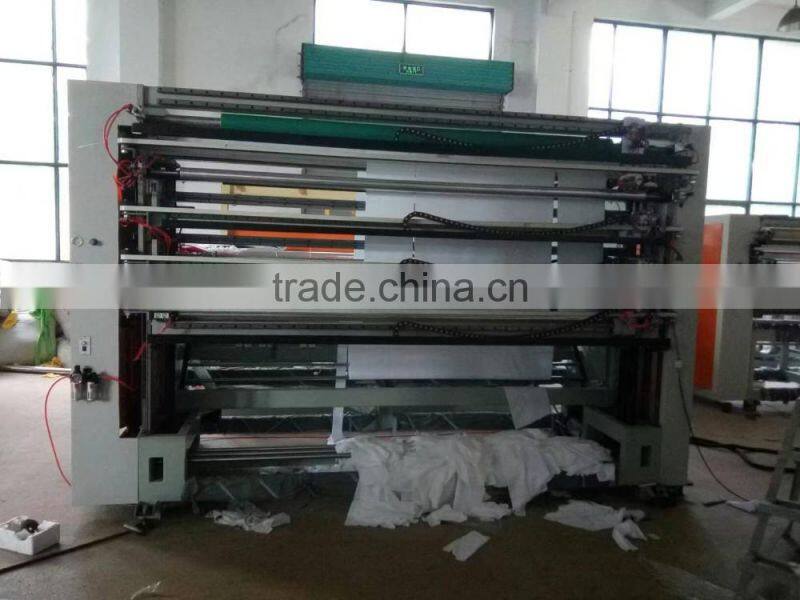

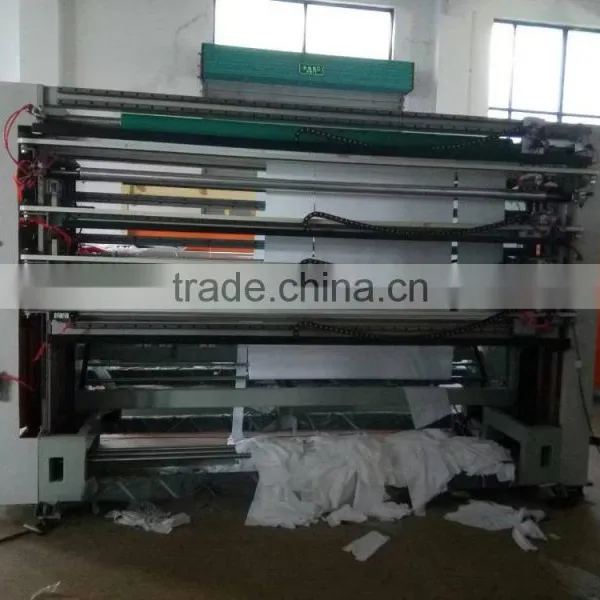

This machine is a set of cutting, cross-cutting as one of the automation equipment, the use of ultrasonic cutting products to shape. High technical content, greatly reducing the labor, high efficiency. The machine uses microcomputer operating system, with a touch screen display, PLC program control system servo drive system. Automatic fixed length, automatic counting, automatic alarm, automatic cross-cut embossing, automatic discharge correction system.
Second, the operation process
Unloading → Deviation → Cloth Sheeting → Ultrasonic Cutting → Traction Roll Angle → Pressure Control → Fixed Length Feeding Roll Angle → Cross Cutting Embossing → Finished Product (Winding)
Third, the operation method
First, the roll fabric on the release rack, stretch fabric, through the roller angle photoelectric eye to the cutting die
Position, open the feed switch, and then the cylinder switch (cylinder 1 - cylinder 7) closed, so that the mold to keep up
Mold and the distance between the welding head,
1, open the three power switch
2, connected to the trachea to ensure that the trachea pressure gauge at 0.6 kg, the total for the sub-cut
Pressure adjustment, the middle of the pressure
Rod adjustment, under the cross-section pressure gauge
3, the volume of cloth on the cloth material on the shelves, fixed to pull the fabric
4, the fabric through the roll angle through the photoelectric eye to ensure that the photoelectric eye is effective, the cloth from the main frame of the roller angle around to the ultrasonic mold and then pull down the following 20-30 cm, while ensuring that the fabric roll over.
5, first open the cylinder, and then open (cylinder 1 - cylinder 7) switch to the right under the cylinder, the left-liter, and then open the pressure feed switch (roll angle) in the open state (right to open) Fabric to wear through.
6, check whether the fabric formation, discharge correction is working, and then open the cylinder to the right screw to the right.
7, open the ultrasonic switch, turn right to open.
8, open the fan switch, cooling ultrasonic welding head.

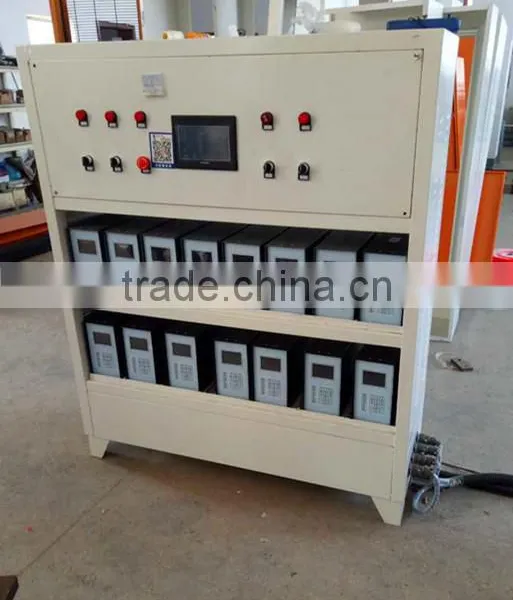

Fourth, touch-screen operating system

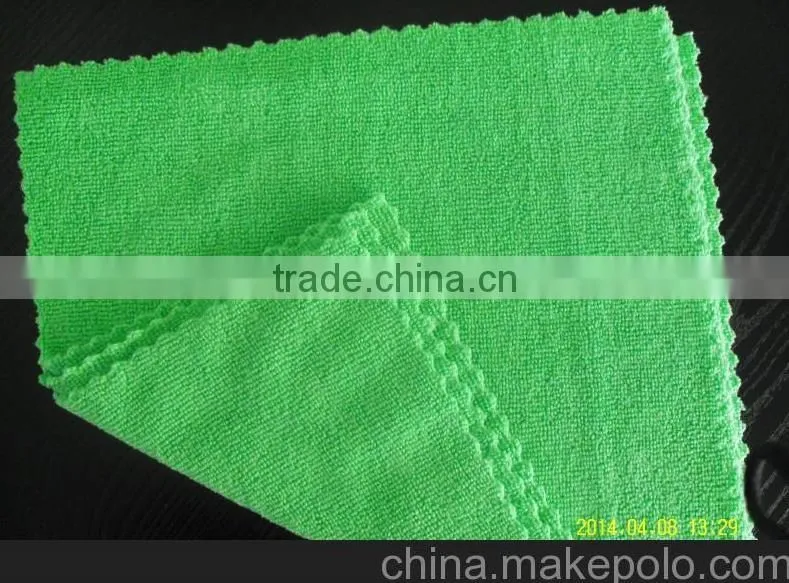

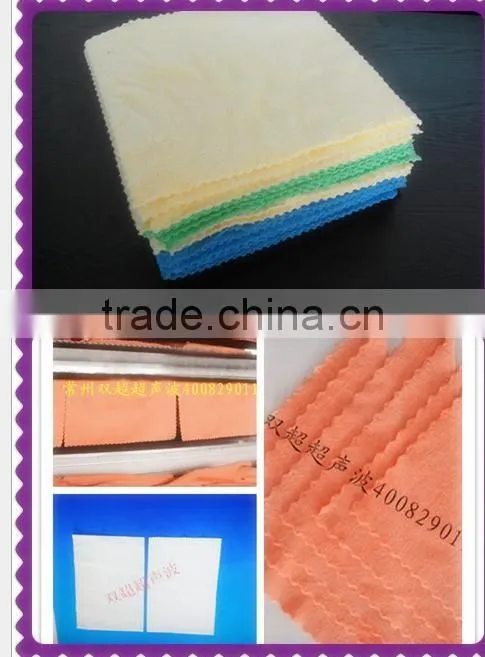

sample
contact us
my whats app/we chat :+8615051980696
regards
shelly
