Help CenterOasis Washing Trommel/ Mix Leaching Tank/Mineral Mixing Tank/Mineral Product Agitation Barrel/ Ore Slurrry Agitating Vessel
Related Products
Specifications
1.good quality and low price2.simple structure
nvenient maintain
4.long life
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599 ) production

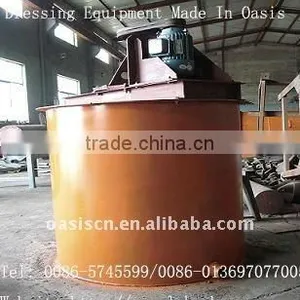

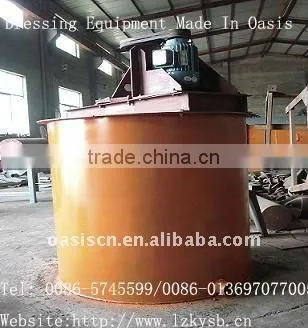

Agitating tank
The device is suitable for flotation, re-election, magnetic separation, etc. right concentration of not more than 35% and solid components of the slurry particle size of less than 1 mm to stir, but also can be used for flotation agents and other non-metallic minerals, mixing, so that mine suspended particles and in full access to the Pharmacy, mixing, in order to create conditions for sorting operations. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards
This series of stirred tank are the following: Agitating tank ,Lifting agitating tank,High concentration agitation tank, Hing efficiency agitation tank,Specifcatications of shemical agitation tank
Model | Uite | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
Diameter tank | mm | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
Heighe | mm | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
Volume tank | r/min | 150 | 240 | 240 | 310 | 400 | 550 | 630 | 700 | 1000 |
Impeller Diameter | m3
| 0.124 | 0.25 | 0.58 | 1.15 | 2.2 | 4.4 | 11.2 | 19.1 | 46 |
Impeller speed | t | 1000 | 530 | 530 | 492 | 320 | 230 | 230 | 210 | 121.6 |
Power | kw | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 30 |
Weighe | kg | 260 | 320 | 480 | 908 | 1280 | 1760 | 2700 | 18.5 | 8020 |
